ADJUSTMENTS
Looper Drive
Balancing the Position of the Looper Connecting Links

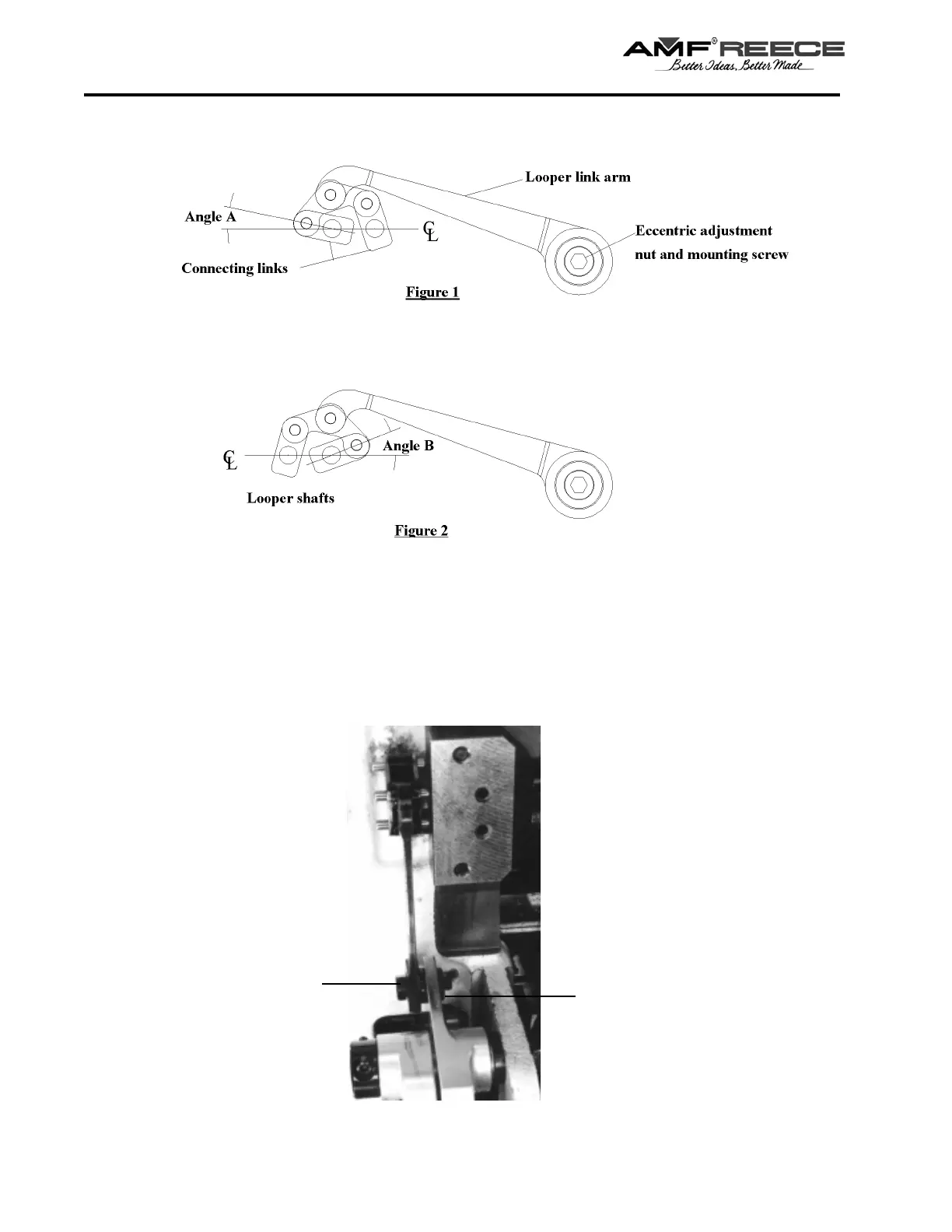

Observe the position of the connecting links at both ends of the looper link arm travel.
Angle A in Figure 1, must equal angle B in Figure 2, as illustrated.
Loosen the hex mounting screw and rotate the eccentric adjusting nut, as needed.
Tighten the adjusting nut.
Eccentric
adjusting nut
Hex screw
