Trimmer Hook Cylinder Stroke
WARNING! Ensure the machine air pressure is off.
Manually move the trimmer actuator to ensure the actuator arm does not touch the machine casting.
If the actuator arm does touch the machine casting:
Loosen the trimmer actuator bolt and lower the actuator arm away from the casting (clearance 1.5 mm),
lock the bolt.

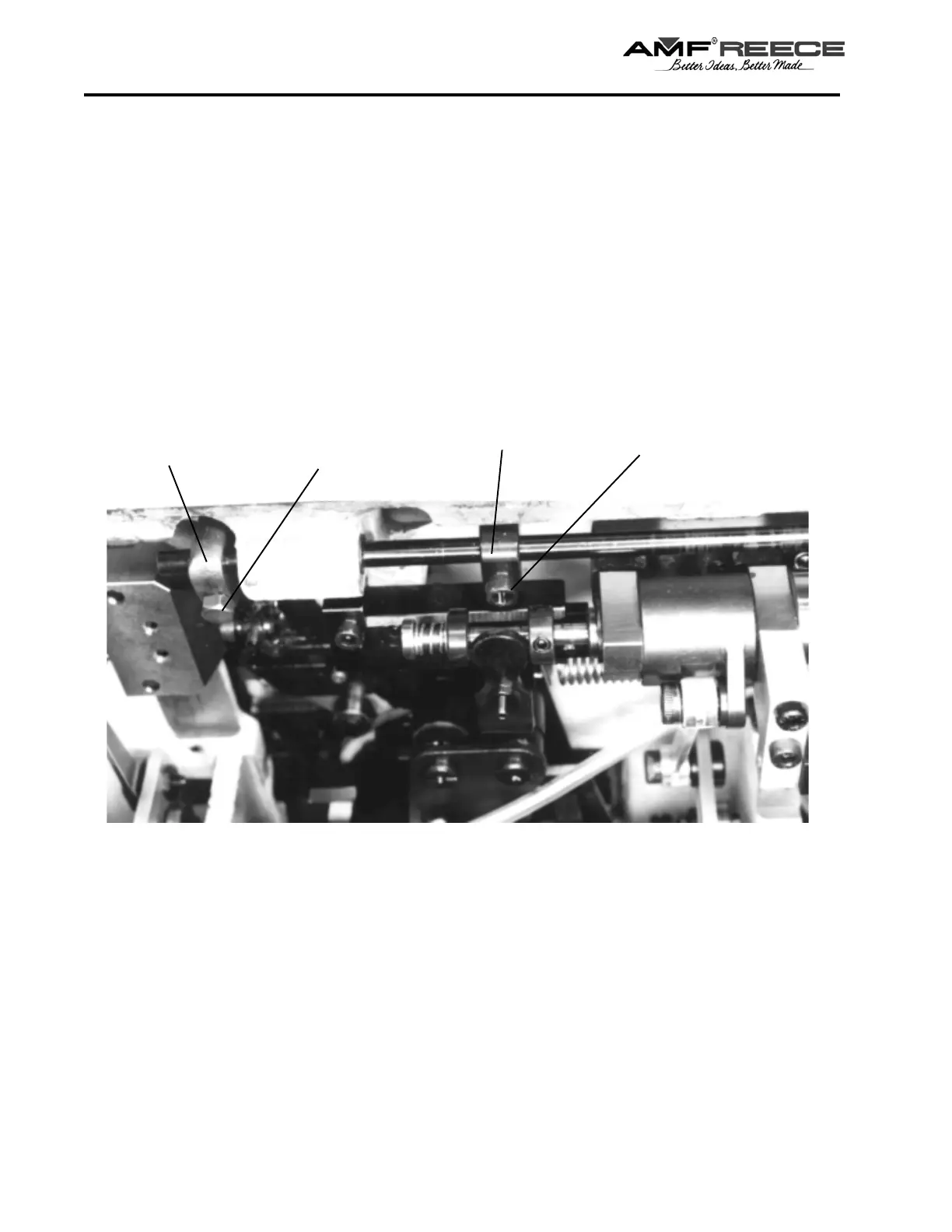

Trimmer actuator bolt
Trimmer actuator
Stop arm
Stop arm
allen screw
ADJUSTMENTS
