PRELIMINARY INSTRUCTIONS - BH MACHINE
First Bar
To obtain the first bar position:

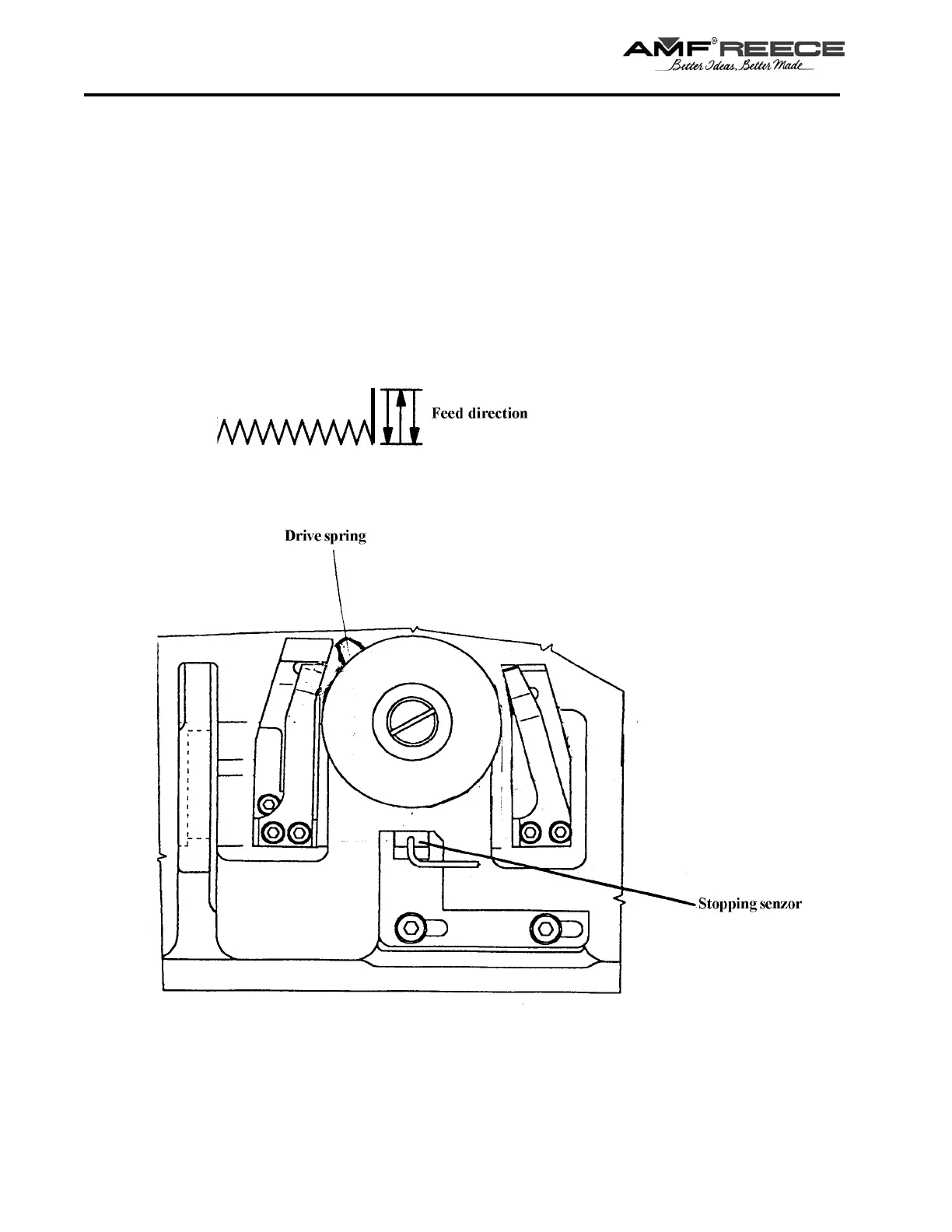

Complete several main shaft revolutions in the first row of stitches, position the shifter assembly to
the left, releasing the drive spring from the detent and engaging the spring with the drive hub. Two horizontal
bevel gears are not in interlock with vertical gear.
Rotate the handwheel and the machine produces five barring stitches, forming the first bar.
