OPERATOR INSTRUCTIONS
Buttonhole Length Change
Using the allen key provided, loosen the screw M4 beside the length gauge. Using the allen key as a pointer,
align the screw M4 with the correct buttonhole length indicated on the gauge.
Tighten the screw.
Note: When the buttonhole length changes, the knife also changes to correspond with the buttonhole
length, indicated on the gauge (for machine S-4000 BH).

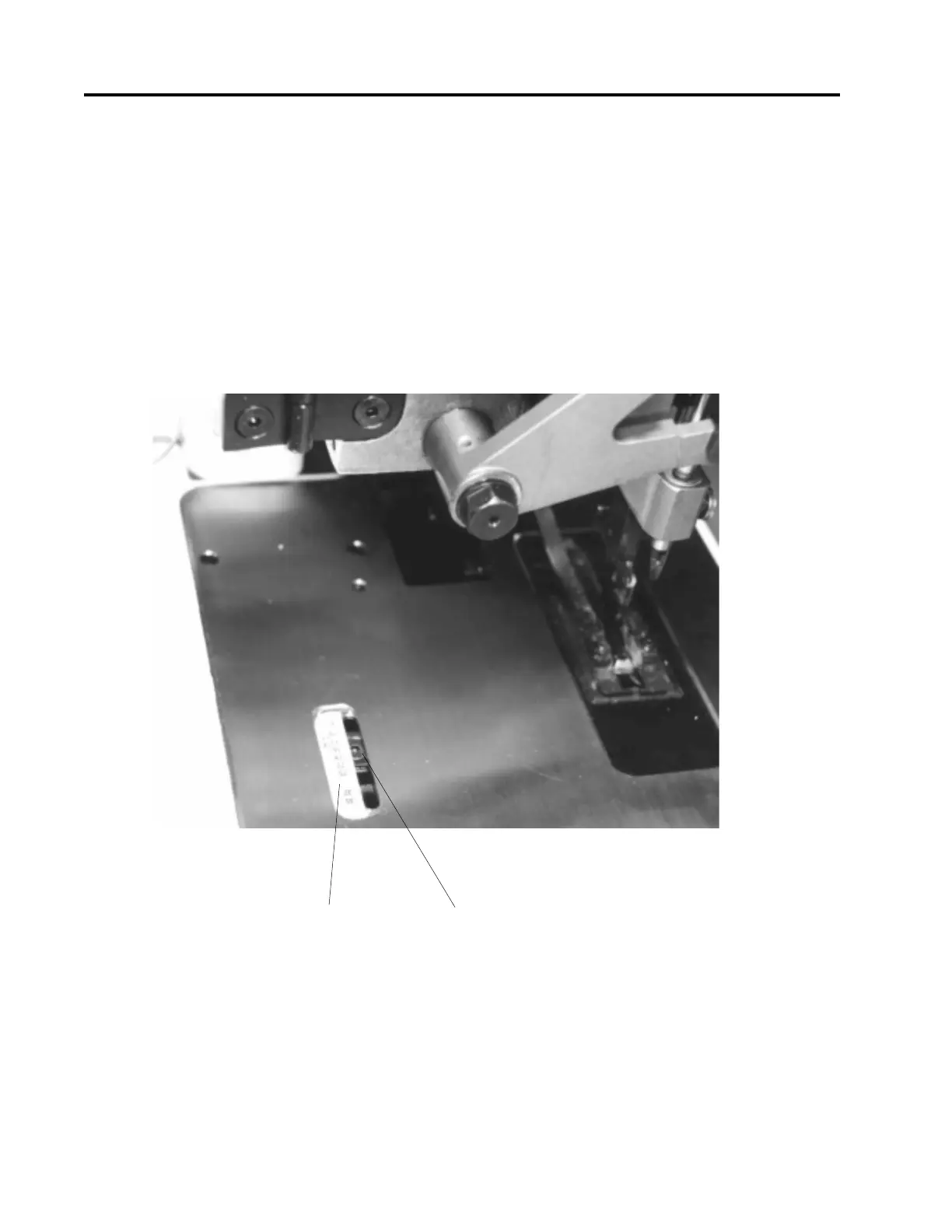

Length gauge
Screw M4
To Next Page
