ADJUSTMENTS
Barring
The proper adjustment ensures the correct clamp plate position during barring.

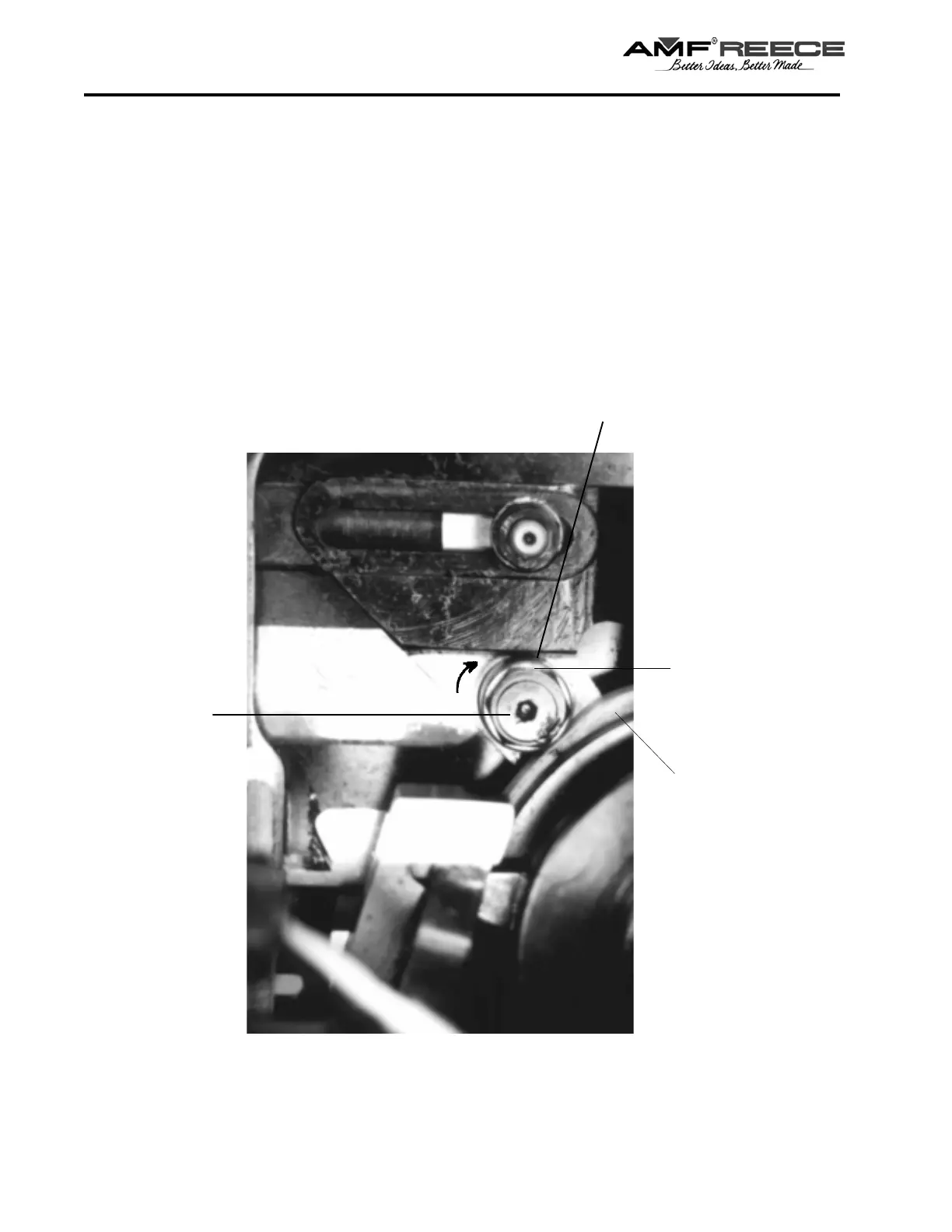

With the machine in the barring position, loosen the cap screw and adjust the barring eccentric nut
clockwise to obtain minimum clearance between the barring cam and roller on the barring eccentric.
Tighten the cap screw.
Note: Check correct adjustment of the barring cam and roller in barrings. When the clearance is too small,
barring cam can be damaged!
Barring
eccentric
nut
Flathead
screw
Roller
Barring cam
