ADJUSTMENTS

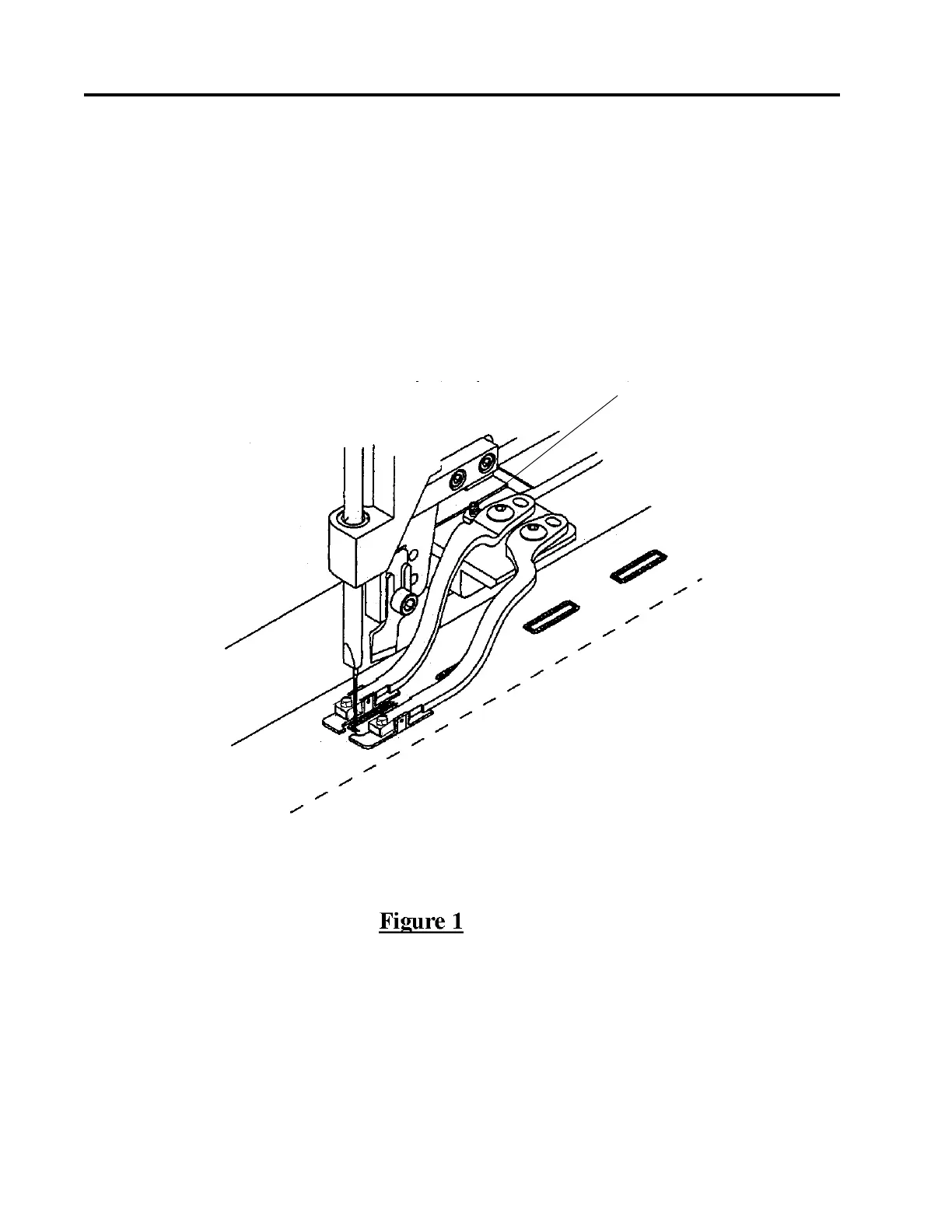

Clamp Height
Clamp height is correct when the needle, in the stop position, is slightly above the underside of the
clamp feet.
Loosen the adjusting screw nut and rotate the adjusting screw in or out, as needed.
Tighten the adjusting screw nut.
Adjusting screw
