AMF S-4000 - Second Row of Stitches; Second Bar

S-4000
1-21
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
PRELIMINARY INSTRUCTIONS - BH MACHINE

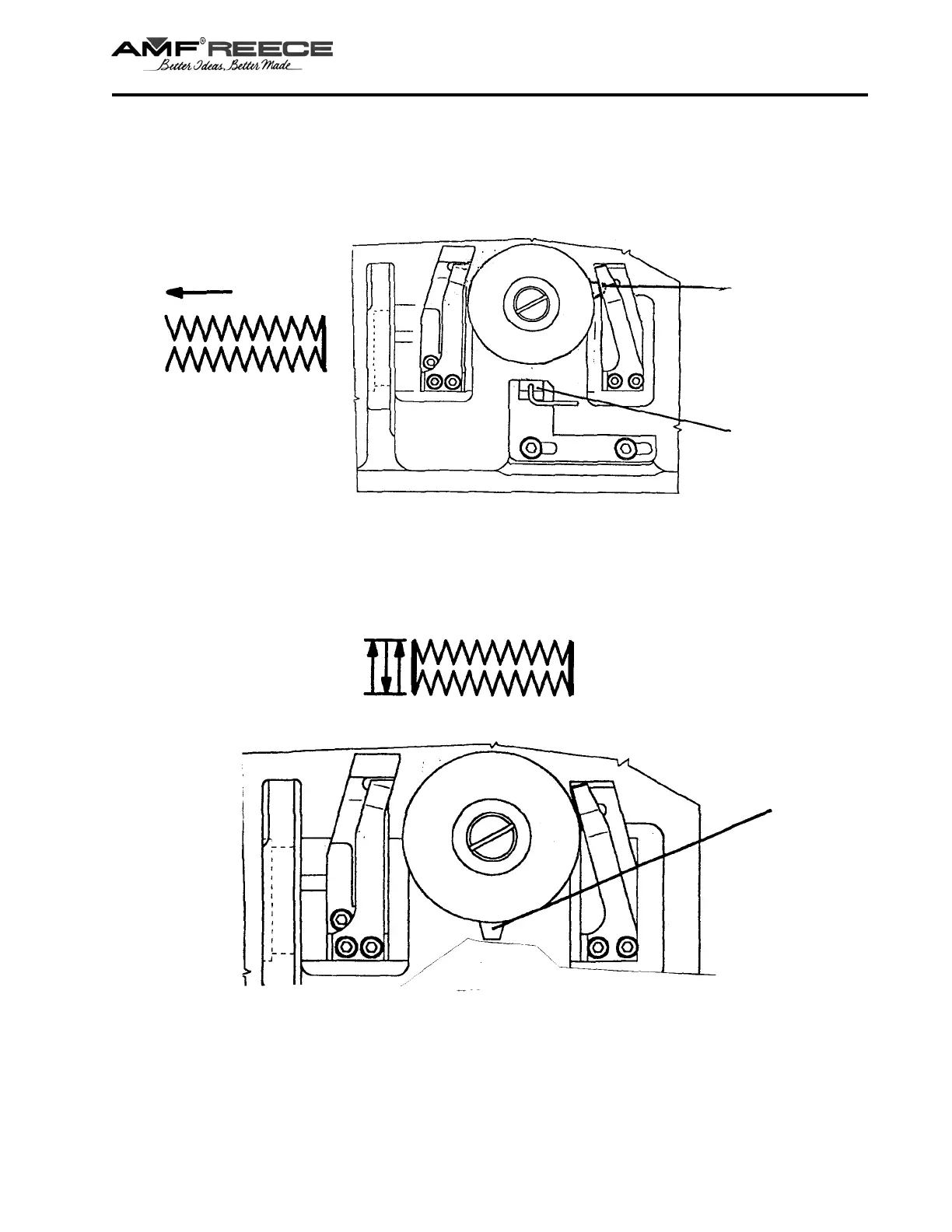

Second Row of Stitches
As the drive spring inserts to the stop of the right shifter arm, the spring is pressed down out of engagement
and into a detent. The first bar stops and engages the left bevel gear, reversing the feed direction for the
second row of stitches.
Second Bar
To obtain the second bar position, slide the shifter assembly to the right, releasing the drive spring from the
detent and engaging the spring with the drive hub.
Continued handwheel counterclockwise rotation, centralizes the feed, produces the second six barring
stitches, and prepares the machine to stop.
Feed
direction
Drive spring (BH)
Feed
direction
Drive spring (BH)
Stopping sensor
