S-4000
1-39
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
ADJUSTMENTS

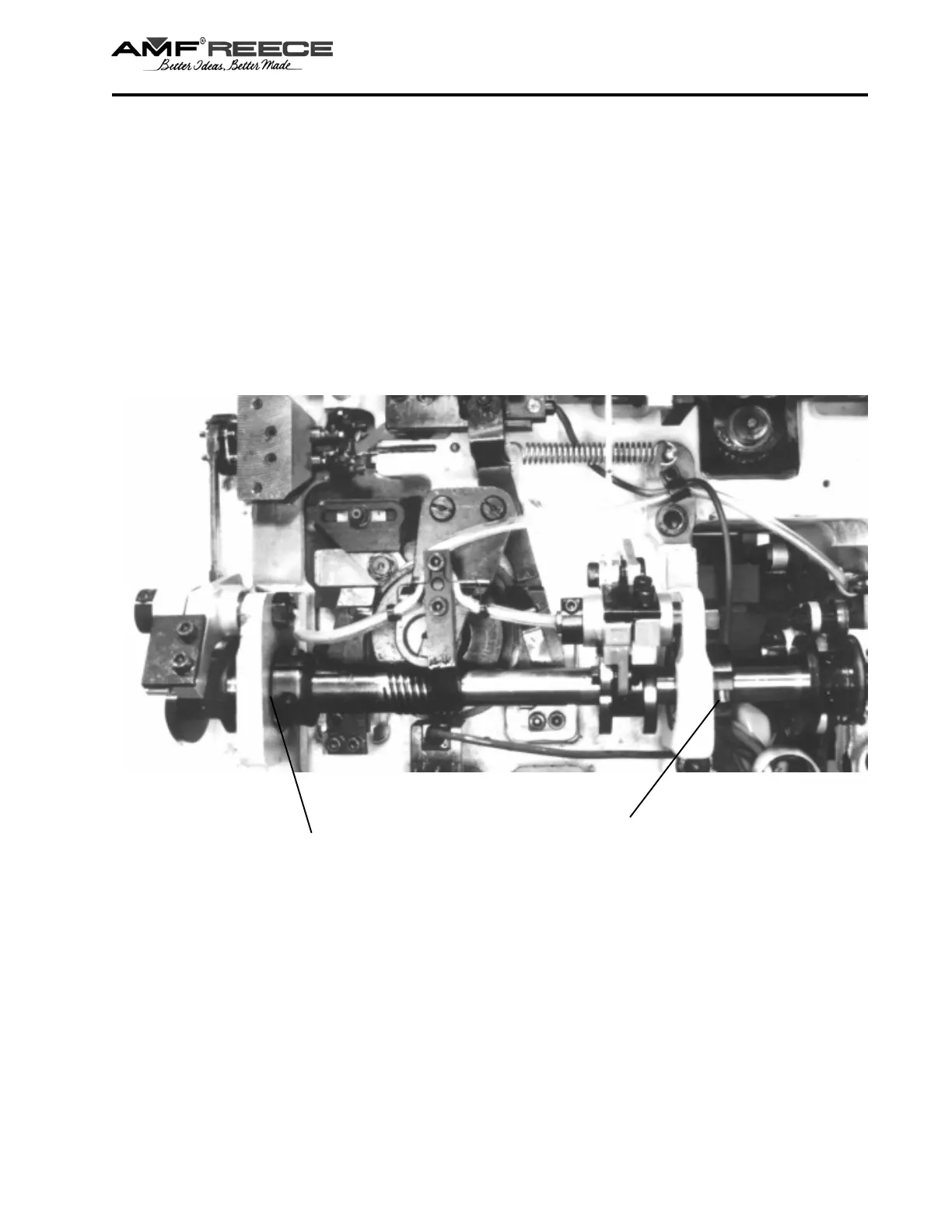

Main Shaft End Play Removal
Position the shaft to the right and ensure the retaining ring is contacting the bearing at the looper cam.
Loosen the clamp collar screw.
Push the shaft to the right and position the retaining ring to contact the bearing.
Push the clamp collar to the left to contact the bearing.
Tighten the clamp collar screw.
Ensure the shaft rotates freely.
Retaining ring
Clamp collar
