Machine Threading
WARNING! Press the red emergency stop push-button, located on top of the sewing head to
eliminate accidental starting of the machine. Ensure the red lamp flashes and the machine will not
start.

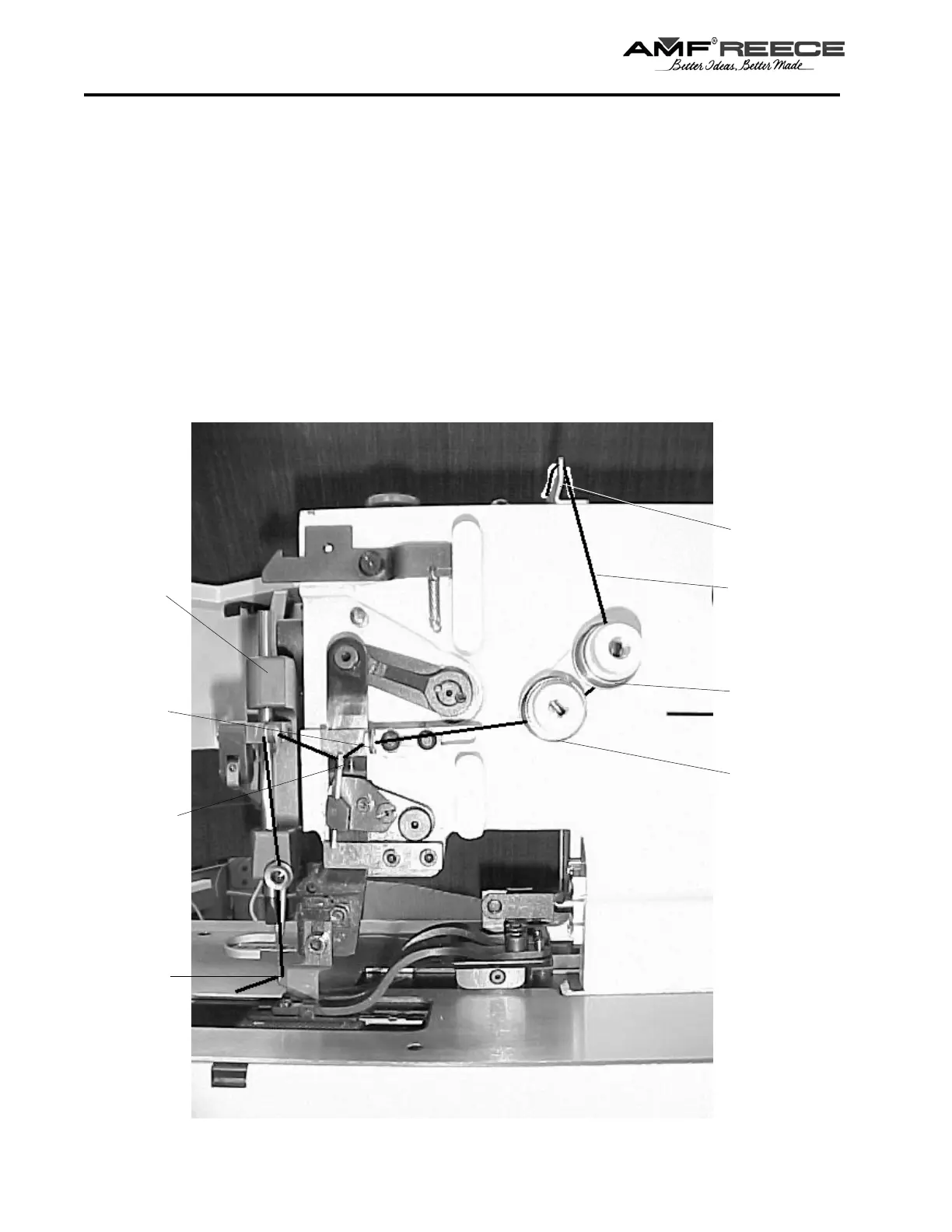

Thread the machine as illustrated. At first pull the thread through thread guide, then pull the thread between
barring tension discs, pull through the thread guide. Pull the thread between the tension discs and thread it
through needle eye.
To release the emergency stop, press the red emergency stop push-button and the green light will
activate, the machine is ready to sew.
OPERATOR INSTRUCTIONS
Thread guide
Thread
Barring tension
disk
Tension disk
Needle bar
thread guide
Thread guide
bracket
Take-up
Needle
