1-62
S-4000
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
ADJUSTMENTS
Barring Tension Release Sensor
Rotate the machine to the first barring position, the feed reversing cam will move to the center,
disengaging the feed.
Loosen the barring tension set screw and move the sensor until the sensor light activates, ensuring the
sensor is energized.
If the sensor will not activate:
Loosen the height set screw locking nut and adjust the length of the screw until the end of the screw
just activates the sensor.
Lock the height set screw locking nut.
Rotate the handwheel to seat the drive spring and engage the feed.
The sensor must deenergize and the light must deactivate.
Rotate the machine to the second barring position and ensure the cam follower moves to the center.
The sensor must deenergize and the light must deactivate.

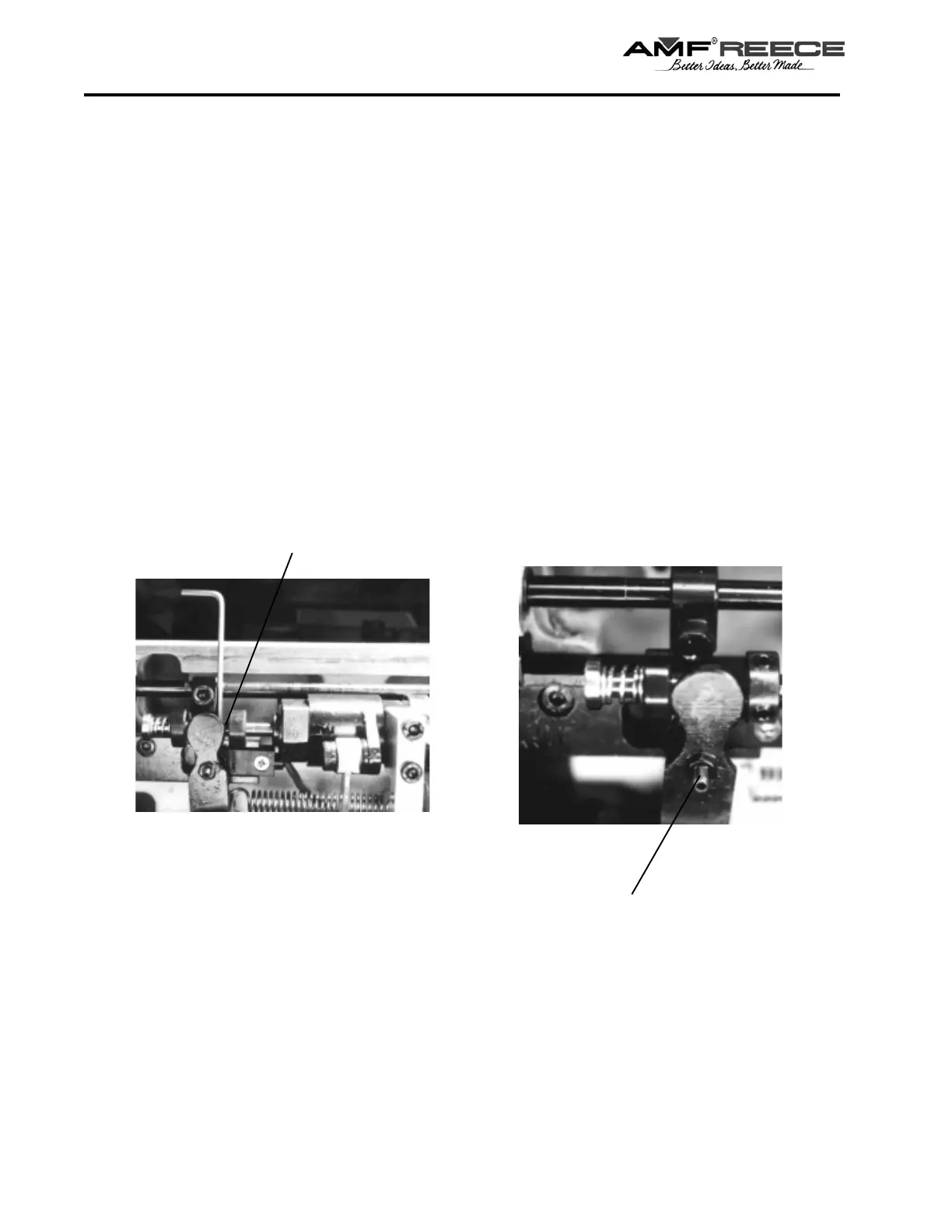

Sensor adjusting screw
Sensor height screw
