S-4000
1-51
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606

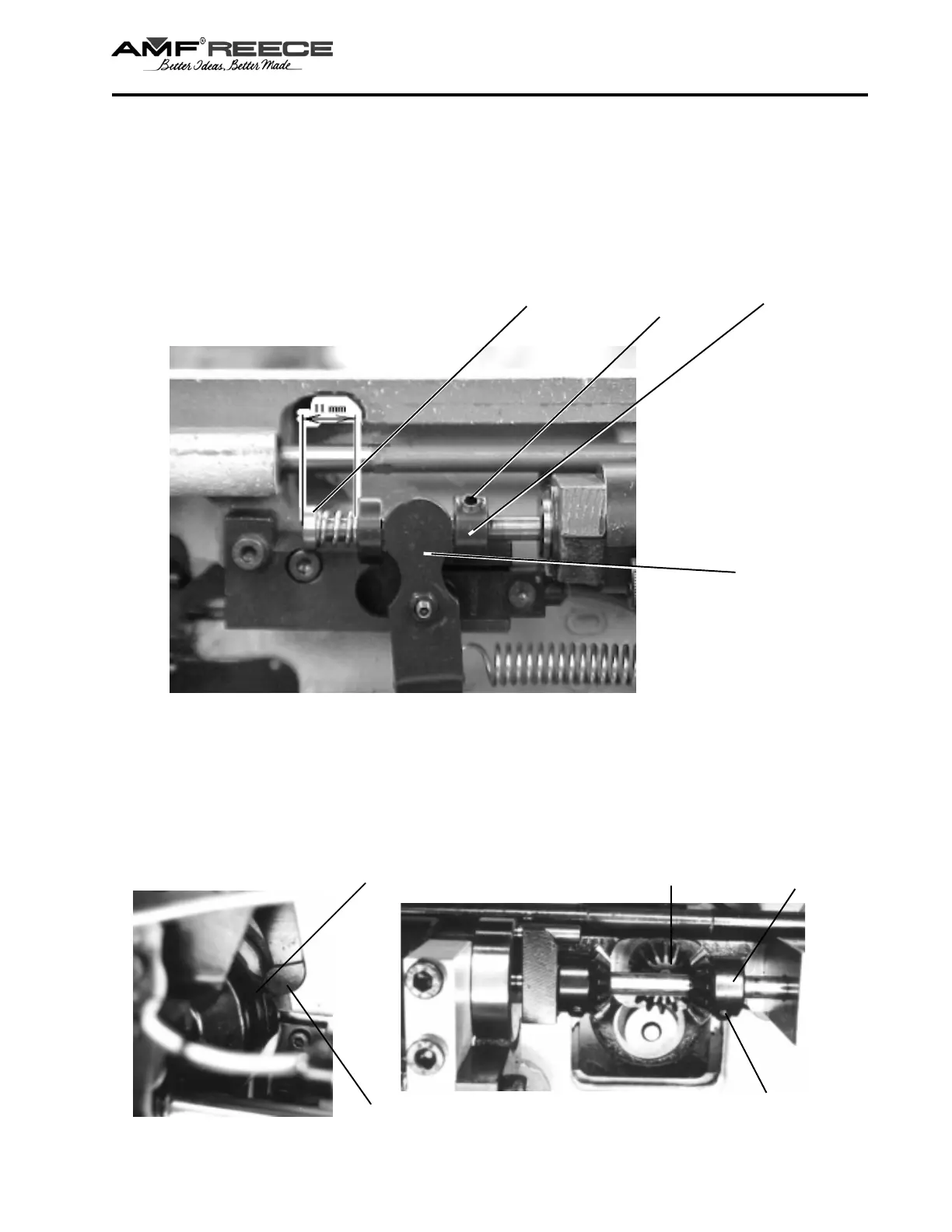

Feed Assembly
Loosen the two set screws in the right collar.
Pressing the end of the feed shaft, position the left collar against the feed reversing lever between the fore-
head of the shaft end and forehead of the left collar adjust dimension 11 mm. Maintaining the spring dimen-
sion sure, position the right collar against the feed reversing lever.
Tighten the set screws.
ADJUSTMENTS
First row of stitches
Rotate the handwheel until the feed reversing lever is in position of the first row of stitches. In this position
the feed reversing lever is on the top of the cam.
Loosen the drive crank set screw and the two set screws on horizontal bevel gears.
Position the right bevel gear to engage with the vertical bevel gear.
Tighten the set screws.
The left bevel gear is adjusted during the first row of stitches on the machines ISBH.
Set
screw
Right collar
Feed
reversing
lever
Left collar
Vertical gear Right gear
Set
screws
Cavity
Feed reversing
lever
Figure 1
Figure 2
