ELECTRICAL DIAGRAM
Jumper Wiring Connections
Warning! Incorrect jumper wiring connections may damage the machine.

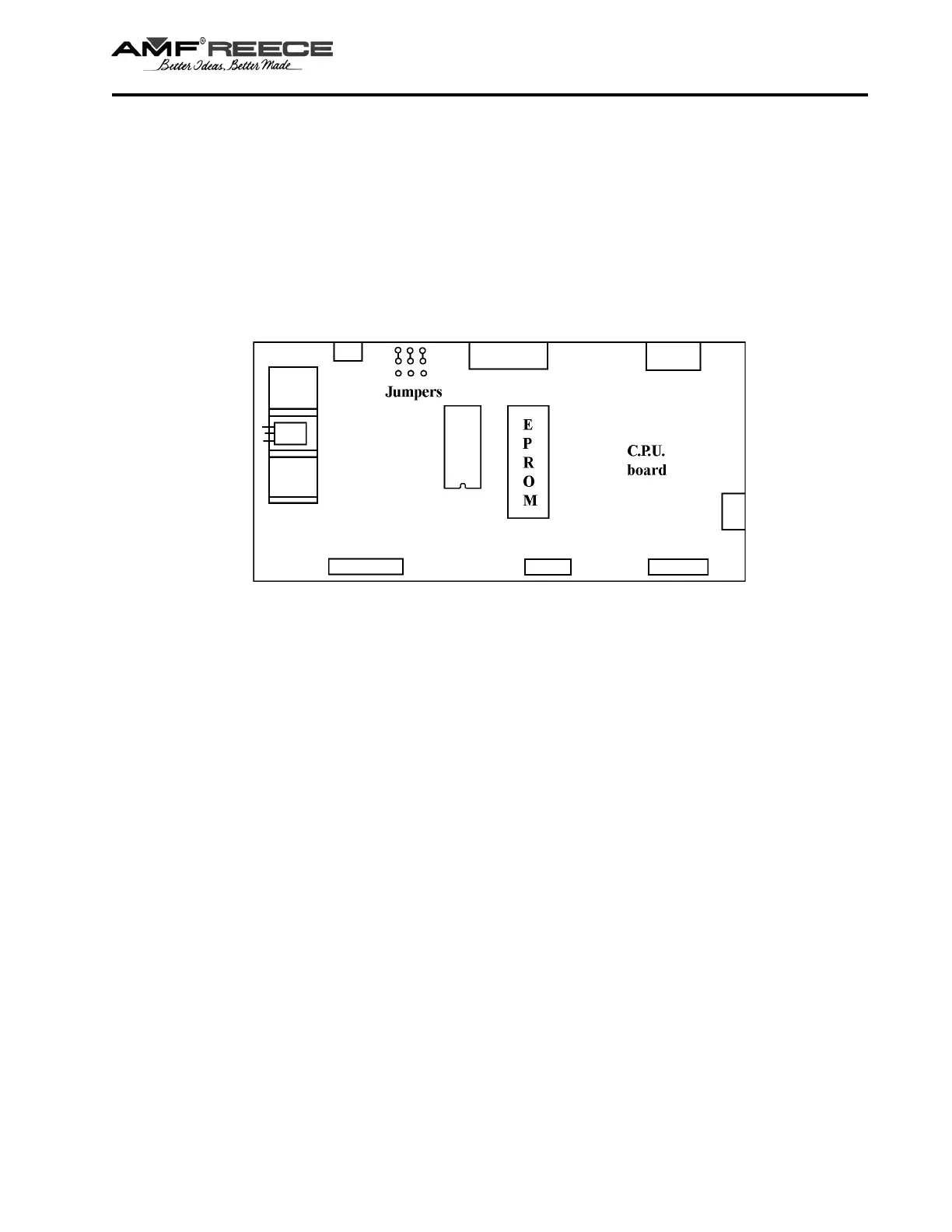

The S-4000 Clinton C.P.U. board utilizes the top jumpers, as illustrated.
