ISBH ADJUSTMENTS

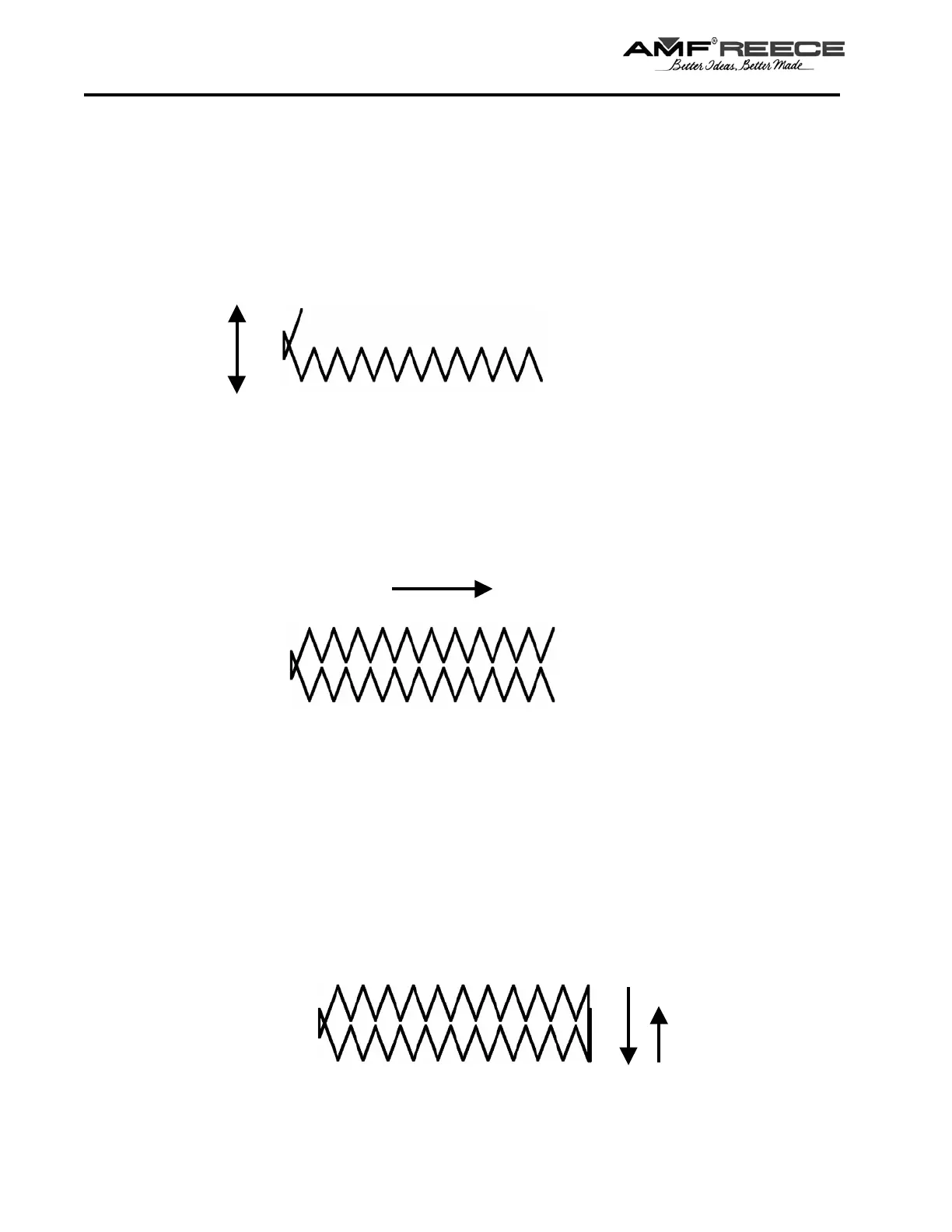

First Bar
Rotate the handwheel during the first row of stitches to position the shifter to the right.
The control spring will disengage from the right shifter block stop and lock with the head drive hub, to
produce the ornamental bar.
Feed
direction
Second Row of Stitches
The control spring engages with the left shifter block stop and the right bevel gear engages with the vertical
bevel gear to start sewing the second row of stitches.
Feed direction
Second Bar
Position the shifter to the left, the control spring disengages from the left shifter block stop and engages with
the head drive hub.
Rotate the handwheel counterclockwise to sew two second bar stitches and place the machine in the home
position.
Feed
direction
