AMF S-4000 - Stopping Sensor and Trimmer Hook

1-78
S-4000
Revised 01/2005
e-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
ISBH ADJUSTMENTS

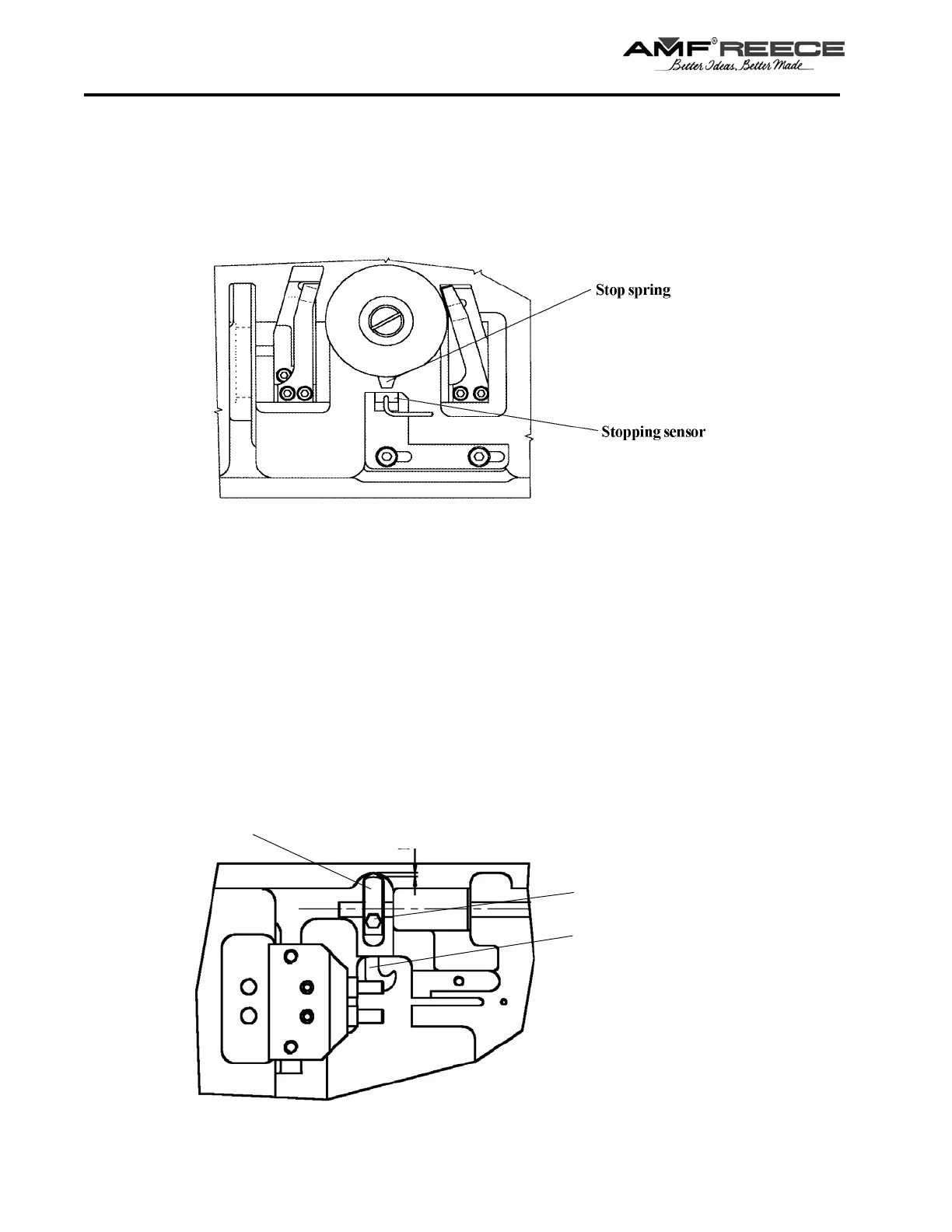

Stopping Sensor
S-4000 BH machine - the control spring activates the stop sewing sensor:
S-4000 ISBH and S-4000 ISBH with Indexer machines - the stop disk activates the stop sewing sensor.
Trimmer Hook
Press the trim cylinder piston rod to the lowest inactive position and loosen the trim actuator screw.
Rotate the trim actuator until a 1.5 mm, (0.060") clearance exists between the boss and the trim actuator.
Tighten the trim actuator screw.
Trim actuator
Clamp screw
Trimmer hook
1.5 mm
