MAINTENANCE MANUAL

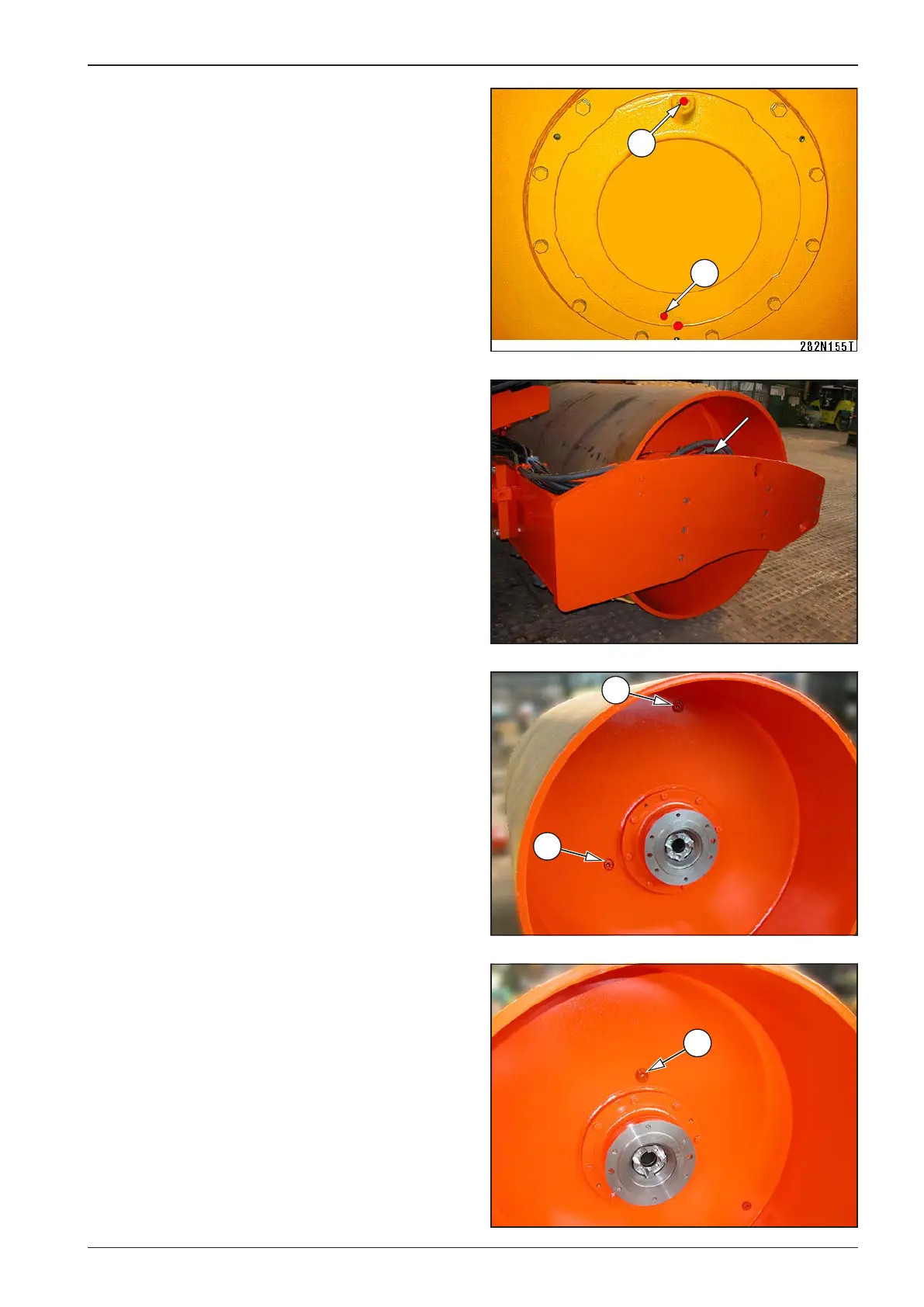

3.6.15. Checking oil in the vibrator
Stop the machine on an even rm surface in order that the •
plugs on the left side of the drum are in the position accord-
ing to g.
Clean the area around the checking plug 1.•
Unscrew the plug 1 and check the oil level. The oil level must •
reach the checking opening or slightly ow out.
Rell oil after unscrewing lling plug 2.•
Clean the plugs and mount again.•
Vibrator Housing ACE
Location of the vibrator housing.•
Note
To better illustrate the positions of plugs the drum frame has
not been installed.
Move the Machine so the plug 2 is in its highest position. •
Check the oil level of plug 1. The oil must reach the low edge
of the inspection hole or ow out slightly.
Note
Plug 2 for the drum cooling liquid.
When oil needs to be replenished, move the Roller a bit so •
the hole 1 gets to its highest position.
