3.6. Individual Operations of Maintenance
3.6.37. Adjusting scrapers
Scrapers for the smooth drum

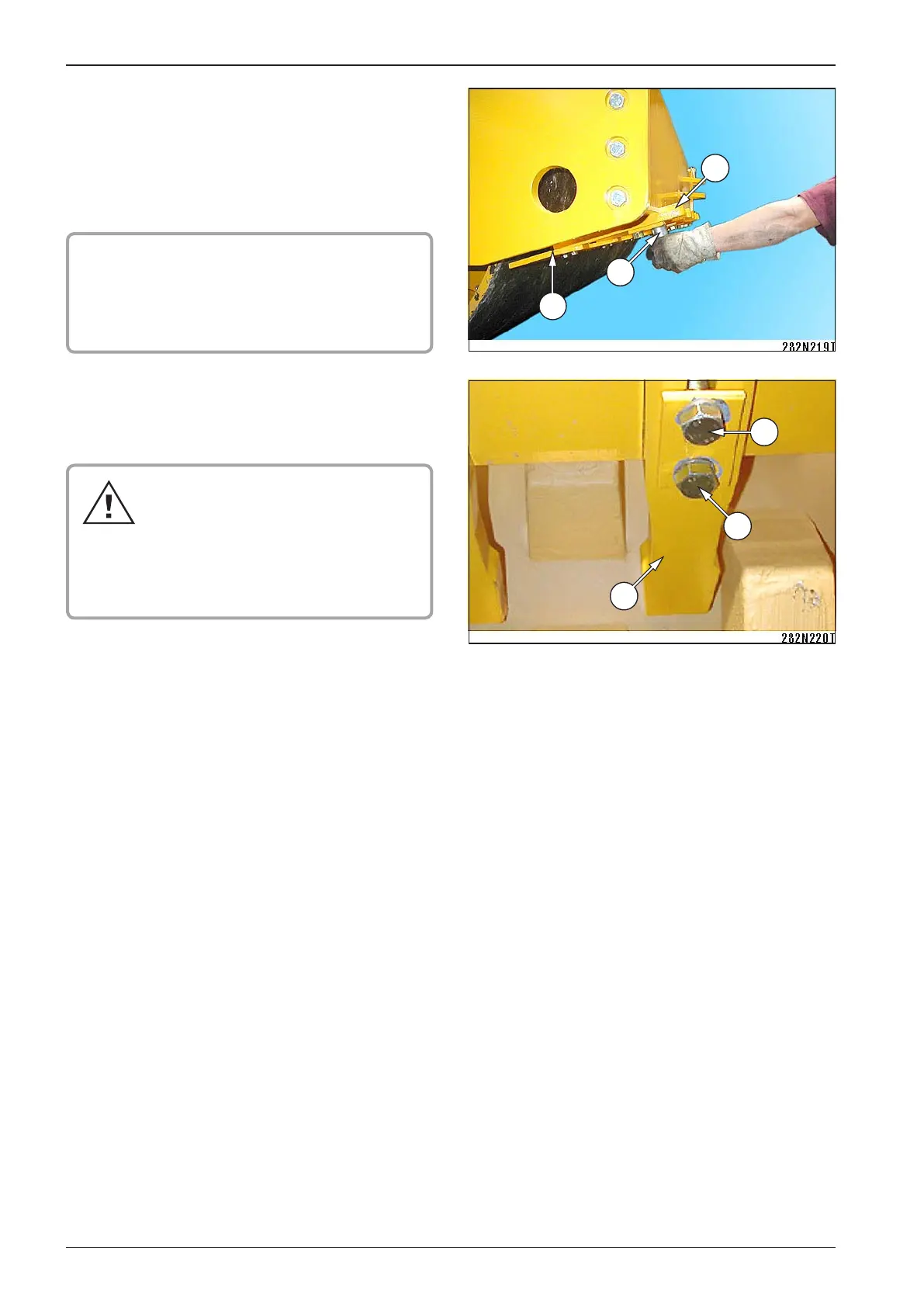

Loosen bolts 1, see g., and move holders 2 towards the •
drum to the distance of 15 mm (0.6 in) between the scraper
and the drum.
! NOTE !
If you can not move scrapers any more within the
range of oval openings of the holders 2 due to the
wear of the scrapers, dismantle the scraper 3 and
move it closer to the drum by one hole.
Scrapers for the taper foot drum
Loosen bolts 1 and move individual scrapers 2 towards the •
drum to the distance of 25 mm (1 in).
Rear scrapers of the taper foot drum are
longer. When replacing worn scrapers,
replace the front scrapers with rear ones
and the rear scrapers with new ones.
If you set too short distance between the
scraper and drum, they may get into con-
tact when cornering with the machine.
