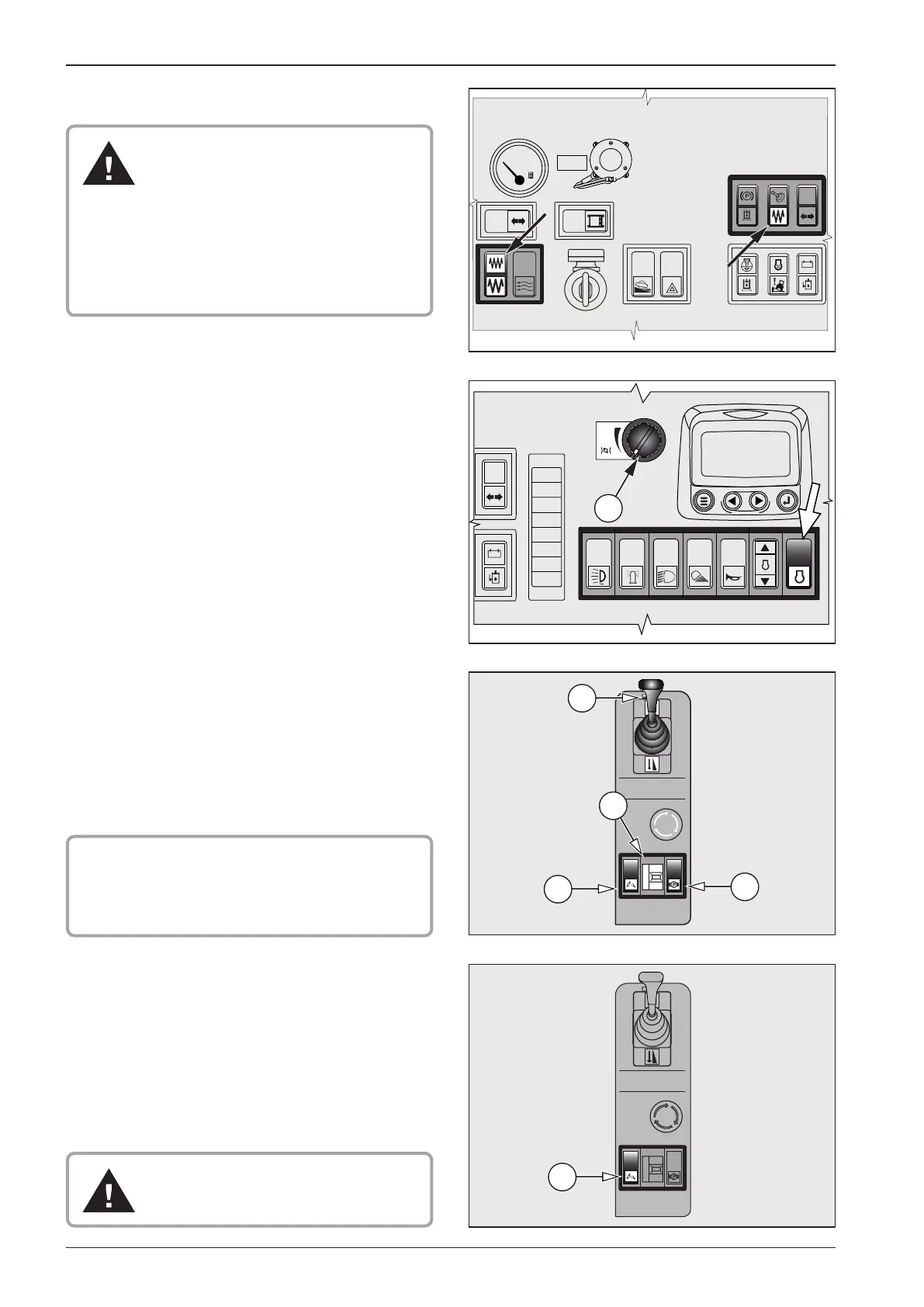

2.7. Machine control and use
2.7.2. Travel and reversing
Give acoustic signal for Machine start-
ed to move, and wait long enough so
any persons present could leave the
area within Machine vicinity (under the
Machine) in time!
Before starting to move, please conrm
the area in front and behind the Machine
is free and that no persons are found
therewithin!
Switch ON vibration amplitude 1, indicator lamp 2 will light. •
Switch OFF IDLE and engine rpm to max. 2200 min
•
-1
via gas
actuator 8.
Turn OFF speed controller 3 - thus switching ON working
•
speed. Switch preselector 4 to the suitable operating speeds
“1“÷”3“. Brake o the Roller via pressbutton 5. Start moving
the Machine and turn ON the vibration via switch 7 - you can
stop the vibration by pressing and releasing the pressbutton.
Note
You may select gear ”1“ ÷ ”3“ of the operating speed via prese-
lector 4 while driving.
! CAUTION !
When driving uphill, engage gear “3” via preselec-
tor 4 so to achieve max tractive (pulling) force (clim-
bability) of the Roller.
By switching ON the transport speed 3 you turn OFF opera- •
ting speed - vibration is interlocked.
Note
You may switch ON/OFF transport speed controller 3 while
driving.
Unless there is enough tractive force while climbing uphill - please
switch OFF the controller and select gear ”3“ via selector 4.
Before driving downhill, please turn OFF
the transport speed controller!
