When using auxiliary starting source this power supply shall
have starting voltage of 24 V.

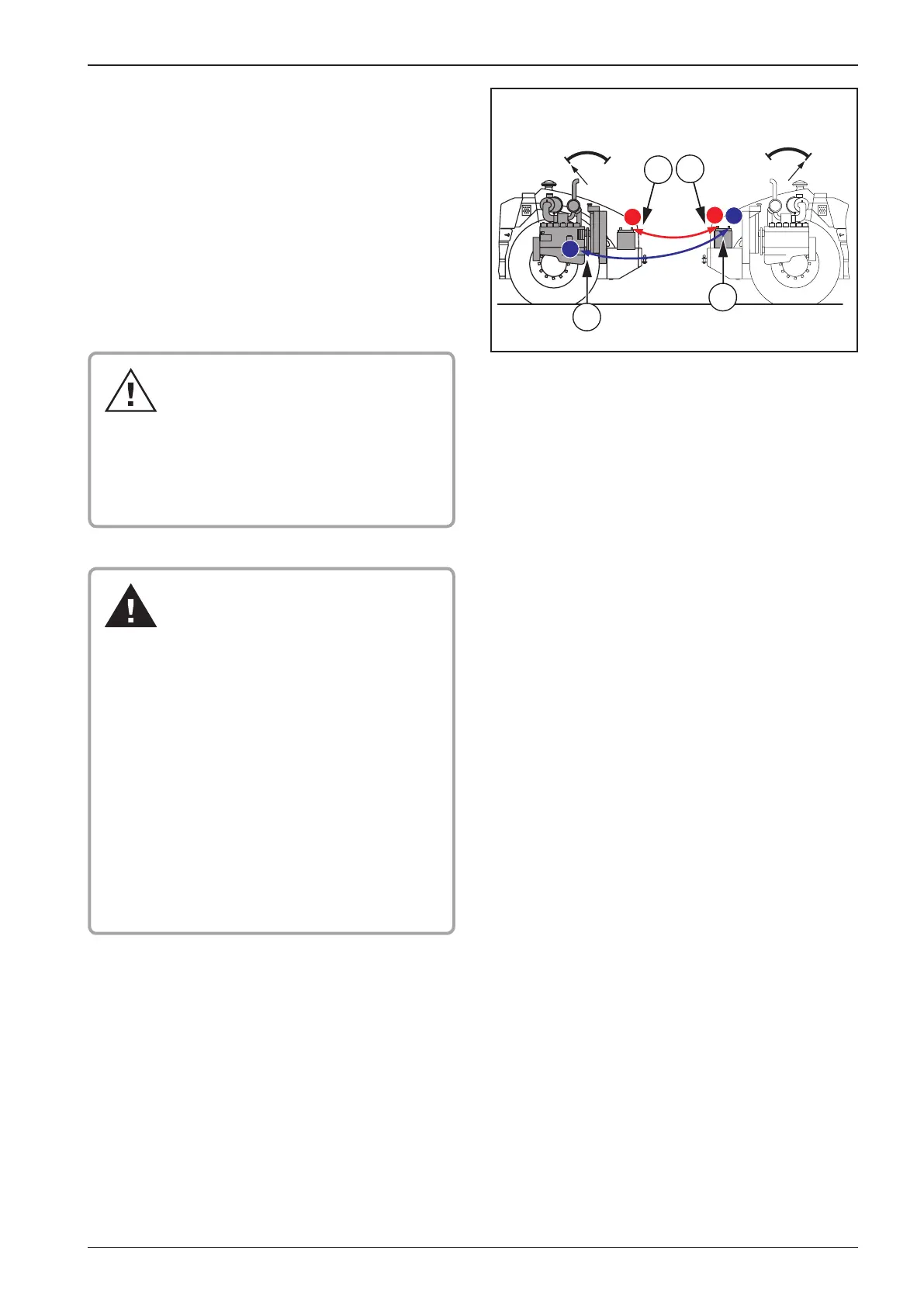

How to start via starting cables from dierent machine
1. Connect one end (+) of cable pole to (+) pole of dis-
charged battery.
2. Connect second end of (+) cable pole to (+) pole of the
Machine battery from which starting will be made.
3. Connect one end of (-) pole to (-) pole of vehicle battery
with the help of which starting will be made.
4. Connect second end of (-) cable pole to such part of the
Machine being started which is wired in the engine (or
eventually in the engine block itself).
Observe unconditionally the sequence
of operations given below!
Once started, disconnect the starting ca-
bles in reverse sequence.
When having used starting unit with
no batteries connected do not discon-
nect this unit before Machine’s battery is
connected.
Do NOT connect cable of (-) pole to (-)
pole of discharged battery of started
Machine! Strong sparking followed by
explosion of gas generated by the bat-
tery may occur when starting.
Non-insulated parts of starting cable col-
lets may not touch each other!
Starting cable connected to battery (+)
pole may not come into contact with
electrically conductive parts of the
Machine - short-circuit possible.
Do NOT bend over the battery - hazard
of acid burn!
Eliminate presence of ammable sources
(open re, burning cigarettes, etc.).
Do NOT check presence of voltage
in wires with the use of sparking via
Machine frame!
