Ammann ASC 110 - Actuators and Dashboard Instruments

42 ASC 110
8
99
6
A
6
7
3
4
2
1
A
5
396003
2.6. Actuators and dashboard instruments

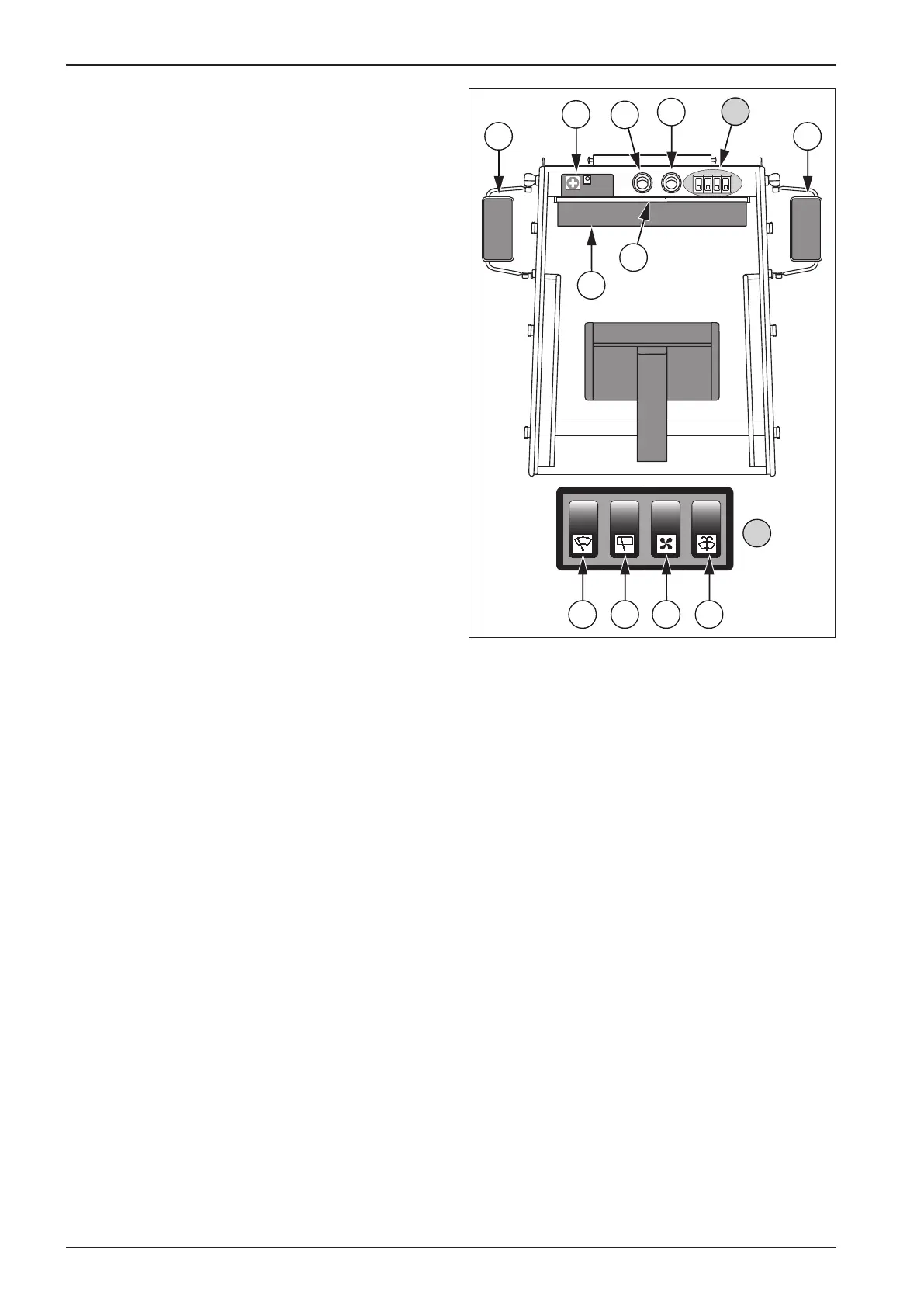

Layout of actuator elements and cab accessories - with no
air conditioner
1 - Windshield washer switch
2 - Fan switch - fan induces ambient air
3 - Front wiper switch
4 - Rear wiper switch
5 - Cab light
6 - Ventilation nozzles
7 - Sun visor
8 - Stowage box for rst aid kit, operation logbook, etc.
9 - Back mirrors - able to fold for transport position by 90° to-
wards cab
Note
Rollers tted with air conditioner have Air Conditioner Opera-
tion Manual apart.
