OPERATION MANUAL
2.8.1. Machine loading
Use loading ramps or crane to load the Machine onto the •
transport carrier.

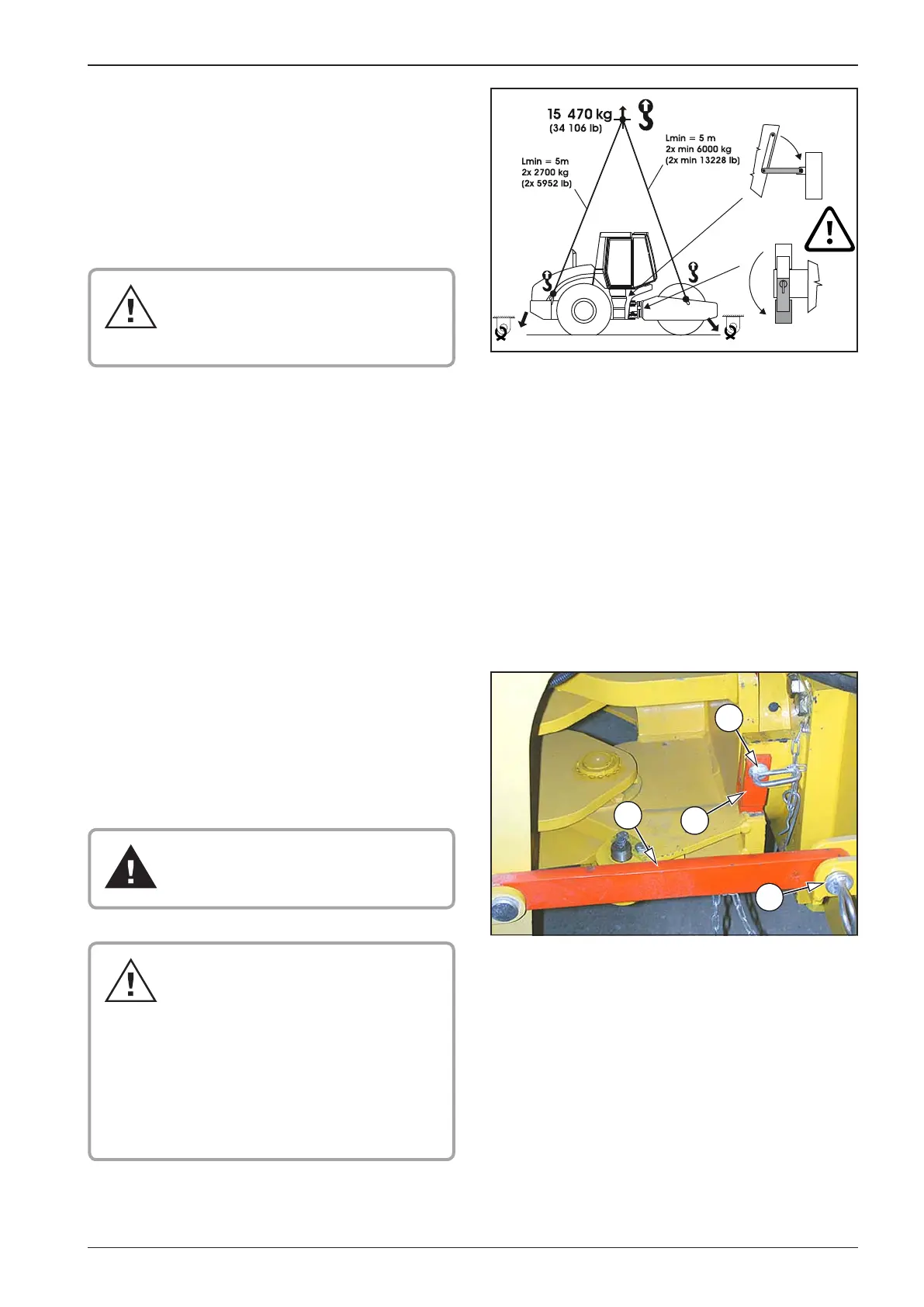

When loading with crane the Roller is tted with lifting lugs
•
- refer to the Fig. showing the lifting method.
When lifting the Roller the Machine’s joint shall be secured
•
against turning.
How to secure the joint:
Fold down the arm 3, turn the cotters (scotch blocks) 4, in-
•
sert pins 1, 2, lock with safety pin.
Note
The scotch blocks are optional.
Do NOT enter the area under the lifted
load!
Upon loading completion, please return
the safety arm and cotters to their initial
position.
Use corresponding, undamaged riggings
of sucient loading capacity.
To sling, please use only the lifting
lugs on the Machine designed for that
purpose.
Only a trained slinger may carry out the
slinging.
When loading and unloading the ma-
chine, it is necessary to observe the pro-
visions of ISO 12480-1 and to use slings
under EN 1492-4+A1.
