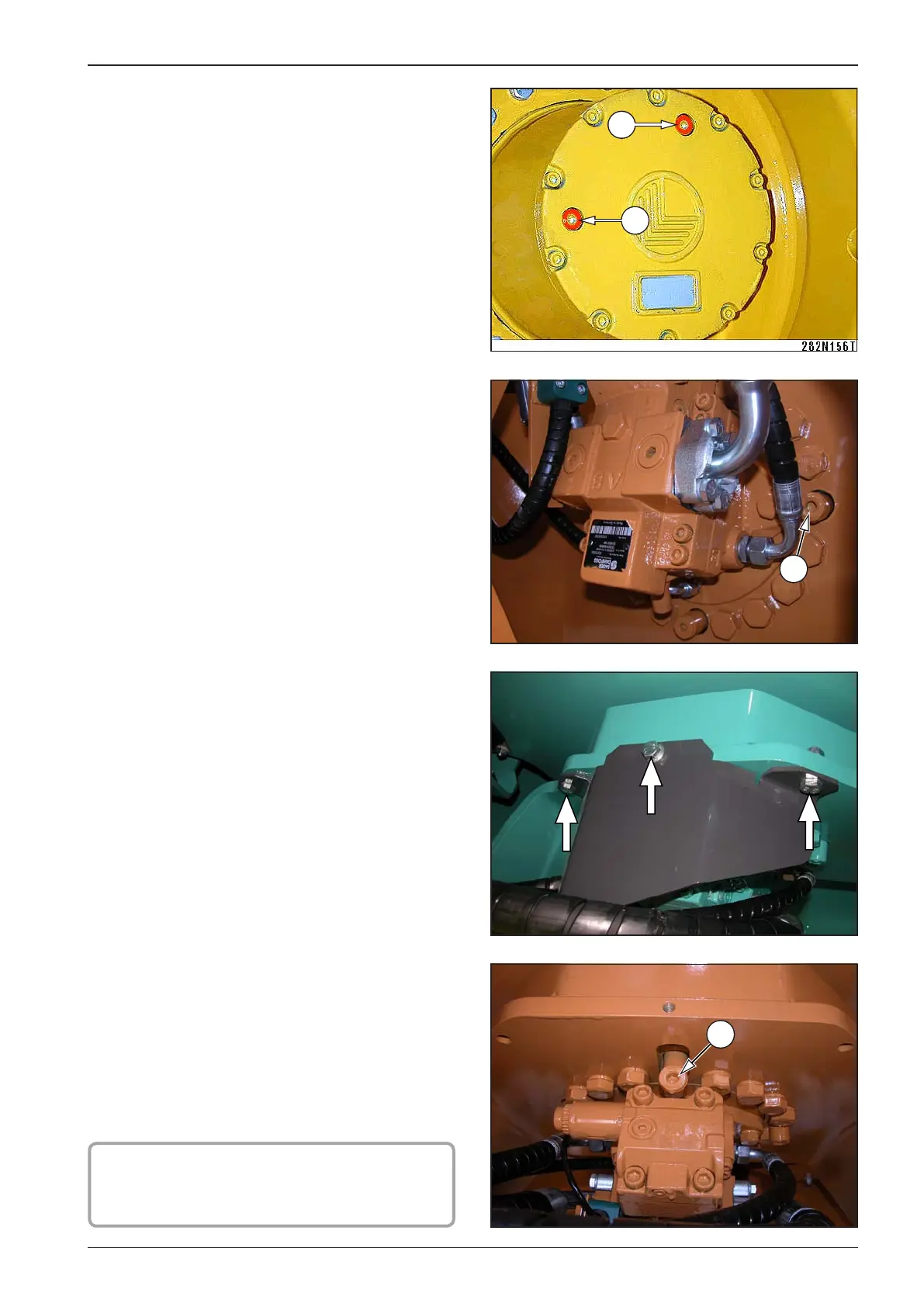

3.6.16. Check of oil level in the travel gearboxes
Axle gearbox
Stop the machine on even, rm surface in order that the •
gearbox plugs of both wheels are in the position according
to g.
Clean the area around the checking plug 1.•
Unscrew the plug 1 and check the oil level. The oil level must •
reach the checking opening or slightly ow out.
Rell oil through the lling plug 2, if necessary.•
Clean the plugs and mount again.•
Drum gearbox
Clean the area around the checking plug 1.•
Unscrew the plug 1 and check the oil level. The oil level must •
reach the checking opening or slightly ow out.
Rell oil through the lling plug 2, if necessary.•
Clean the plugs and mount again.•
Check tightness of the gearboxes.•
! NOTE !
The plugs are located on the static part of the gear-
box - they do not rotate during driving.
After disassembly the cover.•
