3.6. Individual Operations of Maintenance

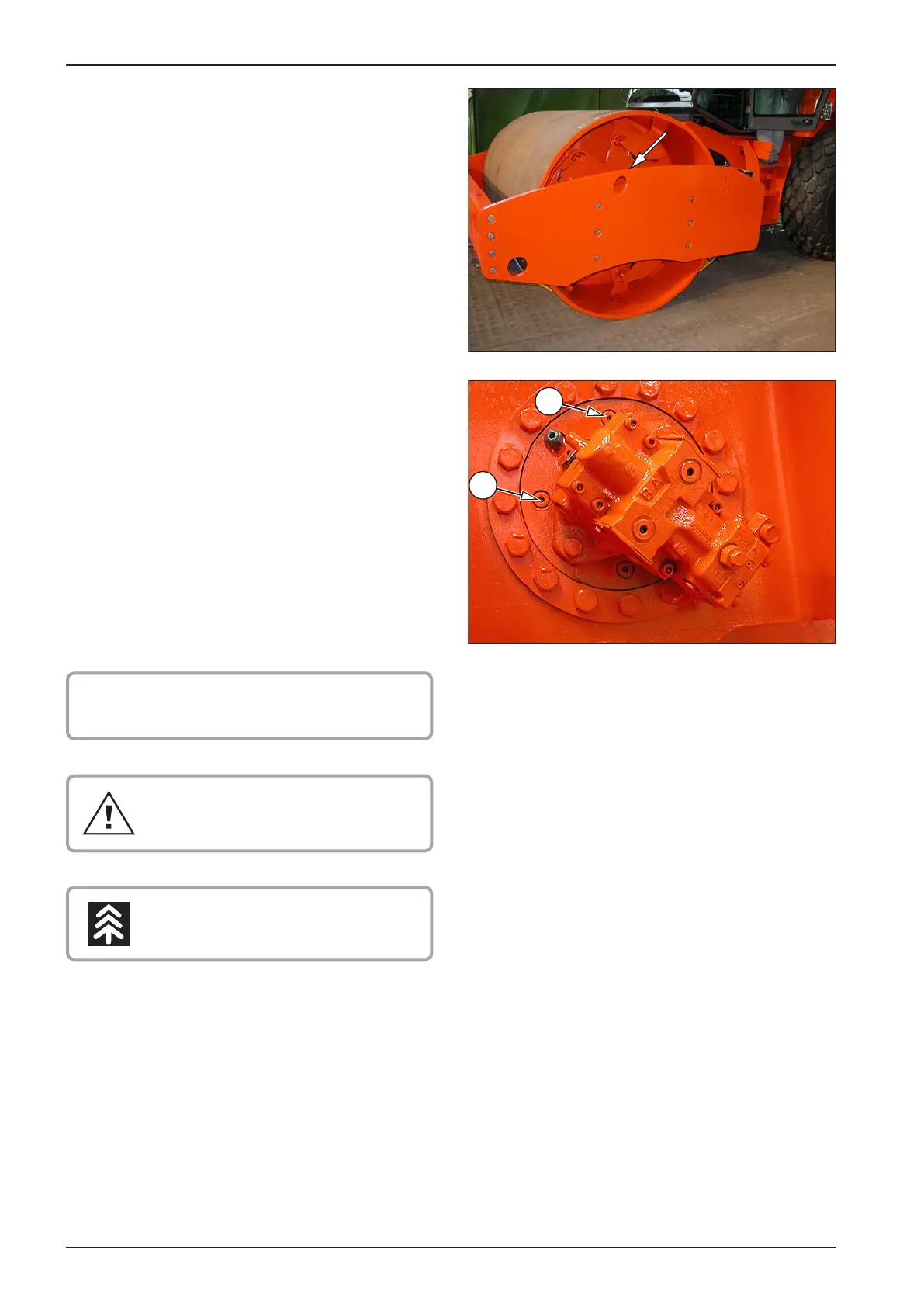

Drum drive gearbox ACE
Location of drum drive gearbox.•
Note:
For better illustration of the position of plugs, the drum frame
and gearbox cover are not mounted.
Clean the place round the check plug 1. Unscrew the plug •
and check the oil level.
The level must reach the inspection hole or ow out slight-•
ly. Make up the oil via the ller plug, if needed 2. Clean the
plugs and reinstall. Conrm the gearbox tightness.
! NOTE !
Check oil when it is cooled down.
Rell the identical type of oil.
Avoid leakage of oil to the soil.
