Ammann ASC 110 - Dimension Chart

12 ASC 110
282050
L
L1
D
A
T
H1
G
D1
1.2. Dimension Chart
mm
(in)
A D D1 G G1 H H1 L L1 T* W W1 W2
ASC 110 D
2878 1500 - 440 420 3070 2400 5780 - 25 2130 2258 -
(113,3) (59,1) (-) (17,3) (16,5) (120,9) (94,5) (227,6) (-) (1,0) (83,9) (88,9) (-)
ASC 110 PD
2878 1440 1640 440 420 3070 2400 5780 - 20 2130 2258 -
(113,3) (56,7) (64,6) (17,3) (16,5) (120,9) (94,5) (227,6) (-) (0,8) (83,9) (88,9) (-)
ASC 110 PDB
2878 1440 1640 440 420 3070 2400 5780 6557 20 2130 2258 2441
(113,3) (56,7) (64,6) (17,3) (16,5) (120,9) (94,5) (227,6) 258,1 (0,8) (83,9) (88,9) (96,1)

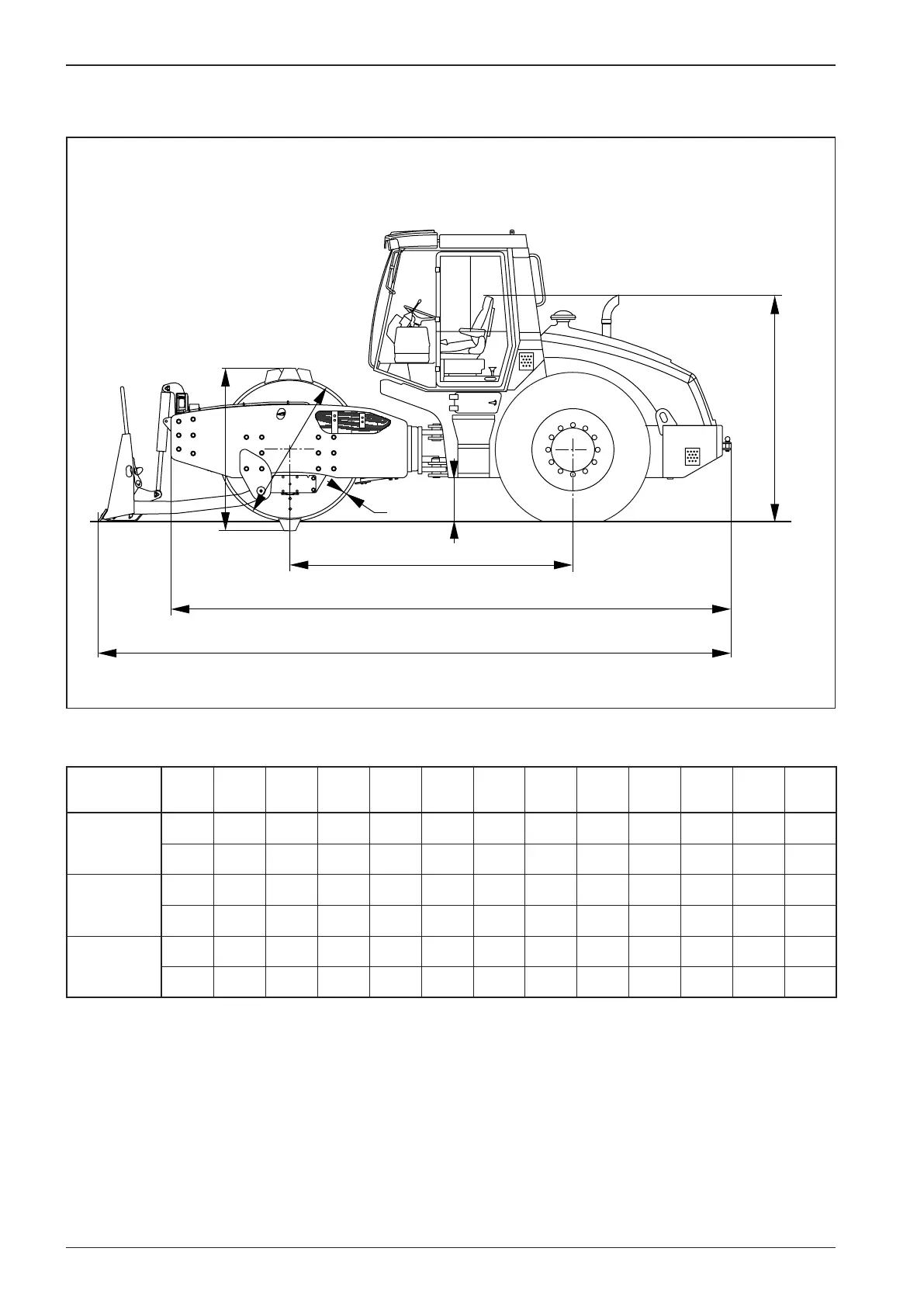

Dimension Chart of the Machine ASC 110 (with cab and ROPS frame and blade)
