OPERATION MANUAL

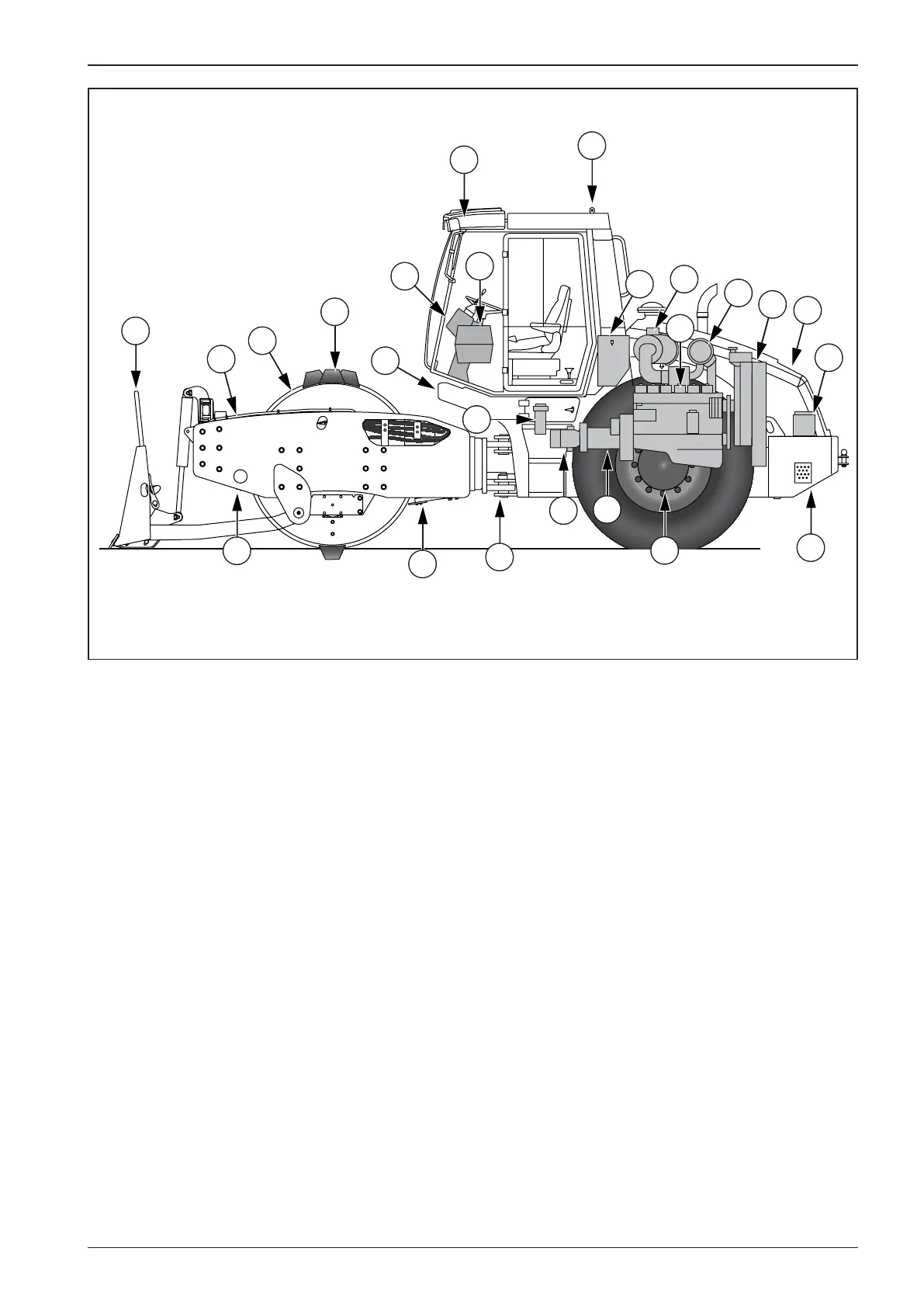

2.5. Machine description
1 - Vibratory drum
2 - Drum frame
3 - Scraper
4 - Joint
5 - Tractor frame
6 - Axle
7 - Fuel tank
8 - Batteries
9 - ROPS protection frame
10 - Hydraulic tank
11 - Cab
12 - Bonnet
13 - Engine
14 - Engine cooler
- Cooler for engine air induction manifold
- Hydraulics cooler
17 - Driver’s actuator stand
18 - Travel hydrogenerator
19 - Vibration hydrogenerator
20 - Exhaust muer
21 - Air lter
22 - Plough blade
23 - Padfoot segments
24 - Hydraulic oil pressure lter
25 - Air Conditioner
