2.6. Actuators and dashboard instruments

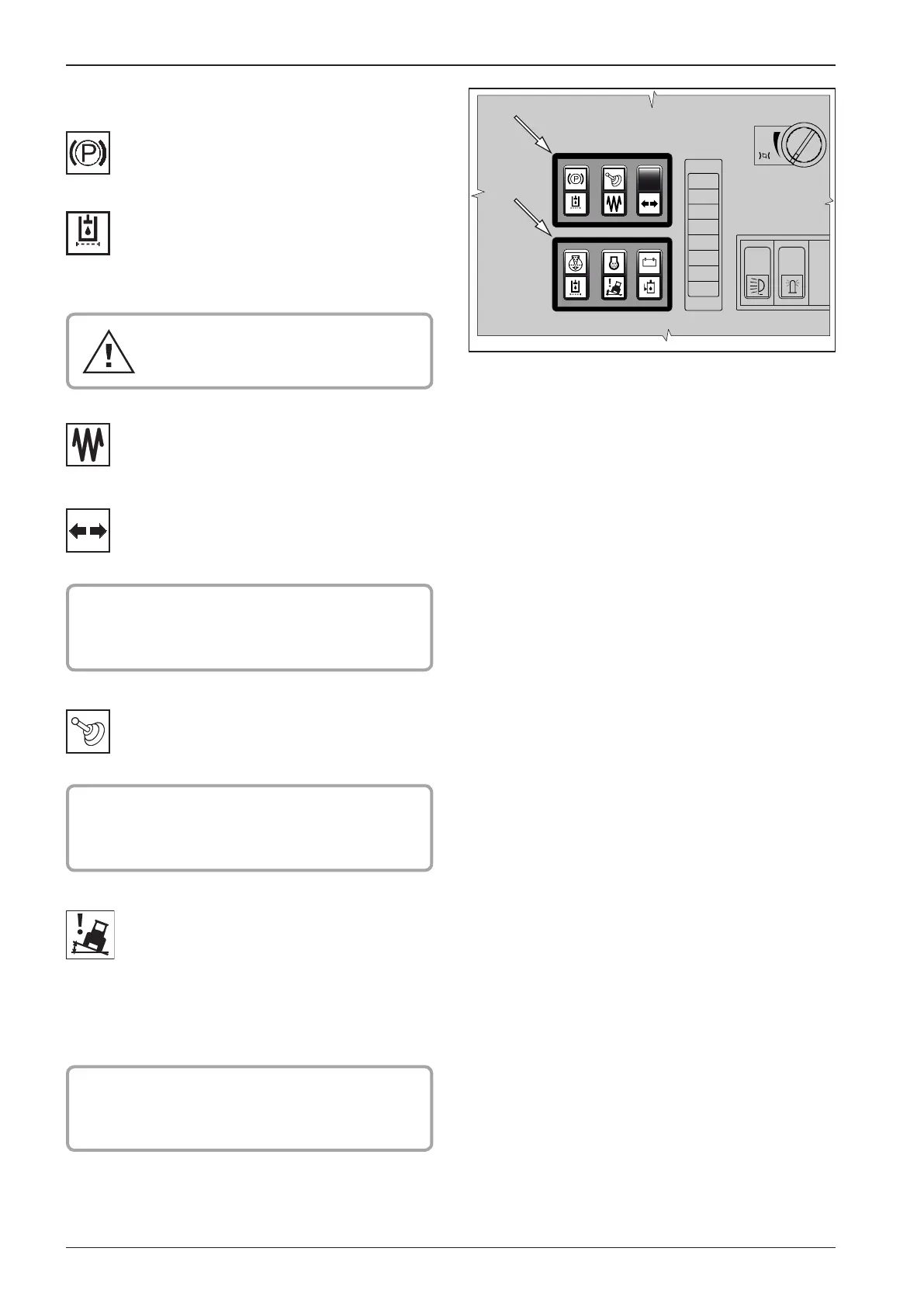

PILOT LAMPS 13
It signals lter element is clogged with dirt.
Brake - pilot lamp ON, signals the Machine is
braked.
Hydraulic oil lter fouled - ACE drum
Vibration - signals the vibration is ON via switch 7
Promptly replace the lter element!
Direction lights
! CAUTION !
Rapid ashing signals a failure (defective bulb).
Check function of direction lights.
Zero position of travel actuator - neutral (idle)
! CAUTION !
Check travel actuator in neutral before starting the
engine!
ROPS2D (Roll Over Preventative System)
! CAUTION !
Vibration is unable to switch ON until Machine re-
turns to its safe bank.
Flickering indicator lamp incl. acoustic alarm will signal any haz-
ardous bank of the Machine during cross travel of Roller on the
slope, and vibration will stop simultaneously – lateral slip haz-
ard.
