Cab - 1
Bonnet - 2
Lever up - lifting
•
Lever down - dropping
•

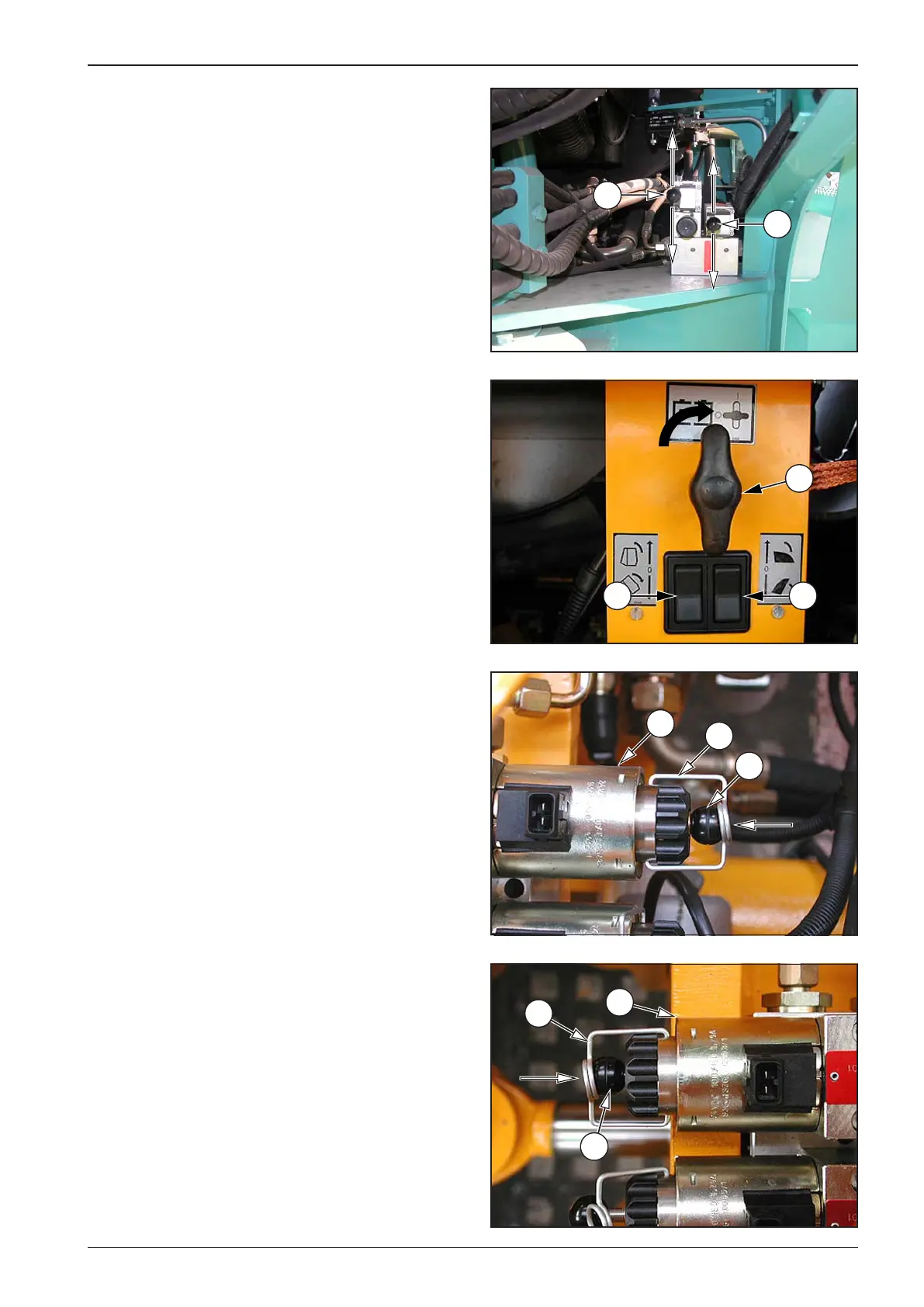

Electric-hydraulic control (optional)
Connect wiring by turning battery disconnector 1. Press pu-
•
shbutton 2 to position “A“ to lift the cab, or pushbutton 3
to lift the bonnet. To drop you must press pushbuttons to
position “B”.
Note
When unit (aggregate) is broken, or battery discharged, please
lift - drop the cab or bonnet by pumping on hand hydrogenera-
tor with the distributors adjusted as seen hereinafter. The dis-
tributors are located underneath the cab, inside the frame, on
LH side.
Cab
To lift manually you must plug in the slide 1 on distributor
•
A, secure with safety pin 2. Before dropping, please unlock
the safety pin.
To drop you must plug in the slide 1 on the second side of
•
distributor A, secure with safety pin 2.
