AMX NXD-500i

Setup Pages and Descriptions
49
NXD-500i 5" Modero Wall/Flush Mount Touch Panel with Intercom
Protected Setup Page (Cont.)
System Recovery: Either resets the touch panel to factory default settings and/or wipes out all existing touch
panel pages:
•The Reset System Settings button allows a user to wipe out all current configuration
parameters on the touch panel (such as IP Addresses, Device Number assignments,
Passwords, and other presets).
- Pressing this button launches a Confirmation dialog (FIG. 47) which asks
you to confirm your selection.
- This dialog is configured with a delay timer that does not enable the YES button for 5
seconds. This delay provides an additional amount of time for the user to confirm their
decision.
•The Remove User Pages button allows the removal of all current TPD4 touch panel pages
currently on the panel (including the pre-installed AMX Demo pages).
- Pressing this button launches a Confirmation dialog (FIG. 47) which asks to confirm your
selection.
- This dialog is configured with a delay timer that does not enable the YES button for 5
seconds. This delay provides an additional amount of time for the user to confirm their
decision.
Reboot/Shutdown Panel: Reboot: Pressing this button causes the panel to restart after saving any changes.
Shutdown: Pressing this button causes the panel to shut down after saving any changes.

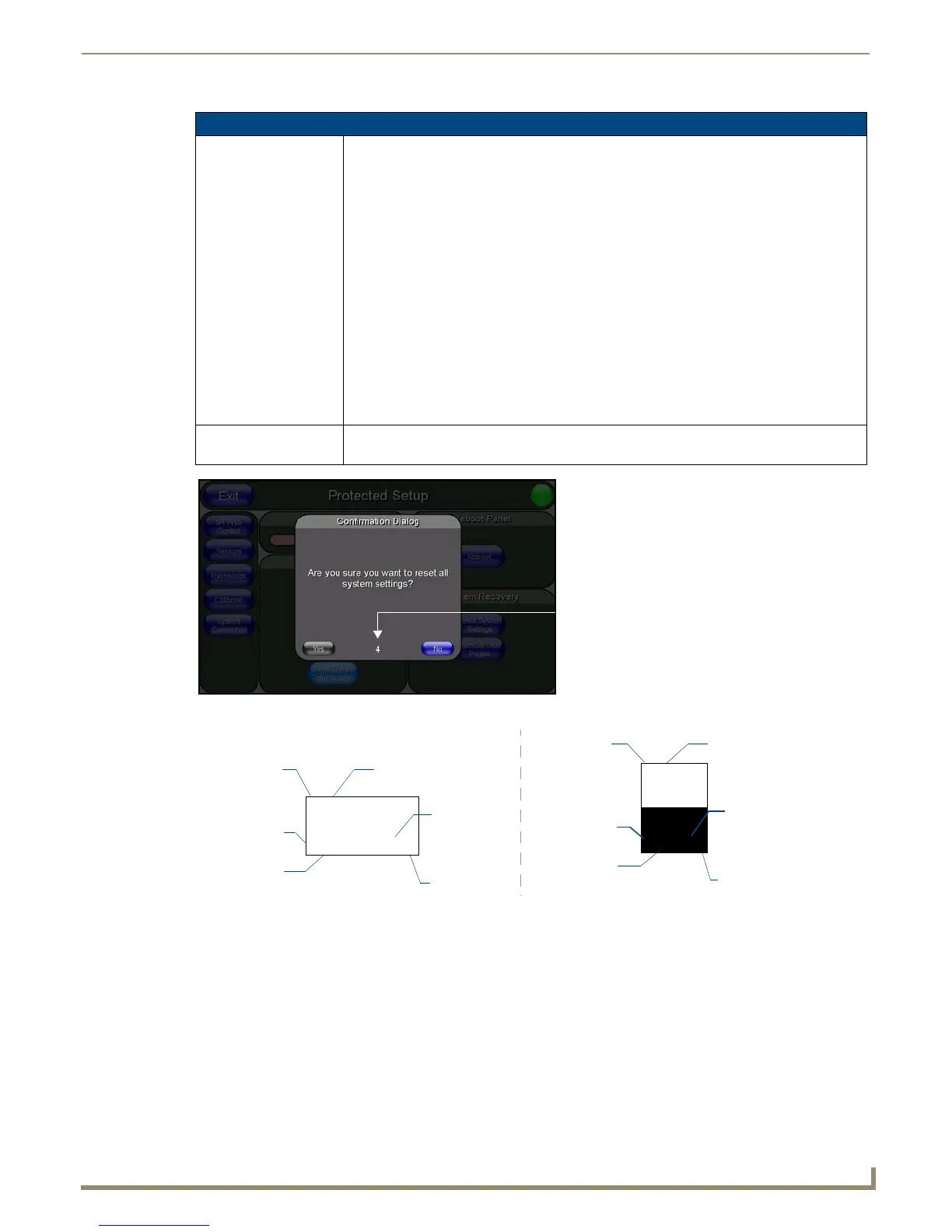

FIG. 47
Protected Setup page-System Recovery confirmation dialog
FIG. 48 Button/slider Function Show example
This dialog has a wait time of 5 seconds
before the YES option is enabled.
Slider
Button
Channel Code
Number
3,132
2,8 3,50
Channel Port
Level Port
Address
Port
Address Code
Number
Channel Code
Number
7,10
Channel Port
4,9
1,8
Channel Code
Number
Level Port
Channel Code
Number
Address
Port
Address Code
Number
