AnaJet mP5i - Page 17

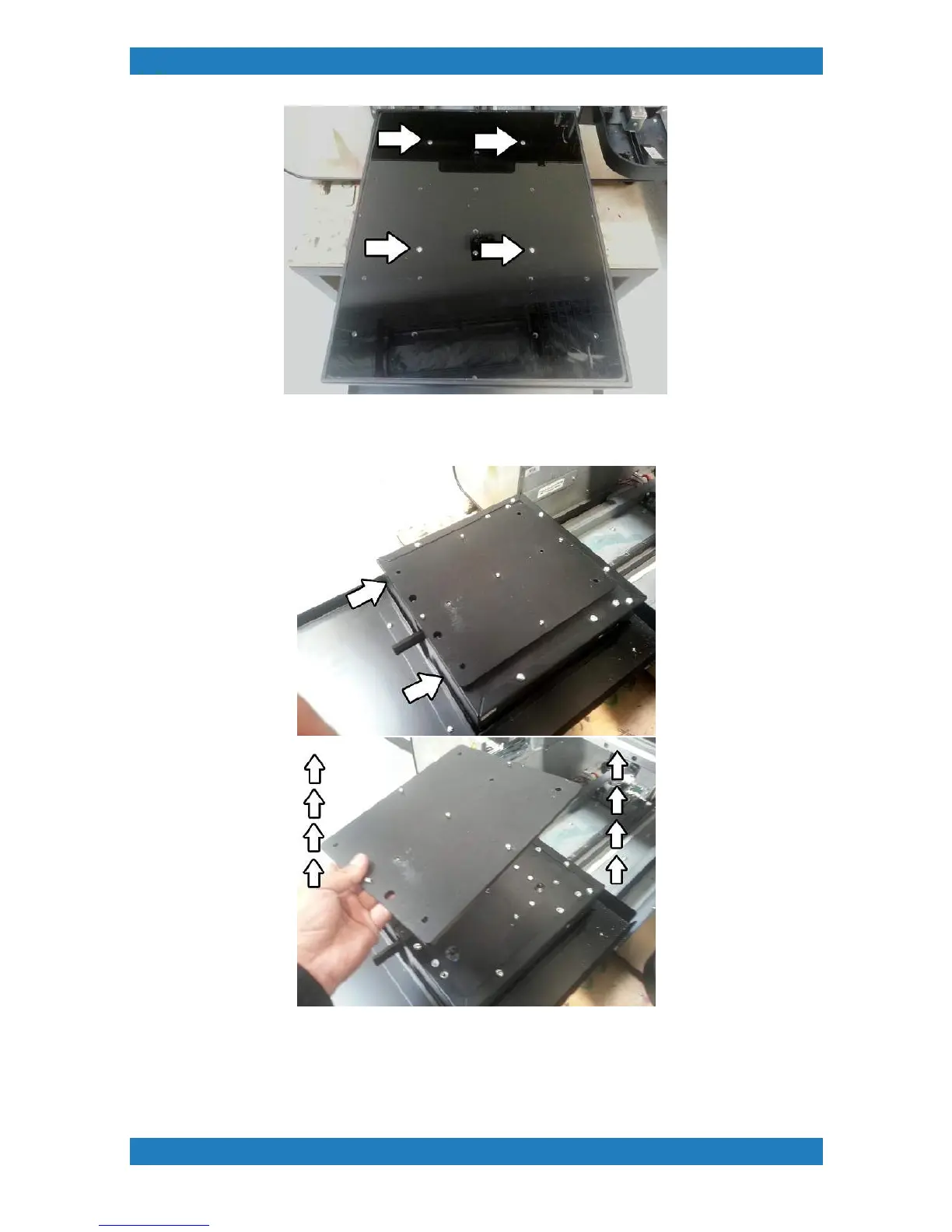

Photo 2.6.2
3. Remove the bottom plate. No screws will be removed from this plate, simply lift up. See Photo 2.6.3
Photo 2.6.3
4. Newer printers will have this skirt covering the tables scissor lift. Older printers will not have this skirt. If
your table assembly has a skirt remove the 8 screws below to release the skirt. See Photo 2.6.4
Anajet mPower i-Series ServiceManual
17
