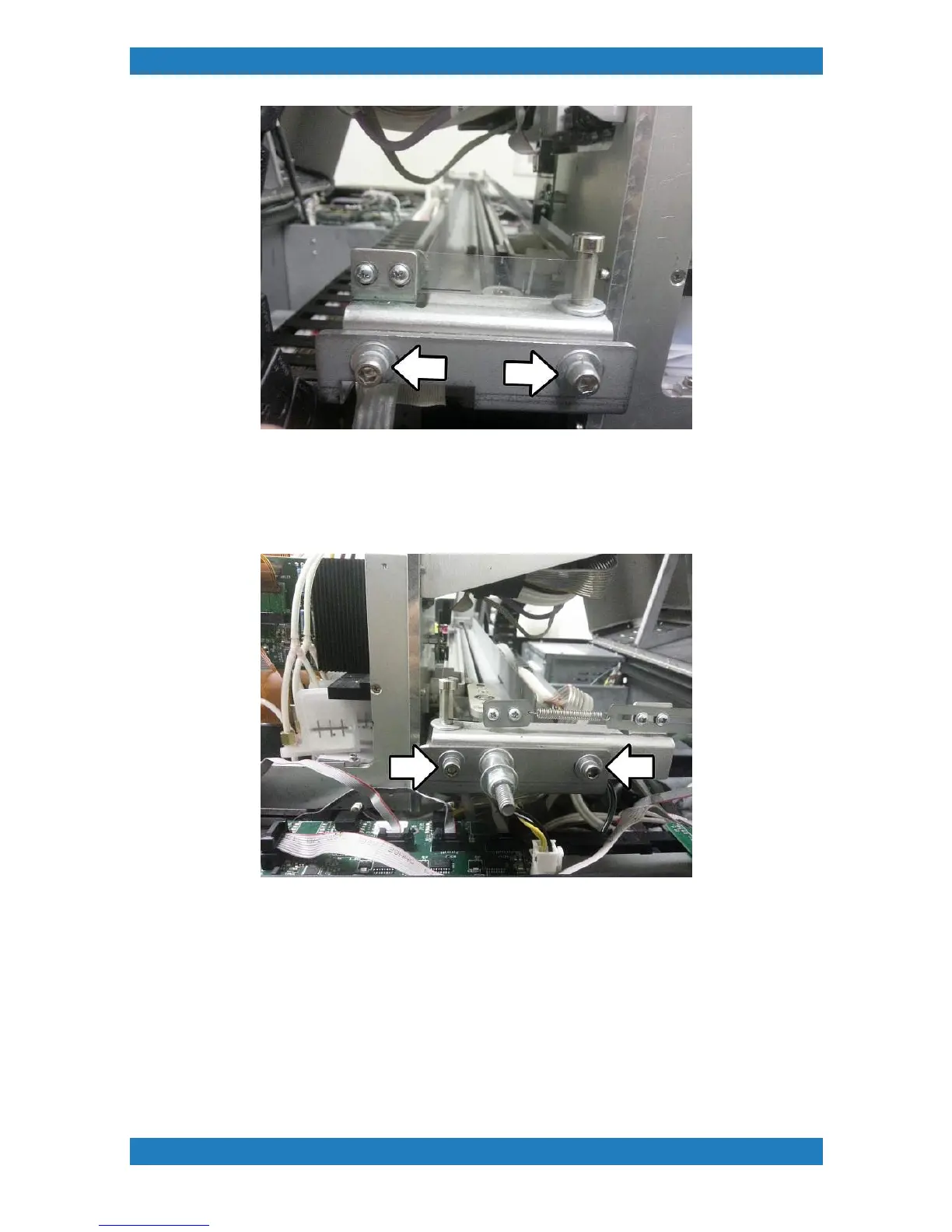

Photo 2.4.2
3. Now that we have adjusted the left hand side, move the carriage to the far right and check the encoder
strip alignment on the right side. If the Left side was adjusted its possible that the right side has moved and
needs adjusting. If adjustment is necessary loosen the two socket head screws and adjust the encoder until
we have the correct position. See Photo 2.4.3
Photo 2.4.3
4. Once the encoder strip has been adjusted secure the carriage back to its home position.
2.5 Wiper Height Adjustment
Tools Needed
o
Wiper Gauge Tool (P/N - 150617-001)
To Next Page
