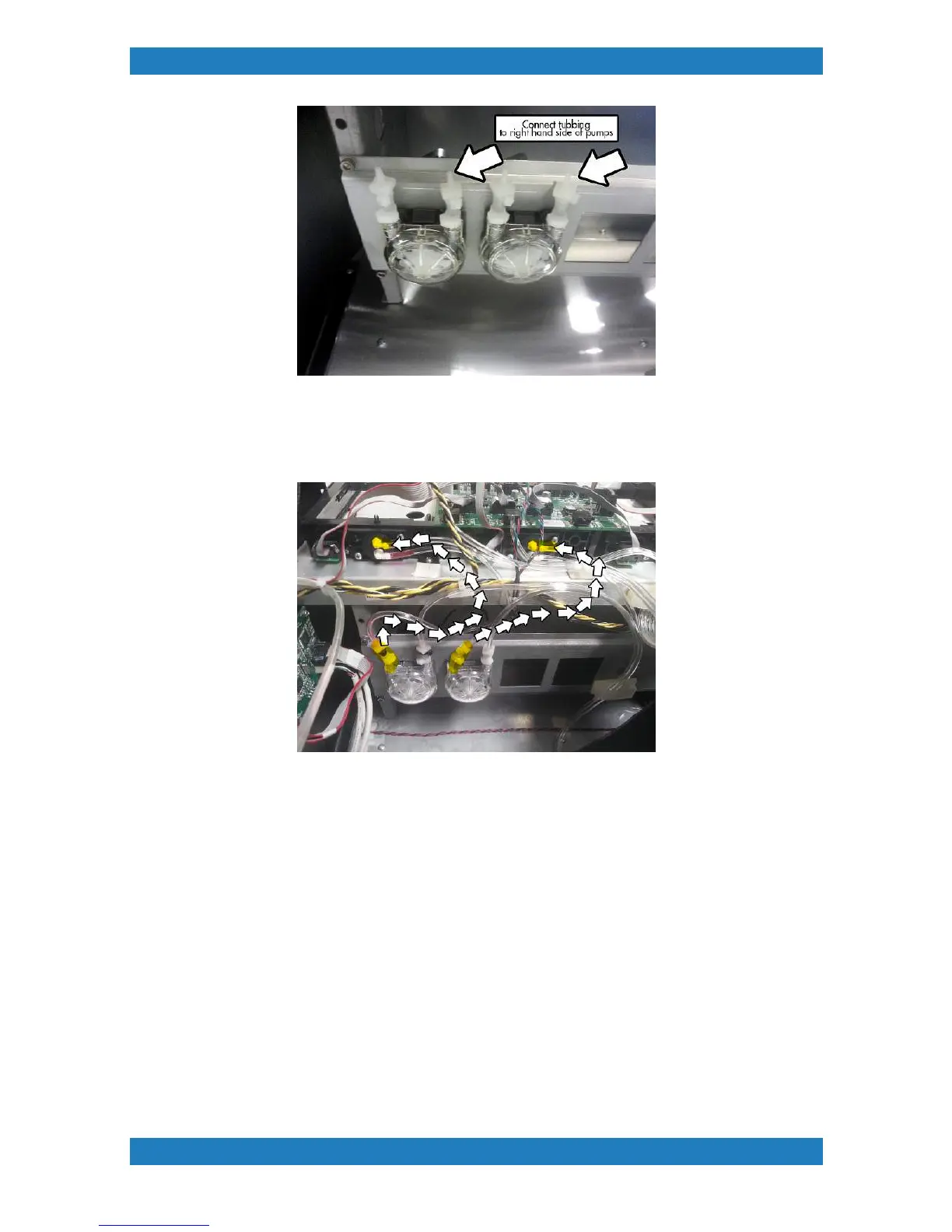

Photo 3.2.19
We will now use a 12 inch piece of tubbing to connect the other side of the pump to the top white cartridge
valve. See photo 3.2.20
Photo 3.2.20
Your tubbing should now all be connected. Inspect all tubbing before loading the printer with ink. If any tube is
loose you can risk the chance of introducing air into the system which will result in poor ink flow. Make sure
no tube is bent or kinked which can cause poor or no ink flow.
3.3 Maintenance Station Replacement
Tools Needed
o
Phillips Screwdriver
o
Wiper Gauge
o
Maintenance Station
Maintenance station can be replaced if excessive damage has been done to the rubber gaskets,
