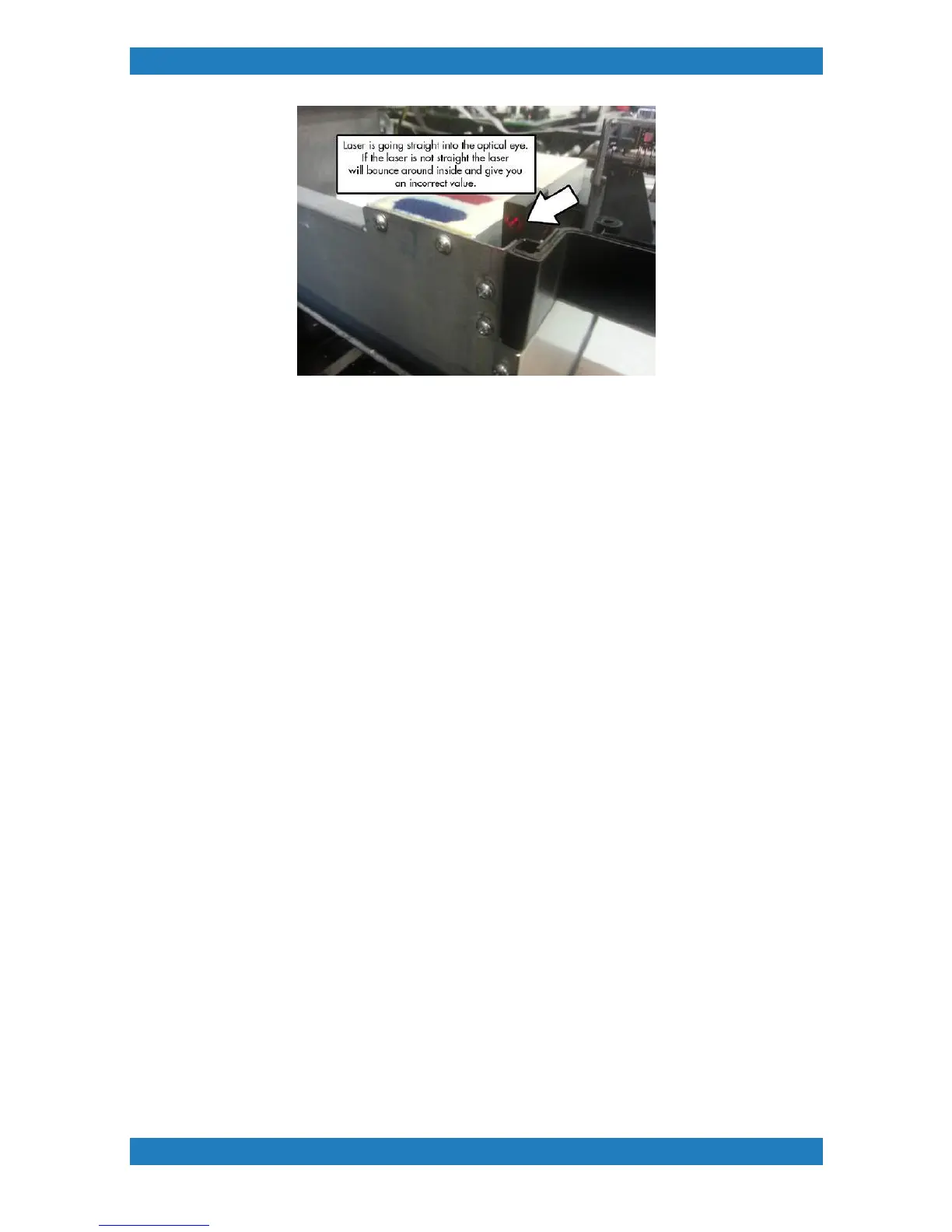

Once you have to correct position of the laser hit table down (under technical menu) then hit table up (under
technical menu). Press the "HEIGHT" button to make the automatic adjustment, once its done release your
carriage and use the laser shim to check the height.
2.8 Lubrication
2.8.1 Linear Guide Rail -Table
Tools needed.
o
Synthetic Oil (P/N-150646-001)
1. lubrication of the linear guide rail for the table is needed for every 100 kilometers (62 miles) of travel. This is
equivalent to about 80,000 print cycles for the table. If the unit experiences this number of print cycles or has
been operating in a severe environment, the table linear guide rail may be lubricated with synthetic oil applied
to the rail side surface.
2. Use a synthetic Oil/lubrican to lubricate the rail guides. Place a couple drop of lubricant to the left and right
hand side of the linear table rail. See photo 2.8.1.
