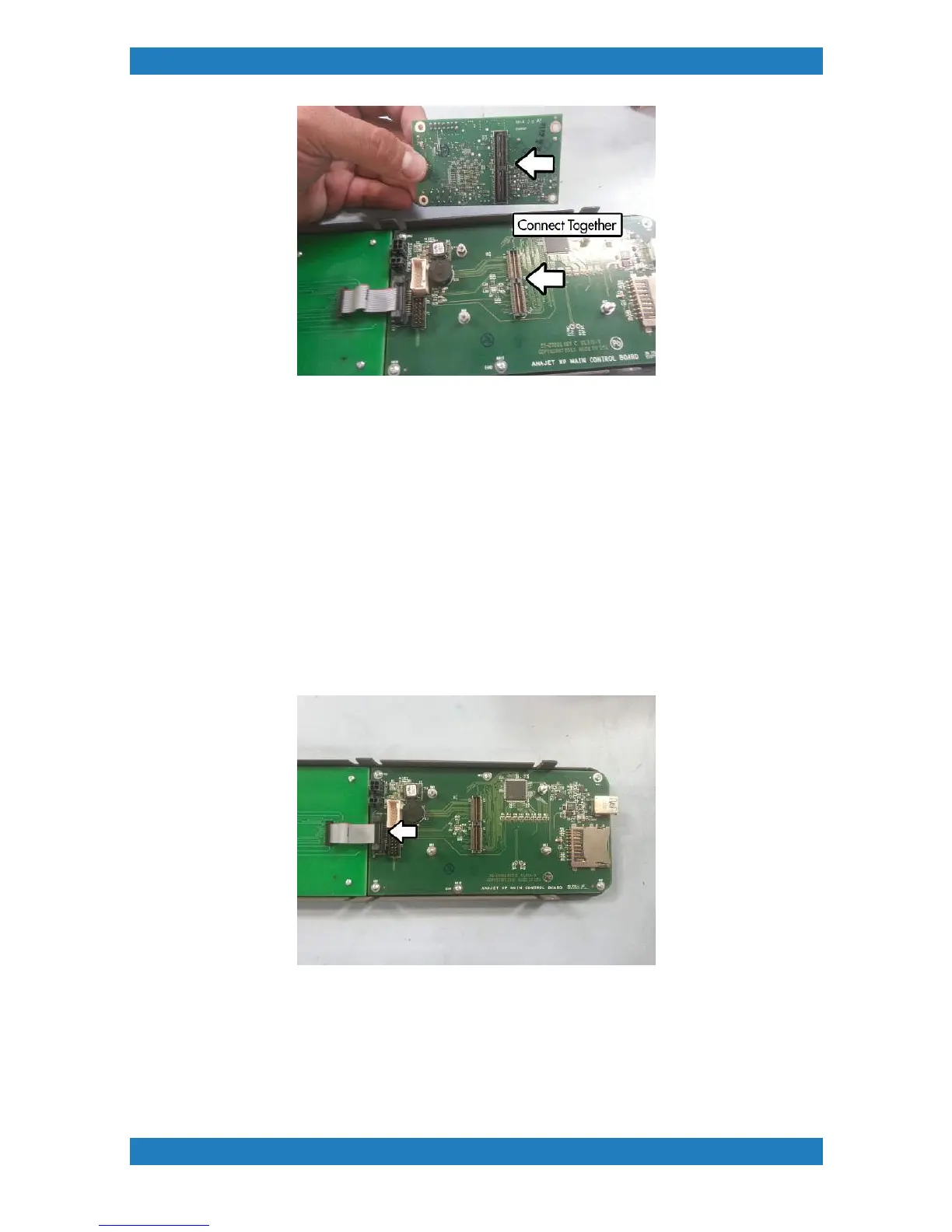

Photo 3.13-2
3.13.2 Control Panel I-O Board Replacement
Tools Needed
Phillips screwdriver
I-O Board (P/N: 51-20001-001)
1. Remove the control panel see section 3.13 and the O-MAP board see section 3.13.1
2. Unplug the single cable located to the left of the board. See photo 3.13.2-1
Photo 3.13.2-1
3. The board is held by 6 phillip screws. There will also be a small ribbon cable connected underneath. DO
NOT pull on the board just yet. See photo 3.13.2-2
