Left side Right side
Photo 2.5.6 Photo 2.5.7
2.6 Table Z Axis Motor Limit Flag Adjustment
Tools Needed
o
3/32 Hex Key / Allen key
o
Flag Measuring Shim (P/N - 150620-001)
Begin by releasing your carriage. (MENU>MAINTENANCE FUNCTIONS>RELEASE CARRIAGE.
Go to the technical menu (MENU+ENTER+JOBS). >Module Test>Motion control>table up. This will raise the
table to its flag limit. See image below.

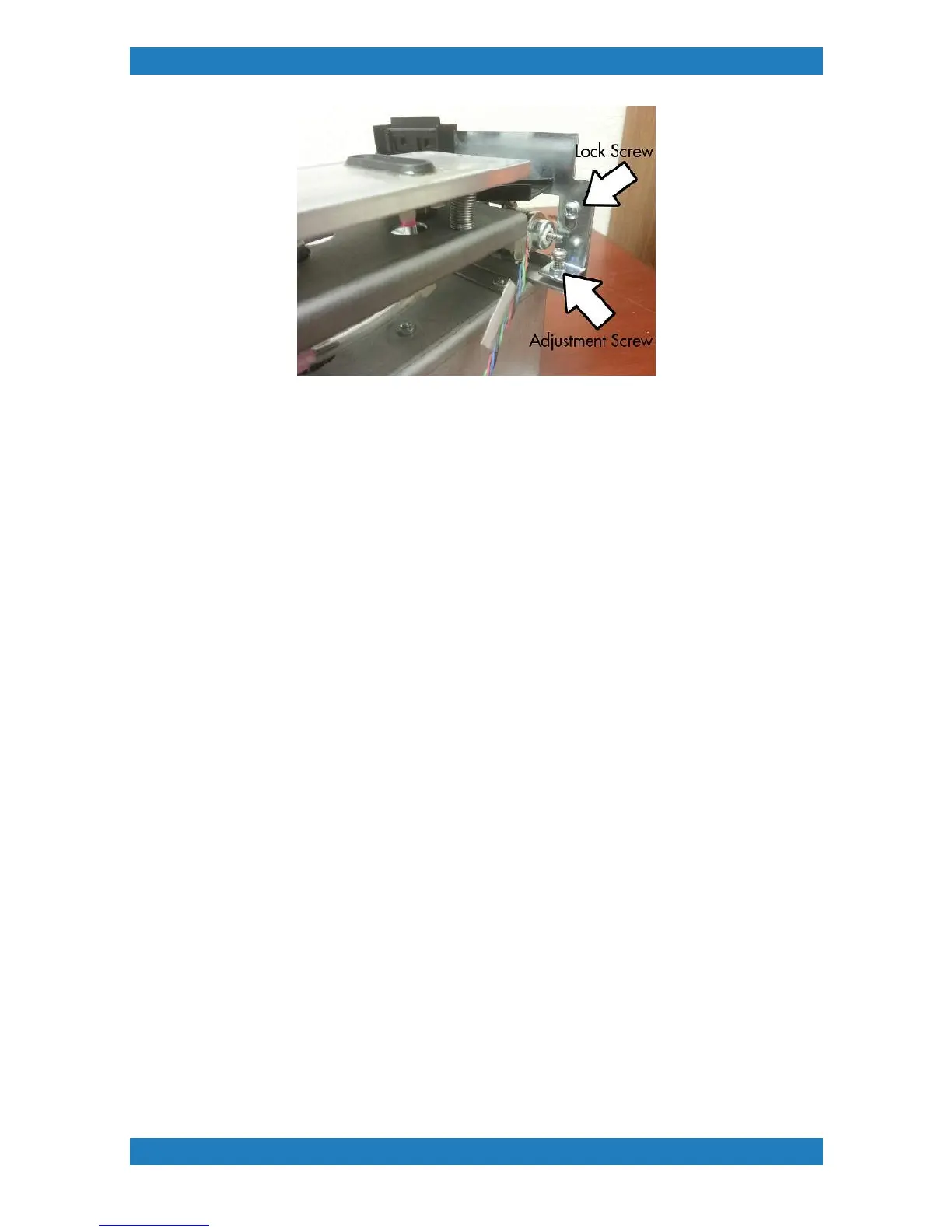

Use the Flag Shim measuring (.030cm). The shim will have a limit tab to stop you.The shim should fit
perfectly underneath the carriage. If the table is too low we will have to raise our flag limit, or if its the shim
doesnt fit at all we will have to lower our flag limit.
2. Remove the table assembly. The table assembly will have 4 3/32 hex screws. Once the hex screws are
removed the table should be released. See Photo 2.6.2
