Capter 2: Adjustments
2.1 Carriage Belt Tension
Tools Needed
o
7/16 Ratchet Wrench
o
Gates Belt Tension Meter or equivalent

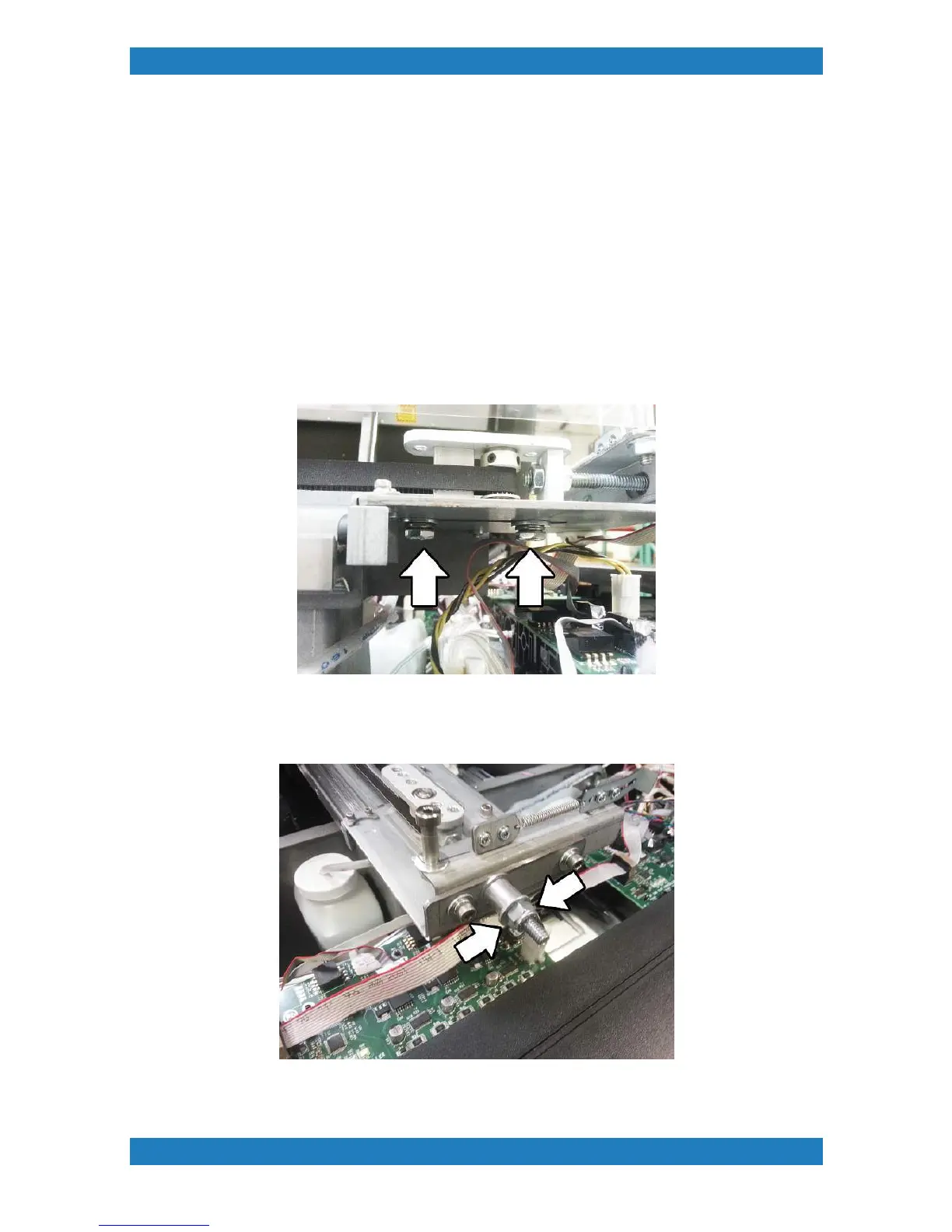

1. Loosen the two hex head bolts using a 7/16 ratchet wrench. The two hex bolts will be located on the far
right underneath the belt pulley. See photo 2.1-1.
Photo 2.1-1
2. You can now adjust the belt tension by tightening or loosening the nut on the threaded rod. Use a 7/16
ratchet wrench to loosen and tighten the belt. See Photo 2.1-2
Photo 2.1-2
3. Once you have adjusted the tension, check the belt using a Gates belt tension meter or equivalent. Below
