3.7 Ink Bay Assemblies
Removing Ink bay cover
Tools needed
o
Phillips Screwdriver
The ink bay cover needs to be removed in order to replace Needle Plate-Pin shift Assembly also knows as
the chip reader assembly or if any of the plastic guides need to be replace.
Remove the 5 phillip screws underneath to remove the top ink bay cover. See photo 3.7.1

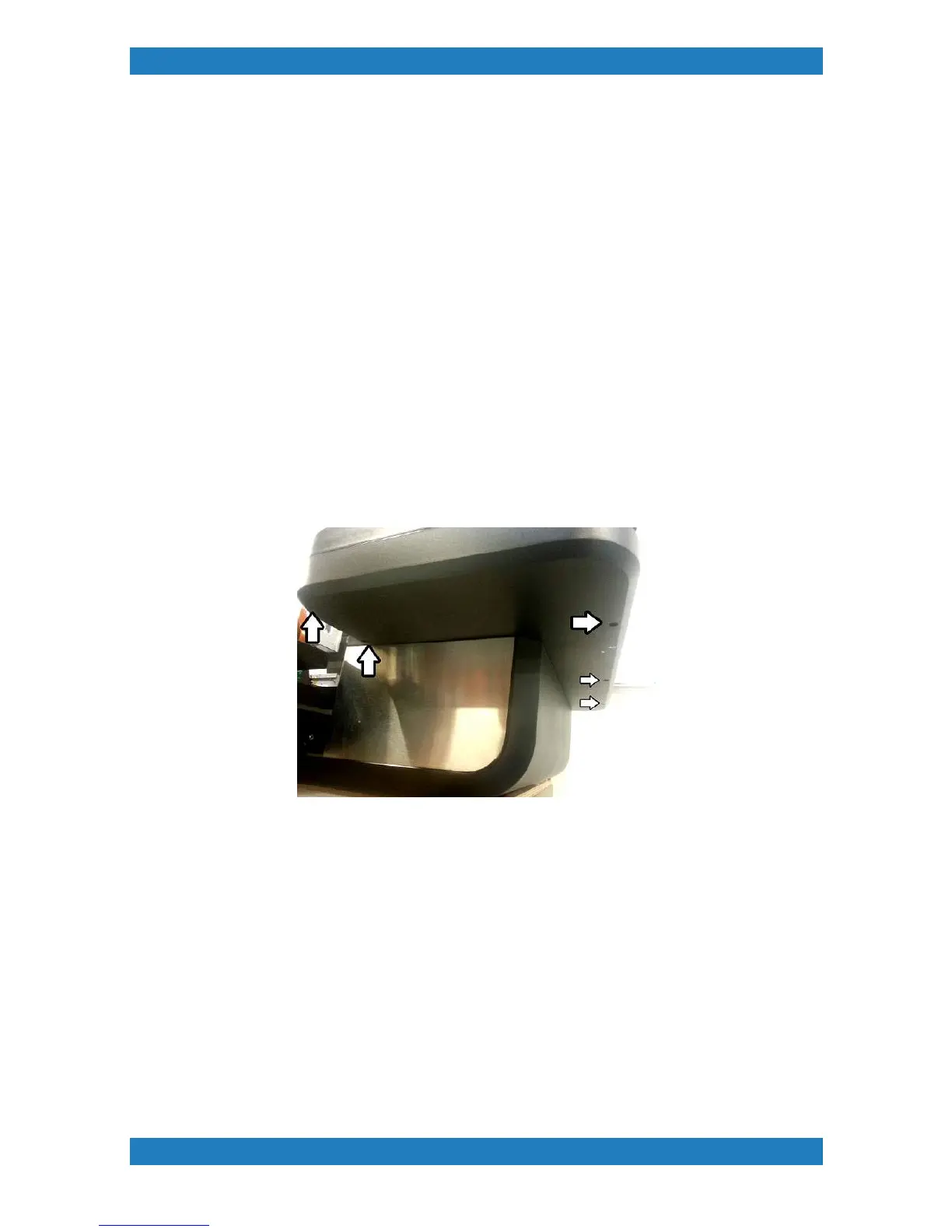

Photo 3.7.1
3.7.1 Needle Plate-Pin Shift Assembly Replacement
Tools Needed
o
Small flat head screwdriver
o
Phillips screwdriver
o
Needle Plate-Pin Shift Assembly (P/N:150479-001)
1. Begin by removing the ink bay cover. See section 3.7.1
2. Remove the 4 screws holding the metal sheet to the bottom cover. See photo 3.7.2
