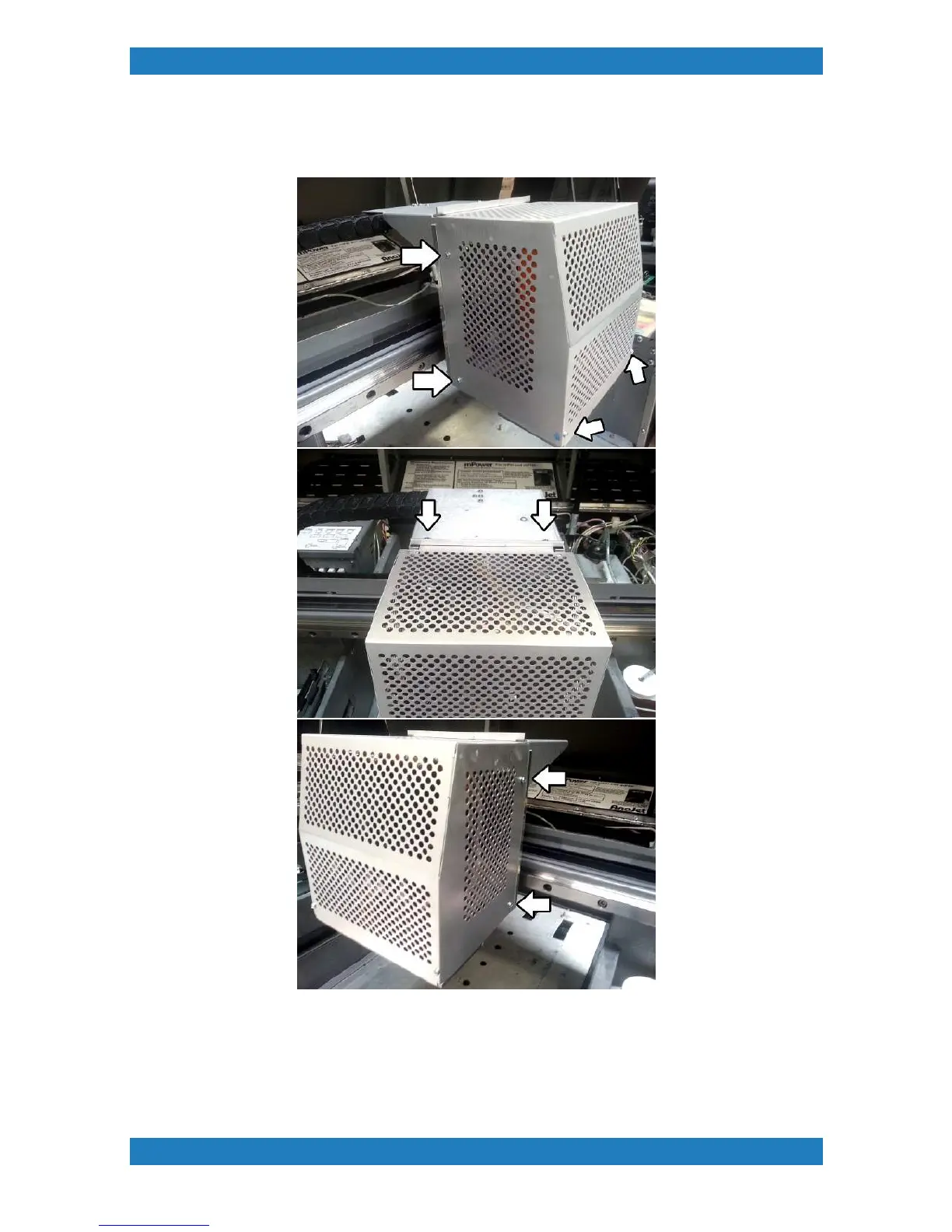

1. Begin by releasing the print head and removing the print head cage. The print head cage will have 8 phillips
screws. See photo 3.1.0
Photo 3.1.0
2. With the cage removed, we can now remove the board retainer in the front. The board retainer will have 2
phillip screws 1 on each side. See photo 3.1.1
