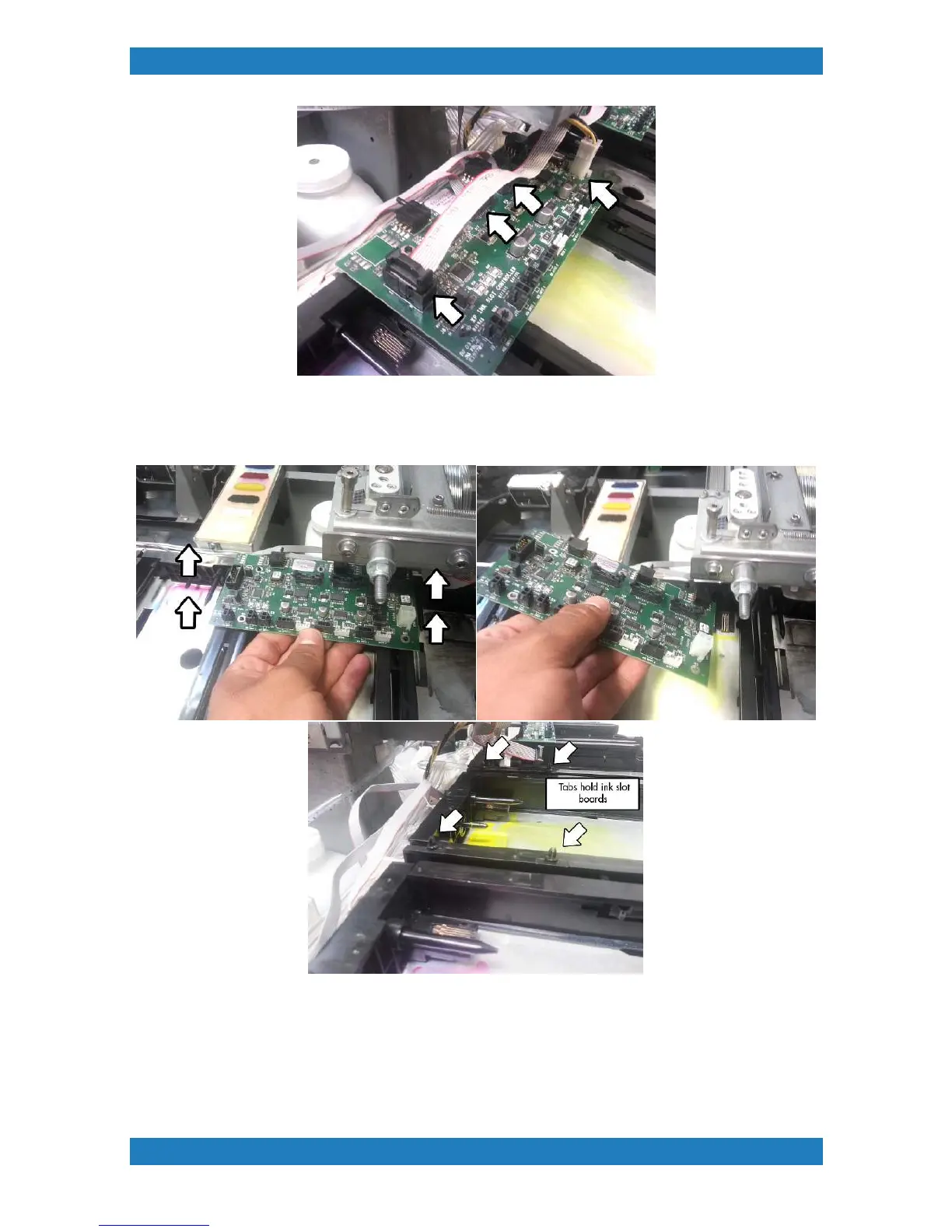

Photo 3.8.1
2. The board is only held by 4 tabs, gently push up on the board to release it. The tabs are located on the
black cartridge slot guides. See photo 3.8.2
Photo 3.8.2
The Back ink slot board will be the same except you will have two pressure tubes connected to them. Use a
small flat head screwdriver to gently push out the tubing
