20

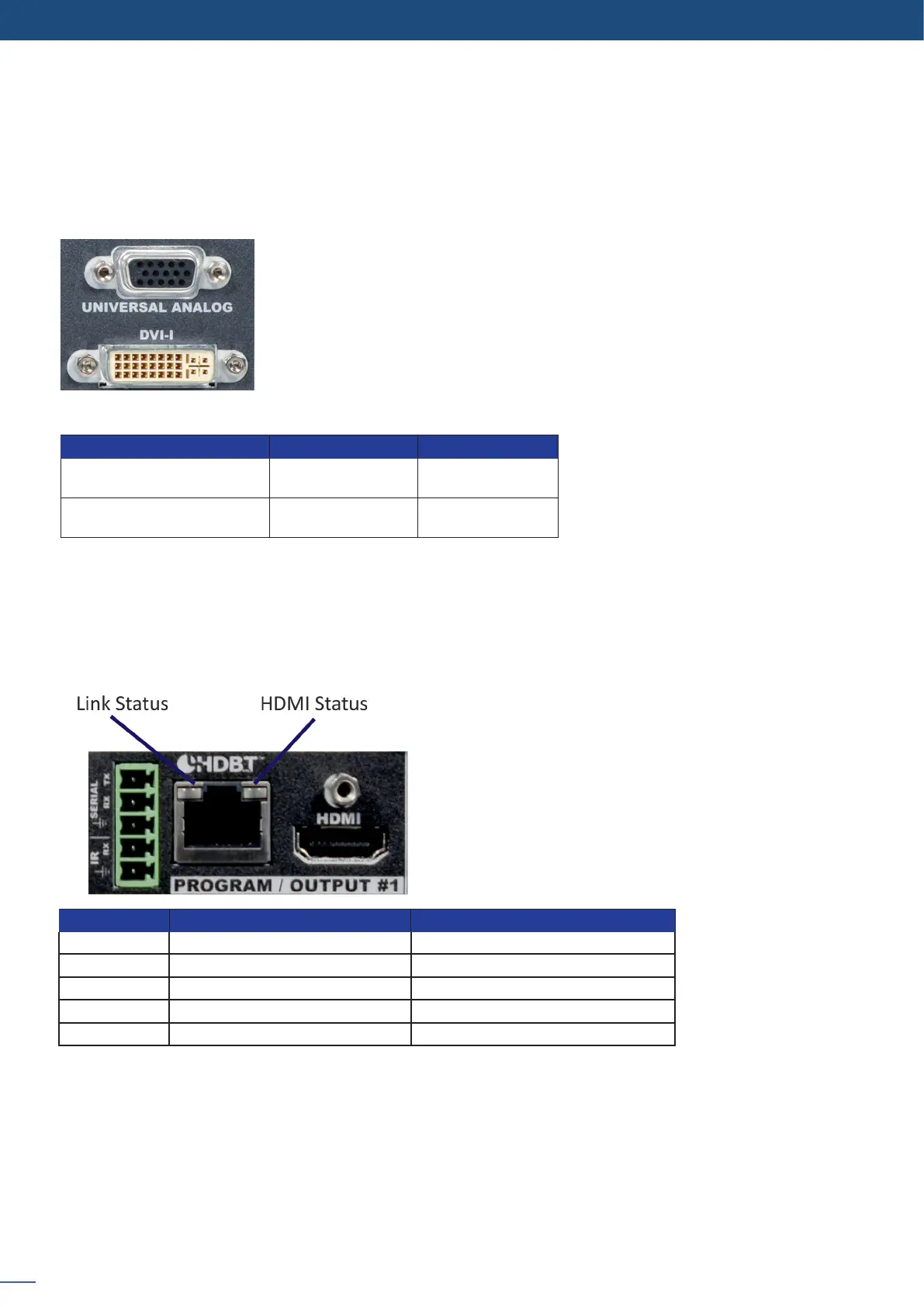

For the reference PLS350 and PLS350-3G, the Pulse² has two standard outputs.
The standard output contains:
- Analog Computer/Video (HD15),
- HDMI output over a DVI-I connector or DVI-I output (DVI-Analog and DVI-Digital).
4.7
VGA
DVI-I
Please see the formats available on the output:
Output Type Signal
Analog Computer
HDTV
Computer
Analog HDTV
Analog Computer
DVI-I Output
HDTV
Computer
Digital HDTV
Digital Computer
For the reference PLS350-H, the Pulse
2
has two standard outputs which are for each output :
- HDMI connector
- HDBaseT connector
The following table indicates the LED status of the HDBaseT output plugs:
Status
LED o No Link No HDMI Video
Low Blink Ethernet Fallback Mode Not Applicable
Medium Blink Low Power Mode without Ethernet HDMI content without HDCP encrypon
Fast Blink Low Power Mode with Ethernet Not Applicable
LED on HDBaseT Link HDMI content with HDCP encrypon
The IR and Serial connectors associated to the HDBaseT connector are described in secon 4.8.4.
4.7 Output specicaons
