Analog way Pulse 2 User Manual

36

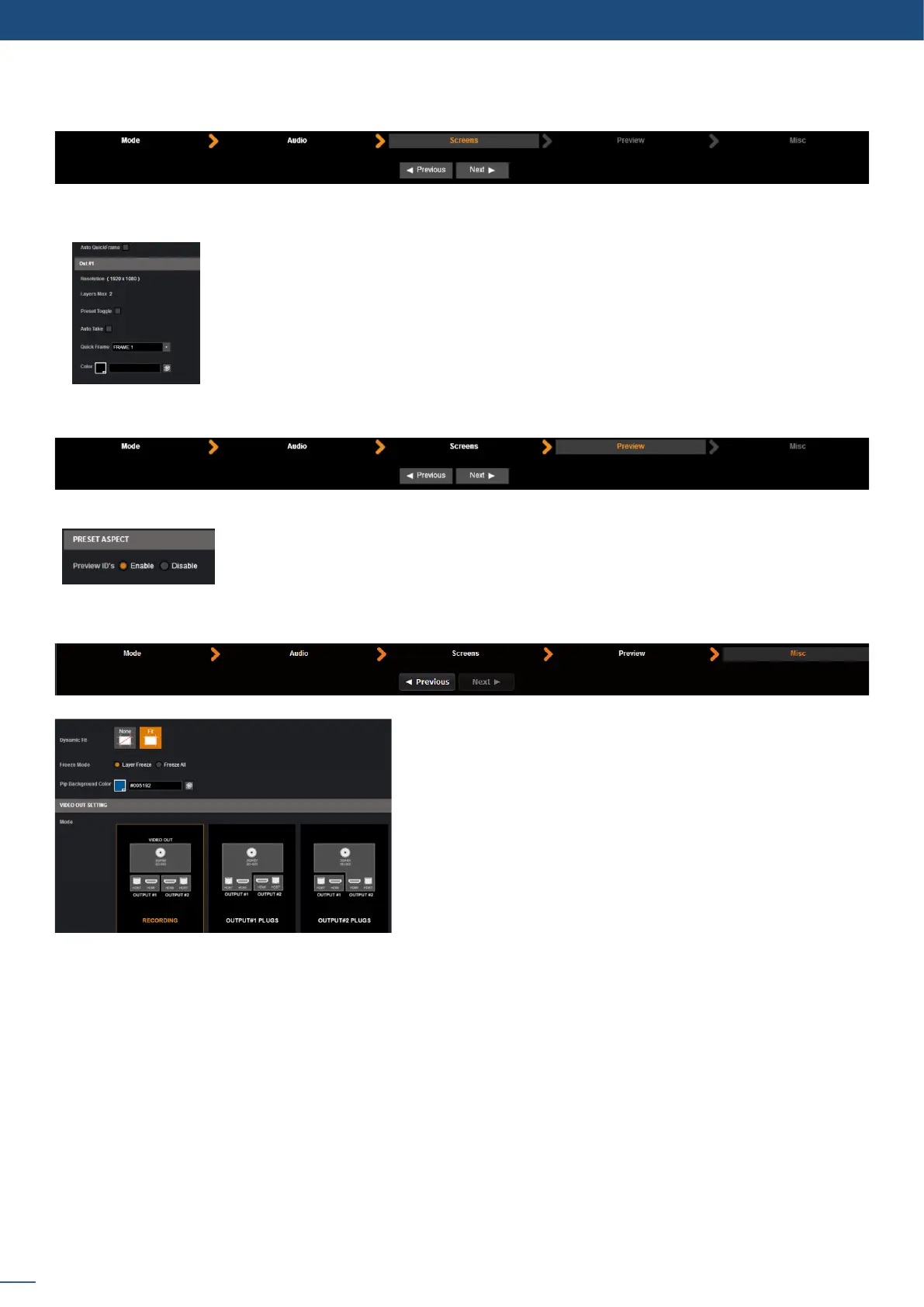

7.2.3 Screens
In the screen conguraon, you will nd the state of your screen. It indicates the screen resoluon, the
maximum number of layers you can use.
You will nd conguraon for the Quick Frame and the background color too.
The Quick Frame will be your emergency frame that can be displayed in front of
every layer. Here, select the frame slot number to be displayed as the Quick Frame.
If you are in Matrix mode, you have 2 screens status.
Into the PREVIEW secon, you have the possibility to enable or not the PREVIEW aspect.
PRESET ASPECT: disabling this opon disable the Preview indicaons on your Preview
monitor, such as the blinking layer wireframe, and source number.
7.2.3 Screens
7.2.4 Preview
7.2.5 Misc - 
In the GENERAL SETTING secon, you have access to:
DYNAMIC FIT: enable or disable the automac recognion of
black band for digital content. The size and the aspect rao of
the layer are automacally adapted.
FREEZE MODE: choose to freeze all inputs or only one input
when you use the freeze funcon.
PIP BACKGROUND COLOR: here you chose the automac
color of PIP background, black is the default color.
In the VIDEO SETTING secon, you have access to:
RECORDING: allow to congure the video output. Conguraon shall be done in secon 7.2.9.
OUTPUT#1 PLUGS: auto congure the video output as a copy of the output #1
OUTPUT#2 PLUGS: auto congure the video output as a copy of the output #2
