Ansul CHECKFIRE 110 User Manual

SECTION 5 – INSTALLATION
PAGE 5-12 REV. 01 2014-MAY-01
CHECKFIRE 110
Detection and Actuation System

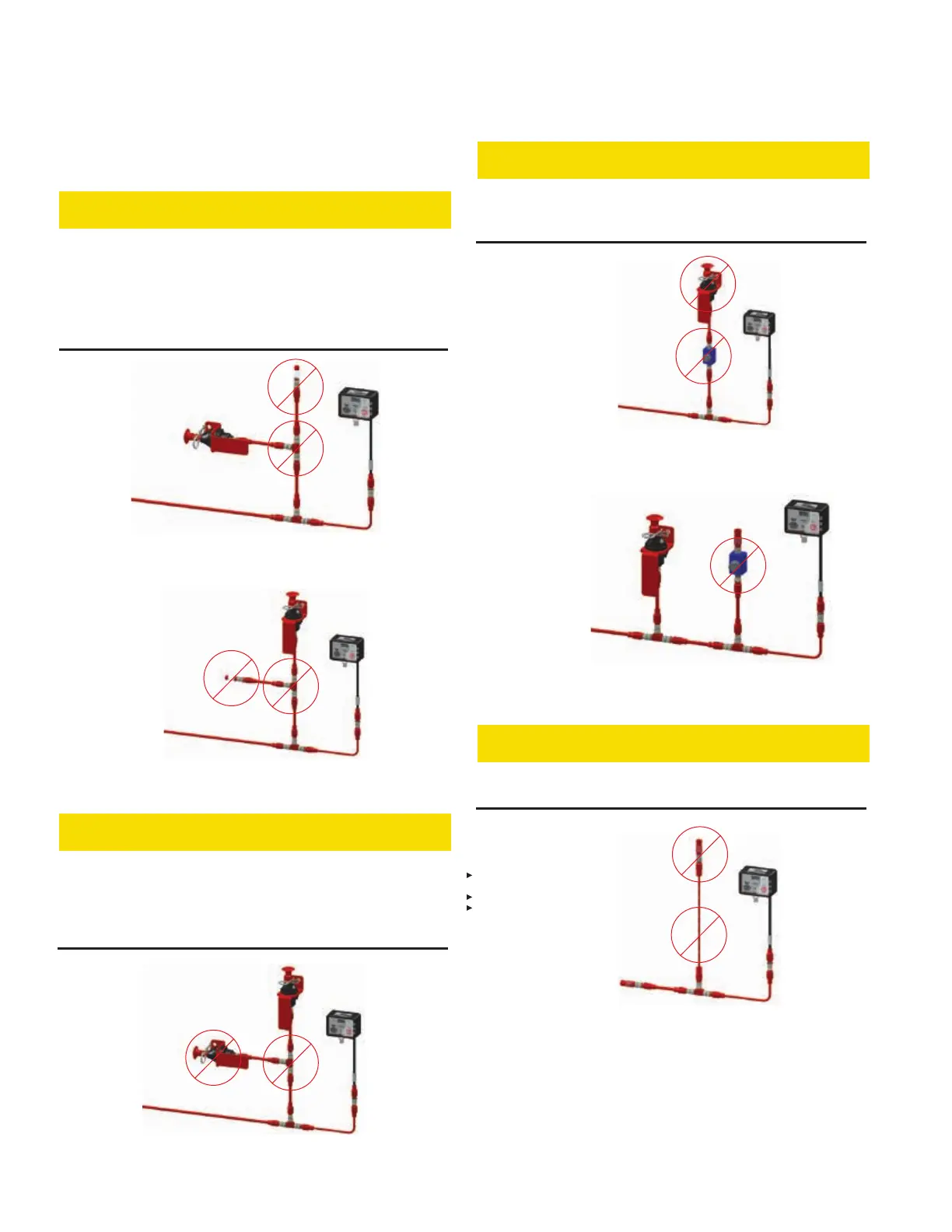

DETECTION CIRCUIT CABLES (Continued)
INCORRECT INSTALLATIONS
CAUTION
Do not use an EOL Device on a branch because complete
detection circuit will not be monitored. (See Figure 5-34 and
5-35).
Double branching is not allowed. (See Figures 5-34 thru
5-36). Failure to comply may cause the system to not function
properly.
FIGURE 5-34
INCORRECT EMA INSTALLATION
009197
FIGURE 5-35
INCORRECT INSTALLATION
009202
CAUTION
Only one EMA may be installed from a detection circuit tee on a
single branch circuit. If multiple EMAs are to be installed, addi-
tional branches on the main trunk will be required (one EMA
per branch). Incorrect installations will cause the system to not
function properly. See Figure 5-36.
FIGURE 5-36
INCORRECT EMA INSTALLATION
009198
CAUTION
Install EMA(s) as the first component(s) on the Detection Circuit
and on a single use branch. Failure to comply may cause the
system to not function properly. (See Figure 5-37 and 5-38).
FIGURE 5-37
INCORRECT EMA INSTALLATION
009199
FIGURE 5-38
INCORRECT EMA INSTALLATION
009200
CAUTION
Do not install the Linear Detector on a branch. (See Figure
5-39).
FIGURE 5-39
INCORRECT INSTALLATION
009201
NO EOL DEVICE
ON BRANCH
NO DOUBLE
BRANCHING
EMA MUST BE
ON SINGLE USE
BRANCH
NO EOL DEVICE
ON BRANCH
NO DOUBLE
BRANCHING
EMA MUST BE
ON SINGLE USE
BRANCH
NO DOUBLE
BRANCHING
EMA MUST
BE FIRST
COMPONENT AND
ON SINGLE USE
BRANCH
EMA MUST BE
FIRST COMPONENT
LINEAR DETECTOR
MUST BE IN THE MAIN
TRUNK, AND END WITH
EOL DEVICE, IF LAST
DEVICE ON MAIN TRUNK
