SECTION 5 – INSTALLATION
2014-APR-30 REV. 0 PAGE 5-17
LABEL PACKAGE
Part No. 440798
Provides reminders for vehicle operators and service personnel
on system operation and protection.
Attach appropriate labels as needed in the specified locations.

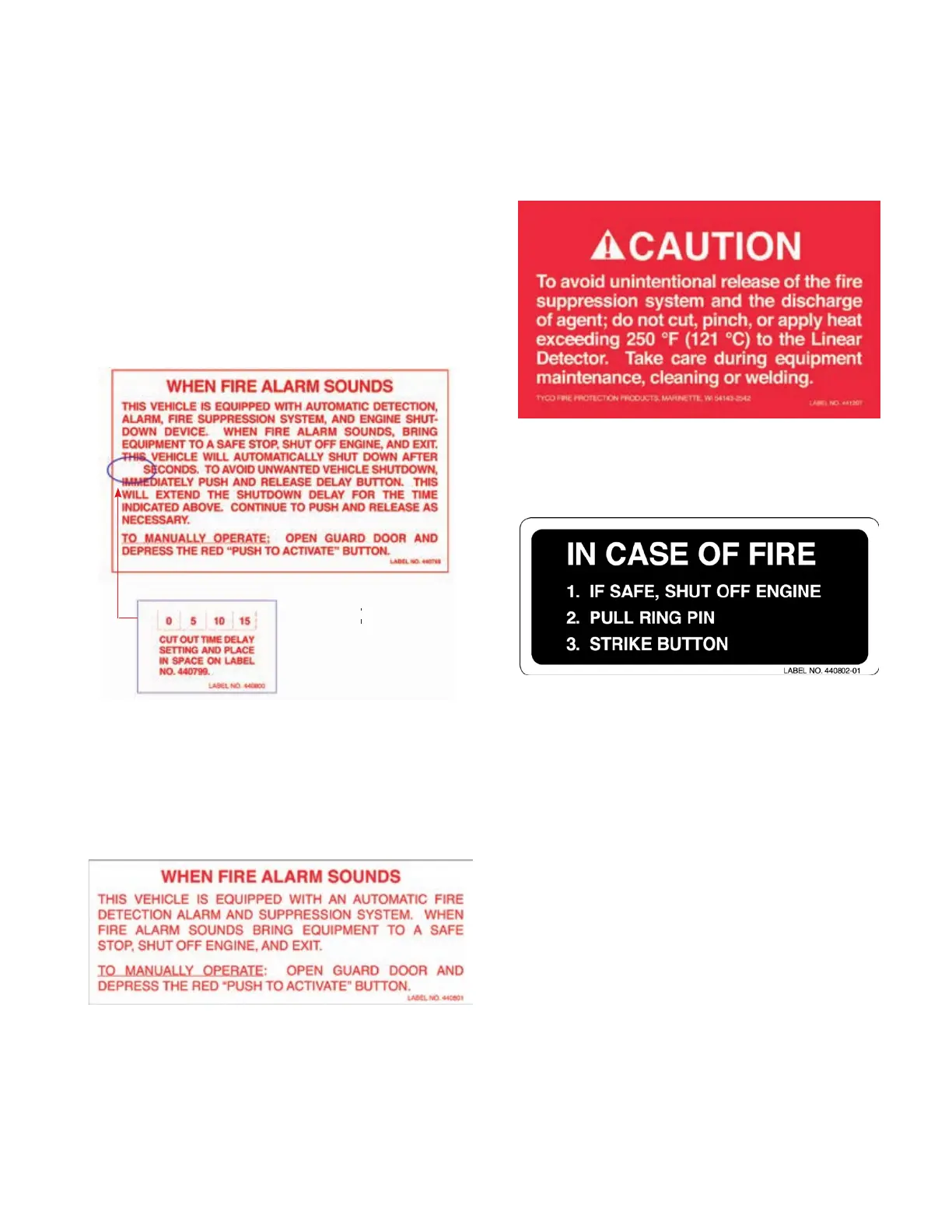

See Figures 5-51 thru 5-54.
If automatic vehicle shutdown is part of the CHECKFIRE
System, install Label No. 440799 near the operator’s line of
vision. Cut out the correct time delay value from Label No.
440800, remove backing to expose adhesive, and attach to
Label 440799 in the space provided. See Figure 5-51.
FIGURE 5-51
LABEL FOR ENGINE SHUTDOWN AND TIME DELAY
009174
If automatic vehicle shutdown is NOT part of the CHECKFIRE
System, install Label No. 440801 near the operator’s line of
vision. See Figure 5-52.
FIGURE 5-52
LABEL TO STOP VEHICLE AND EXIT
009175
As a reminder to service and maintenance personnel, install
this CAUTION (Label No. 71455) in the area protected by the
Linear Detector. See Figure 5-53.
FIGURE 5-53
LABEL FOR PROTECTING LINEAR DETECTOR
009325
Install this label next to every Electric Manual Actuator (EMA).
See Figure 5-54.
FIGURE 5-54
INSTRUCTION LABEL FOR EMA
009324
CHECKFIRE 110
Detection and Actuation System
SELECT CORRECT TIME
DELAY VALUE
AND ATTACH TO
ABOVE LABEL
