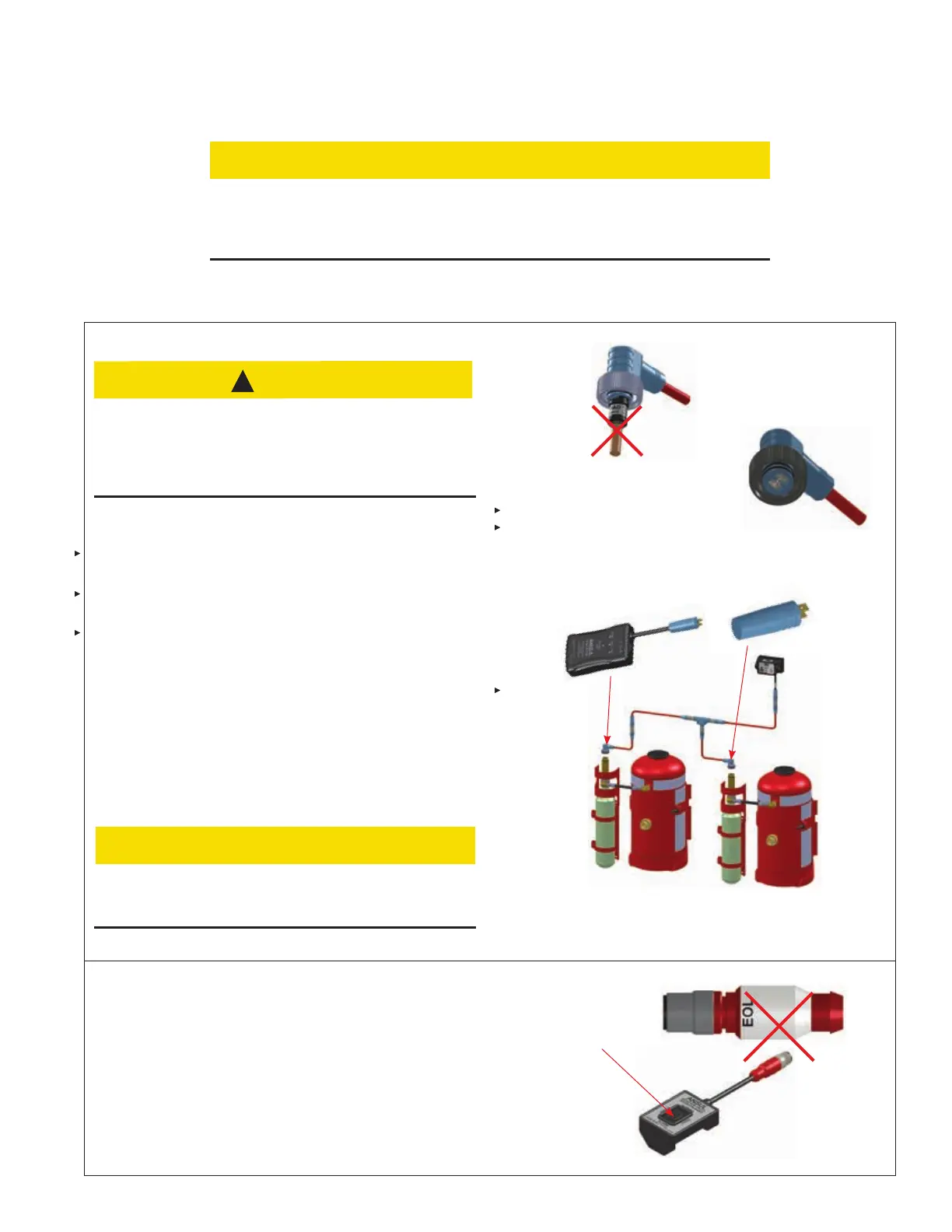

SECTION 6 – TEST AND PLACE IN SERVICE
2014-MAY-01 REV. 01 PAGE 6-1
CAUTION
Before performing any operational test(s), protect the fire suppression system from uninten-
tional actuation. Verify Electric-Pneumatic Actuators are not connected to Release Circuit
Drop Cables and any pneumatic manual actuators are ring-pinned for safety and/or actua-
tion cartridges removed.
The following tables are step-by-step instructions to complete testing and place the system in service.
TABLE 6-1: PREPARATION – OPERATIONAL TEST
CHECKFIRE 110
Detection and Actuation System
Release Circuit
CAUTION
!
When handling the PAD, always point actuating end away
from yourself and others. On electrical initiation, PAD oper-
ates very quickly and a small brass disk forcefully separates
from actuating end. Physical injury may occur from contact
with the actuating pin and/or the detaching disk.
Before conducting the OPERATIONAL TEST, confirm all
installed Release Circuit Drop Cables have a Release Circuit
Tester (RCT) (Part No. 441021) and if needed, a Release
Circuit Test Plug (Part No. 440912) installed.
1. Insert Release Circuit Test Plug in socket of Release
Circuit Drop Cable. (If installed remove PAD.)
2. On last Release Circuit Drop Cable in main trunk insert
RCT. (If installed remove PAD.)
Switch on top of RCT must be turned on for testing. LEDs
on front indicate status: Ready, Pass, Fail, and replace
RCT battery.
After RCT indicates pass or fail, press switch on top to
reset the tester.
Note: If there is a single Electric-Pneumatic Actuator, connect
RCT to Release Circuit Drop Cable. Release Circuit Test
Plug is not installed.
CAUTION
When performing any operational test(s), make certain RCT
and Release Circuit Test Plug(s), as required, are attached to
the release circuit.
IF INSTALLED,
REMOVE PAD(S)
009170
IF USING TWO DROP CABLES,
INSTALL RELEASE CIRCUIT
TEST PLUG IN DROPPED
SECTION OF CABLE
009239
Detection Circuit
Before conducting OPERATIONAL TEST, install the Detec-
tion Circuit Tester (DCT) (Part No. 440097).
1. Remove the Detection Circuit EOL Device from the
detection circuit.
2. Set DCT to “Normal” condition, then install DCT.
INSERT RELEASE
CIRCUIT TEST
PLUG IN
DROPPED SECTION
OF CIRCUIT
009225
009289
009288
INSERT RCT INTO LAST
RELEASE CIRCUIT DROP
CABLE
REMOVE DETECTION
CIRCUIT EOL DEVICE
SET DCT TO
“NORMAL”
AND INSTALL
009161
009287
