SECTION 6 – TEST AND PLACE IN SERVICE
PAGE 6-14 REV. 0 2014-APR-30
CHECKFIRE 110
Detection and Actuation System

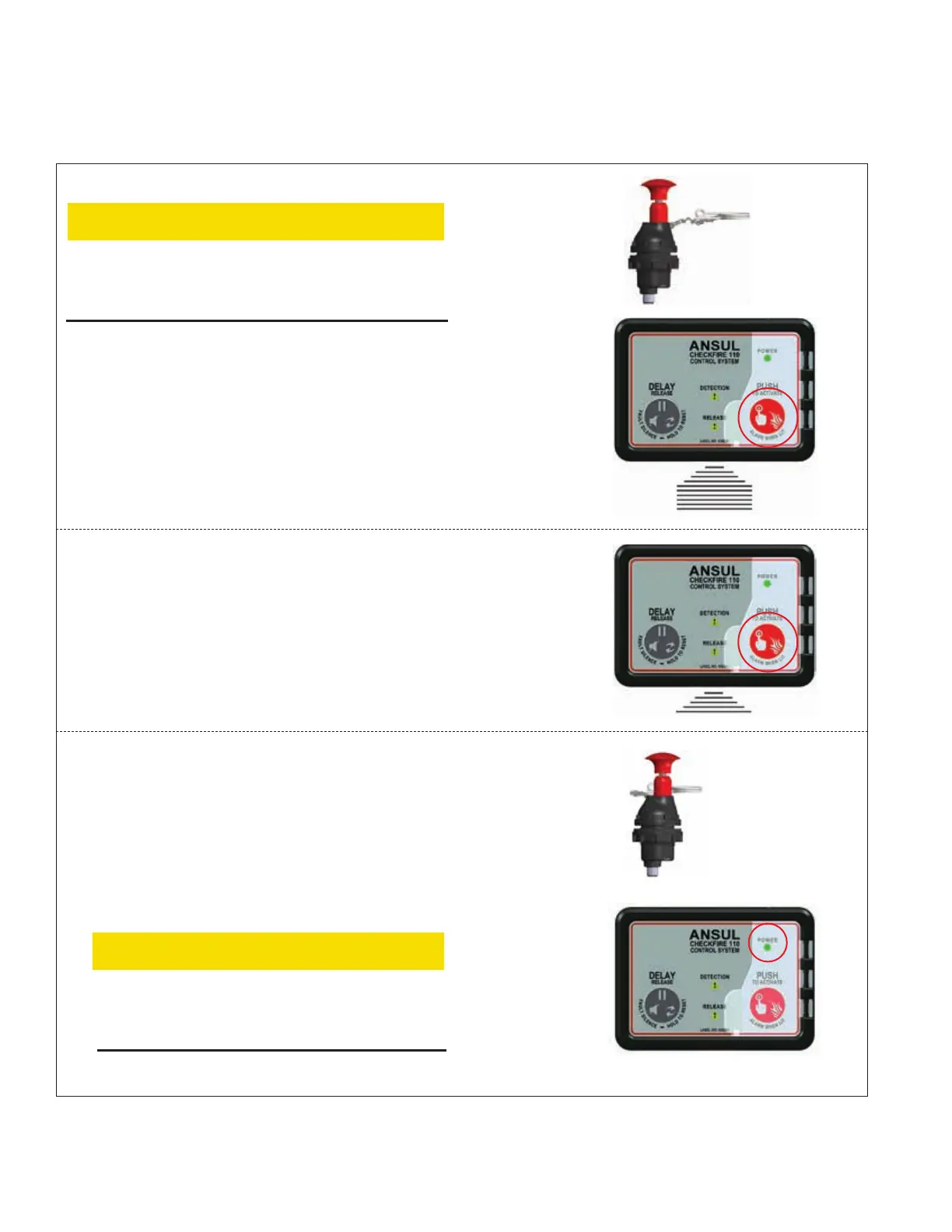

Electric Manual Actuator (EMA) Test
CAUTION
If the system includes Pneumatic Manual Actuator(s), DO
NOT TEST these components. The actuators also have ring
pins and red strike buttons. Actuation can cause fire suppres-
sion system release.
1. Pull ring pin and strike red button to manually operate
EMA.
Note: There is no time delay upon manual activation.
2. Release Activated
When Lit” RED LED and Sounder are steady-on for 10
seconds.
3. Post Release Activated
Alarm When Lit” LED and Sounder pulse 1 x 10 seconds.
4. Reset EMA by pulling red strike button up to set position,
re-install ring pin. Do not reseal at this time.
5. Reset RCT.
6. Reset control module to Normal: Press and hold the
“DELAY/Reset/Silence” button for 3 seconds; Power LED
and Sounder quickly pulse 3 or 5 times, then Power LED
remains GREEN steady-on.
7. Repeat Test for each remaining EMA following above
steps.
CAUTION
If the system includes Pneumatic Manual Actuator(s), DO
NOT TEST these components. The actuators also have
ring pins and red strike buttons. Actuation can cause fire
suppression system release.
TABLE 6-4: OPERATIONAL TEST (Continued)
009180b
RED LED AND
SOUNDER PULSE
1 X 10 SECONDS
POST RELEASE
ACTIVATED
CONTINUES UNTIL
MODULE IS RESET
009180
RETURN TO NORMAL
STATUS
RESET RCT, AND
MODULE
POWER LED IS
GREEN STEADY-ON
009180d
009140
PULL RING PIN
AND STRIKE RED
BUTTON
10 SECOND
RELEASE STARTS
IMMEDIATELY
RED LED AND
SOUNDER REMAIN
STEADY-ON FOR
10 SECONDS
009217
RESET EMA:
PULL RED BUTTON
UP, INSERT RING PIN
To Next Page
