SECTION 10 – APPENDIX
PAGE 10-2 REV. 0 2014-APR-30
CHECKFIRE 110
Detection and Actuation System

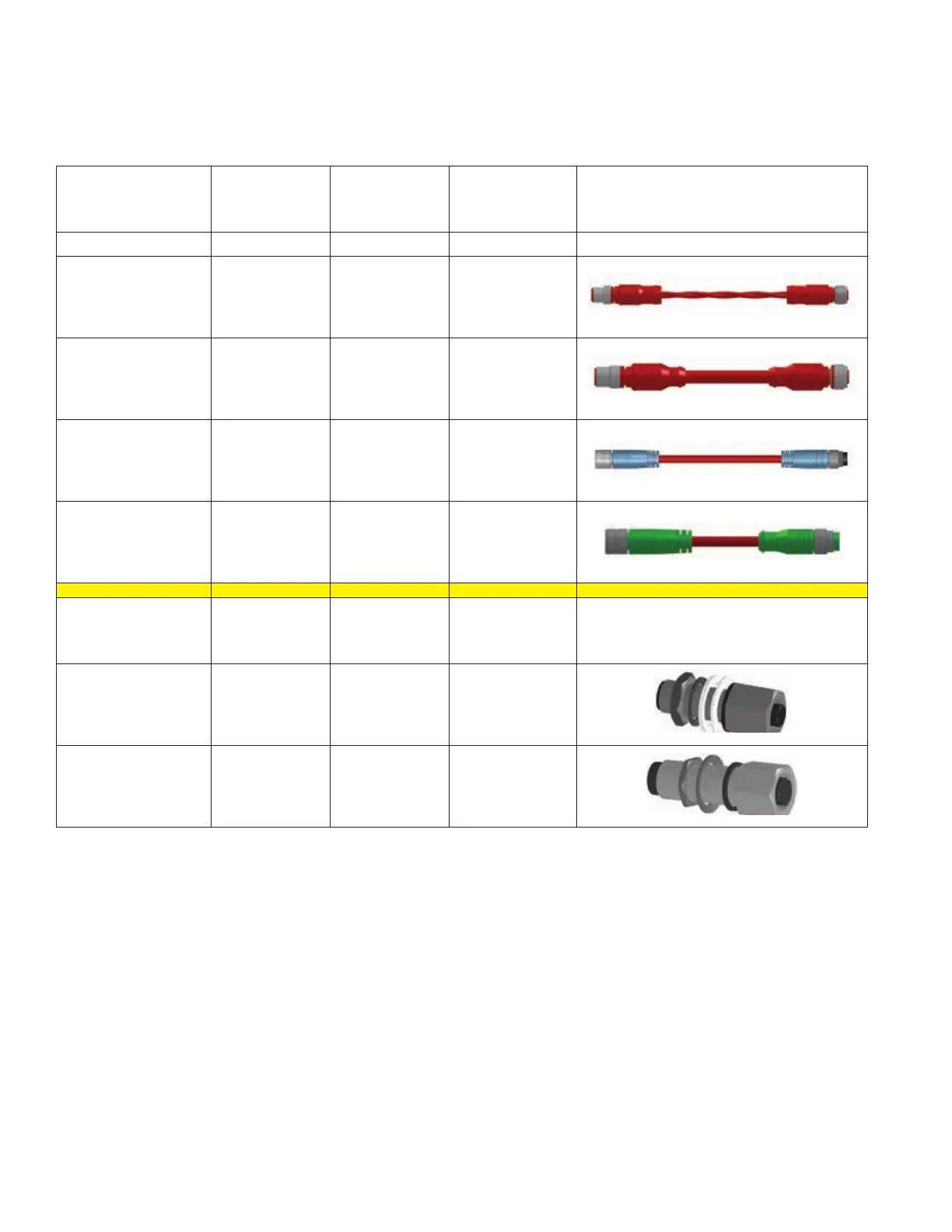

CABLE AND BULKHEAD DIMENSIONS
Cable Type
Largest
Diameter
on Connector
Cable Diameter
Hole Size to
Pass Connector
Through
Images
in. (mm) in. (mm) in. (mm)
Linear Detector 0.64 (16.3) 0.130 (3.30)
0.172 (4.37)
11/16 (17.5)
Detection Circuit
Cable
0.64 (16.3) 0.300 (7.62) 11/16 (17.5)
Release Circuit Cable 0.75 (19.1) 0.300 (7.62) 3/4 (19.1)
Power Circuit Cable 0.75 (19.1) 0.300 (7.62) 3/4 (19.1)
Bulkhead Type
Maximum
Panel
Thickness
Overall
Bulkhead
Length
Panel Mounting
Hole Size
Images
Detection Circuit
Bulkhead Connector
(Includes Linear
Detector)
3/8 (9.5) 1 7/8 (47.6) 5/8 (15.9)
Release & Power
Circuit Bulkhead
Connector
1 (25) 2 7/16 (61.9) 21/32 (16.7)
009157
009158
009163
009172
009159
009166
