SECTION 6 – TEST AND PLACE IN SERVICE
PAGE 6-8 REV. 0 2014-APR-30
CHECKFIRE 110
Detection and Actuation System

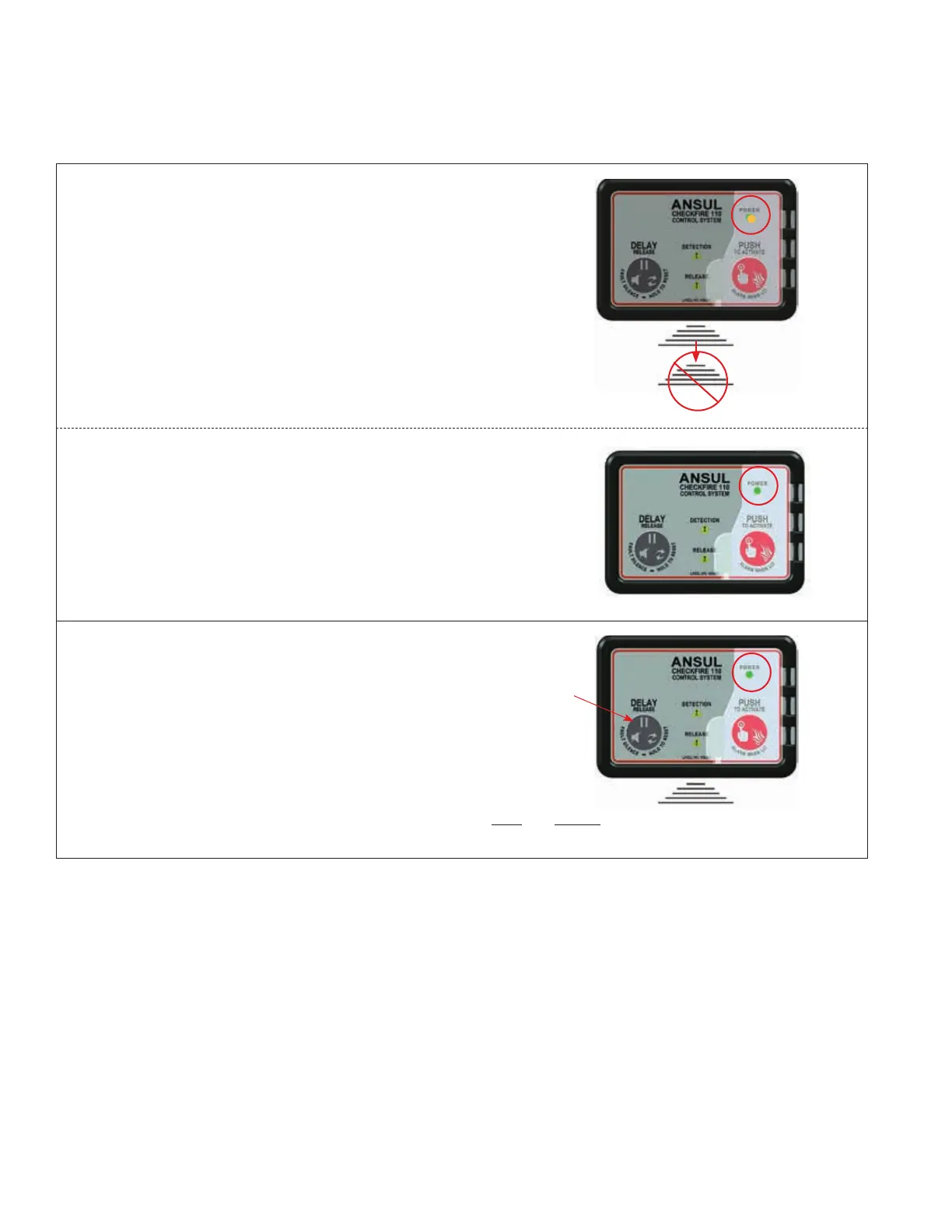

TABLE 6-4: OPERATIONAL TEST (Continued)
Internal Power Circuit – Supervision Test
Disconnect the external power circuit connection at the
CHECKFIRE 110 Power Circuit Lead.
1. Power LED pulses AMBER 1 x 30 seconds.
2. Sounder pulses 1 x 30 seconds for 10 minutes then
auto-silences to conserve energy.
3. Repeat supervision tests on internal power:
4. Reconnect external power circuit connection at the
Power Circuit Lead. The CHECKFIRE 110 Control
Module returns to Normal status; Power LED is GREEN
steady-on. (may take up to 10 seconds)
Verify Time Delay
Reset control module to Normal: Press and hold the “DELAY/
Reset/Silence” button for 3 seconds; Power LED and
Sounder quickly pulse 3 or 5 times, then Power LED remains
GREEN steady-on.
The number of pulses at end of reset indicates length of time
delay.
009180
REPEAT ABOVE
TESTS ON INTERNAL
POWER
RECONNECT
EXTERNAL POWER
AND MODULE
RETURNS TO
NORMAL STATUS
POWER LED IS
GREEN STEADY-ON
009180b
VERIFY TIME
DELAY SETTING
PRESS AND
HOLD 3 SECONDS
POWER LED
IS GREEN
STEADY-ON
TIME DELAY
SETTING INDICATION:
LED AND TIME
SOUNDER DELAY
PULSE SECONDS
3 5
5 15
009180c
POWER SUPERVISION
(REMOVE POWER
CABLE)
AMBER LED AND
SOUNDER PULSE
1 X 30 SECONDS
AFTER 10 MINUTES
SOUNDER
AUTO-SILENCES
To Next Page
