SECTION 6 – TEST AND PLACE IN SERVICE
PAGE 6-2 REV. 0 2014-APR-30

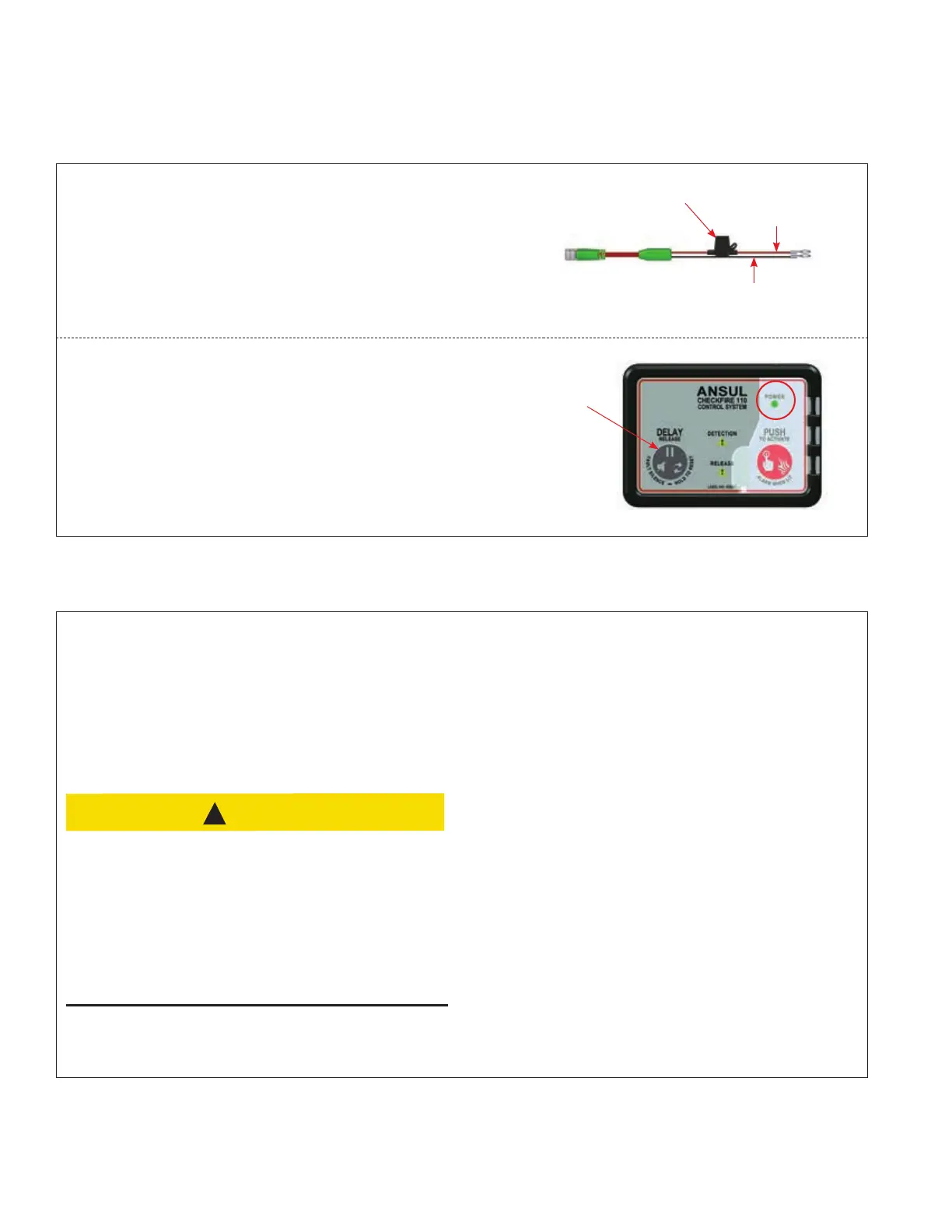

TABLE 6-1: PREPARATION – OPERATIONAL TEST (Continued)
CHECKFIRE 110
Detection and Actuation System
Power Up
Before conducting the OPERATIONAL TEST, make certain
external power is properly connected to CHECKFIRE 110
Control Module (see Section 5 - Installation, page 5-14).
Installation, page 5-14 (step 5).
Reset to Normal: Press and hold the “DELAY/Reset/Silence”
button for 3 seconds; Power LED and Sounder quickly pulse
3 or 5 times, then Power LED remains GREEN steady-on.
Note: On reset the electronics perform a Self Diagnostic
Routine (SDR) and LED test. The LED and Sounder indicate
the end of the test and pulse according to the Release Time
Delay setting. (3 = factory default, 5 = optional setting).
TABLE 6-2: ISOLATION FEATURE
The CHECKFIRE 110 Control Module includes an Isolation
Feature for vehicle/equipment service personnel to help
minimize the possibility of a false fire suppression system
discharge when service or maintenance takes place on the
protected vehicle/equipment (not intended for CHECKFIRE
110 System maintenance).
The control module must be in Isolate Mode to change the
Release Time Delay setting. Refer to Table 3 - Programming
the Release Time Delay.
CAUTION
!
When placed in Isolate Mode, the Release Circuit cannot be
initiated by an automatic detection circuit input.
In the event of fire, manual actuation bypasses Isolate Mode.
To operate manually:
Or
pneumatic manual actuator
Continues Next Page
RED TO POSITIVE (+)
BATTERY POST
BATTERY POST
INLINE FUSE
HOLDER
CONFIRM
CONNECTIONS
FOLLOW SECTION 5 – INSTALLATION
INSTRUCTIONS TO INSTALL FUSE
009173
009180
RESET TO NORMAL
PRESS AND
HOLD 3
SECONDS
POWER LED
IS GREEN
STEADY-ON
To Next Page
