SECTION 6 – TEST AND PLACE IN SERVICE
2014-APR-30 REV. 0 PAGE 6-11
CHECKFIRE 110
Detection and Actuation System
TABLE 6-4: OPERATIONAL TEST (Continued)

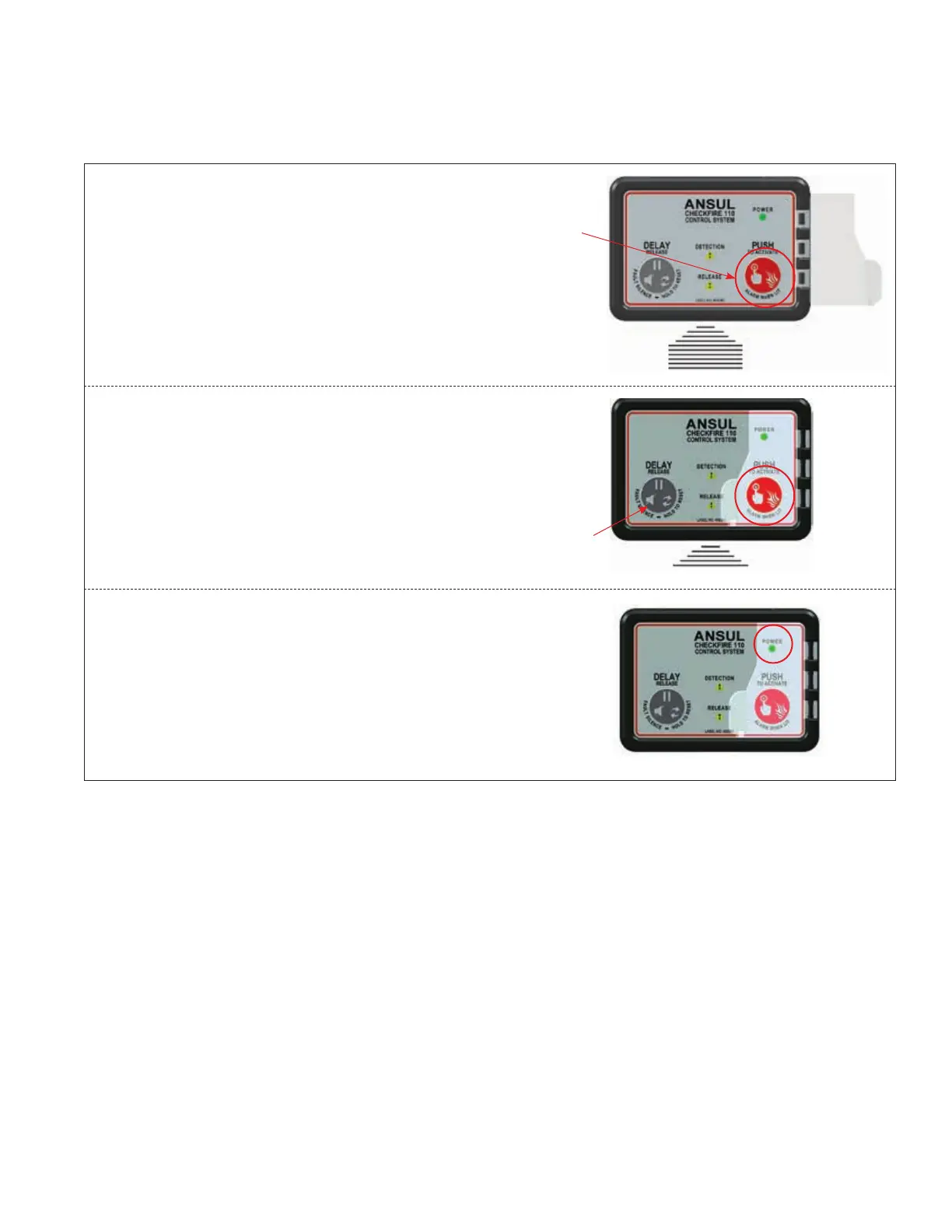

Manual Activation Release Circuit Test
1. Open the protective guard door and push the “PUSH
to Activate / Alarm When Lit” button. Release Activated
starts immediately.
Note: There is no time delay upon manual activation.
2. Release Activated
When Lit” RED LED and Sounder are steady-on for 10
seconds.
3. Post Release Activated
Alarm When Lit” LED and Sounder pulse 1 x 10 seconds.
4. Push the “DELAY/Reset/Silence” button to test Sounder
silence.
5. The LED continues to pulse 1 x 10 seconds.
6. Confirm successful release signal on RCT.
7. Reset RCT.
8. Reset control module to Normal: Press and hold the
“DELAY/Reset/Silence” button for 3 seconds; Power LED
and Sounder quickly pulse 3 or 5 times, then Power LED
remains GREEN steady-on.
009180b
POST RELEASE
ACTIVATED
CONTINUES UNTIL
MODULE IS RESET
RED LED AND
SOUNDER PULSE
1 X 10 SECONDS
PUSH TO SILENCE
SOUNDER (LEDs
CONTINUE)
009180
RETURN TO
NORMAL STATUS
RESET RCT, AND
CONTROL MODULE
POWER LED IS
GREEN STEADY-ON
MANUAL
ACTIVATION
OPEN GUARD DOOR
AND PUSH RED
BUTTON
10 SECOND
RELEASE STARTS
IMMEDIATELY
RED LED AND
SOUNDER REMAIN
STEADY-ON FOR
10 SECONDS
009241
To Next Page
