SECTION 6 – TEST AND PLACE IN SERVICE
PAGE 6-18 REV. 0 2014-APR-30
CHECKFIRE 110
Detection and Actuation System
TABLE 6-7: PLACING CHECKFIRE 110 CONTROL MODULE IN SERVICE (Continued)
9. If needed complete installation of optional pneumatic
10. Re-install pneumatic manual actuator cartridge(s) if previ-
ously removed.
11. Reset control module to Normal: Press and hold the
“DELAY/Reset/Silence” button for 3 seconds; Power LED
and Sounder quickly pulse 3 or 5 times, then Power LED
remains GREEN steady-on.
12. Record results of testing.

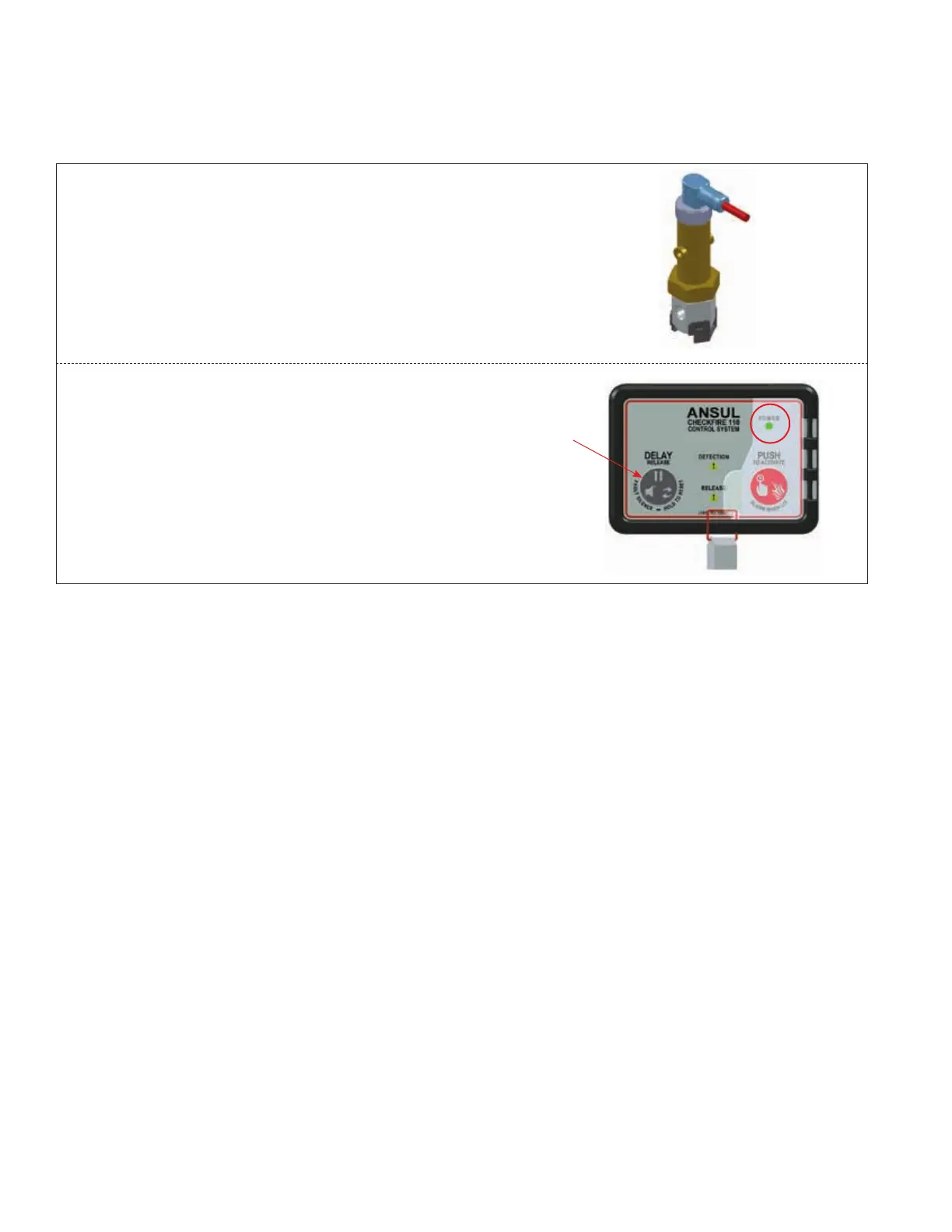

009171
ELECTRONIC ACTUATION
INSTALLATION COMPLETE
IF REMOVED, RE-INSTALL
MANUAL ACTUATOR
CARTRIDGE(S)
009151
RESET TO
NORMAL
PRESS AND
HOLD
3 SECONDS
POWER LED
IS GREEN
STEADY-ON
