Apogee Symphony Desktop User’s Guide

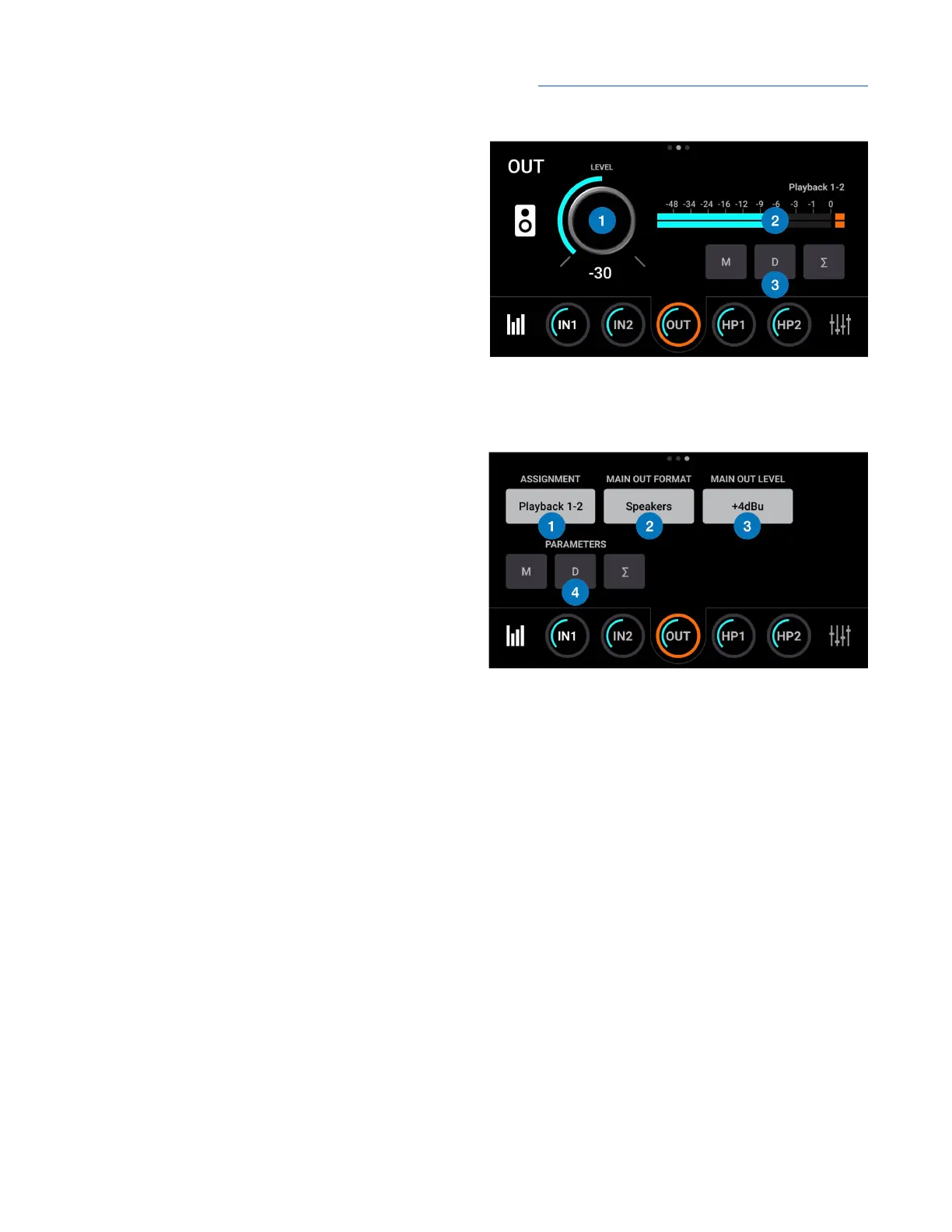

Main Out Overview
1. Level - set the level of Main outputs 1-2;
2. Source Meter - displays the digital level of the
Main output source, before D/A conversion;
3. Main Out parameters:
● Mute - mute the Main outputs 1-2.
● Dim - dim (reduce) the Main output 1-2
level by 15 dB.
● Sum to Mono - sum to mono the Main
outputs.
Main Out Settings
1. Assignment - choose the signal source for
Main outputs 1-2;
● SW Playback - route the selected stereo
Playback signal from audio software to
the Main output.
● Direct Mixers - route the stereo signal
from the selected mixer to the Main
output.
● HW:Inputs - route the selected mono or
stereo signal from the selected hardware
input(s) to the Main output.
2. Main Out Format - set the Main output format;
● Variable - use the Control knob or software volume controls to modify the Main output level.
● Fixed - the Main output level is fixed at the selected reference level.
3. Main Out Level - set the Main output reference level:
● +4dBu - set the reference level to +4 dBu when connecting to professional gear.
● -10 dBV - set the reference level to -10 dBV when connecting to consumer gear.
4. Main Out parameters:
● Mute - mute the Main outputs 1-2.
● Dim - dim (reduce) the Main output 1-2 level by 15 dB.
● Sum to Mono - sum to mono the Main outputs.
27
