INSTRUMENT PANEL
pos. Description Type Quantity Torque Notes
1 Screws used to fasten the rubber
blocks to the instrument panel
SWP 4.9 3 3 Nm (2.21 lb ft) -
2 Instrument panel support shell fas-
tening screws
SWP 4.9 5 2 Nm (1.48 lb ft) -
3 Screws used to fasten the instrument
panel support to the chassis
M6 4 8 Nm (5.90 lb ft) -
4 CLF control unit fastening screws SWP 3.9x10 2 1.5 - 2 Nm (1.10 - 1.4 lb
ft)
-
5 Voltage regulator fixing screw M6 1 8 Nm (5.90 lb ft) -

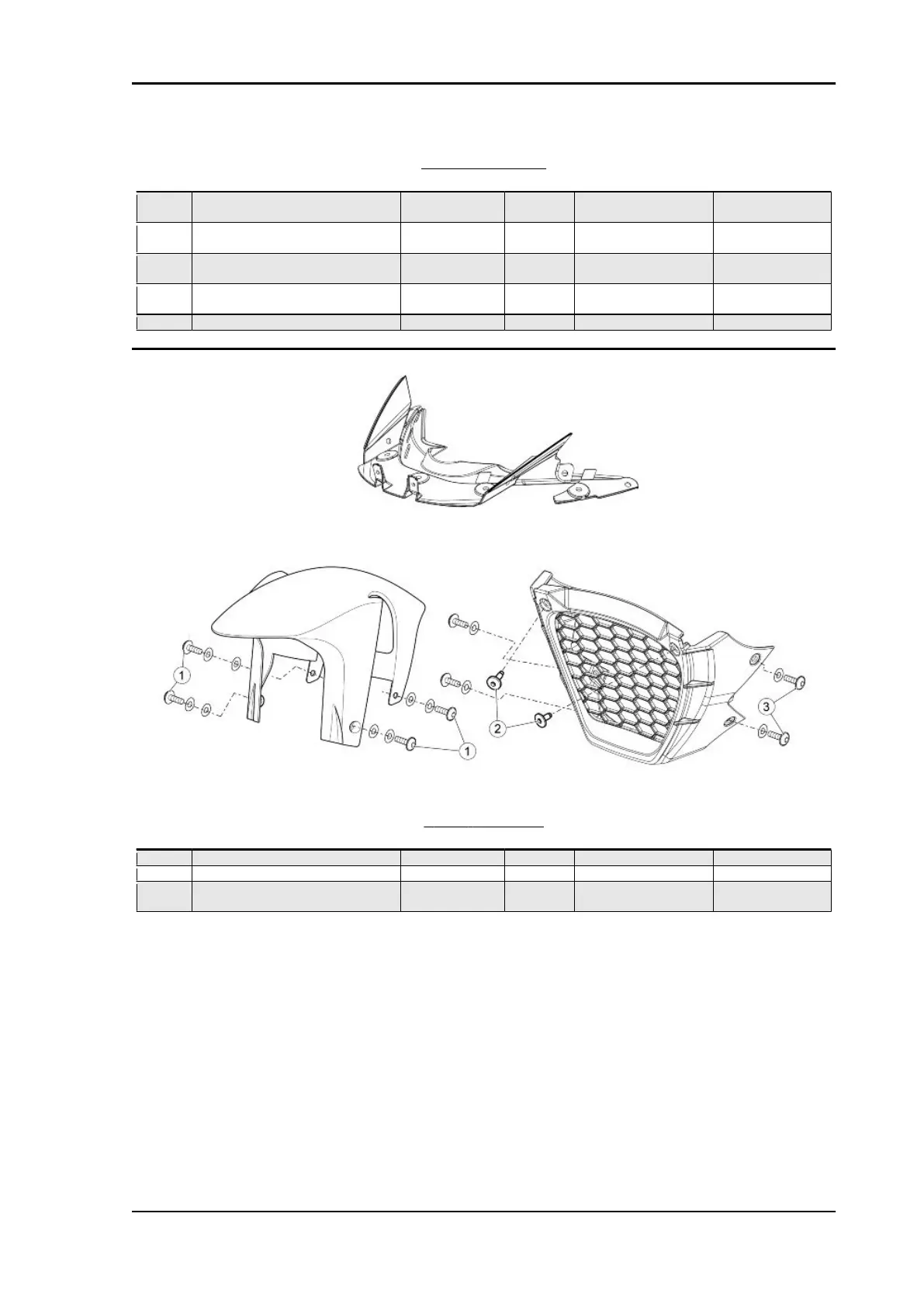

FRONT MUDGUARD
pos. Description Type Quantity Torque Notes
1 Front mudguard fixing screws M5 4 4 Nm (2.95 lbf ft) -
2 Engine fairing fastening screw M5 2 4 Nm (2.95 lb ft) -
3 Screws fastening the lower fairing to
the lug
M5 2+2 4 Nm (2.95 lb ft) -
